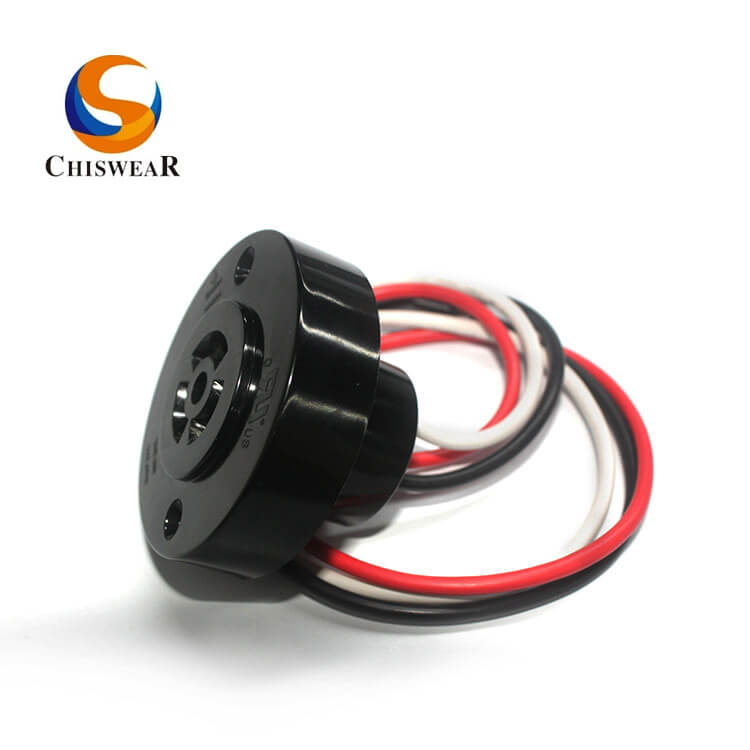

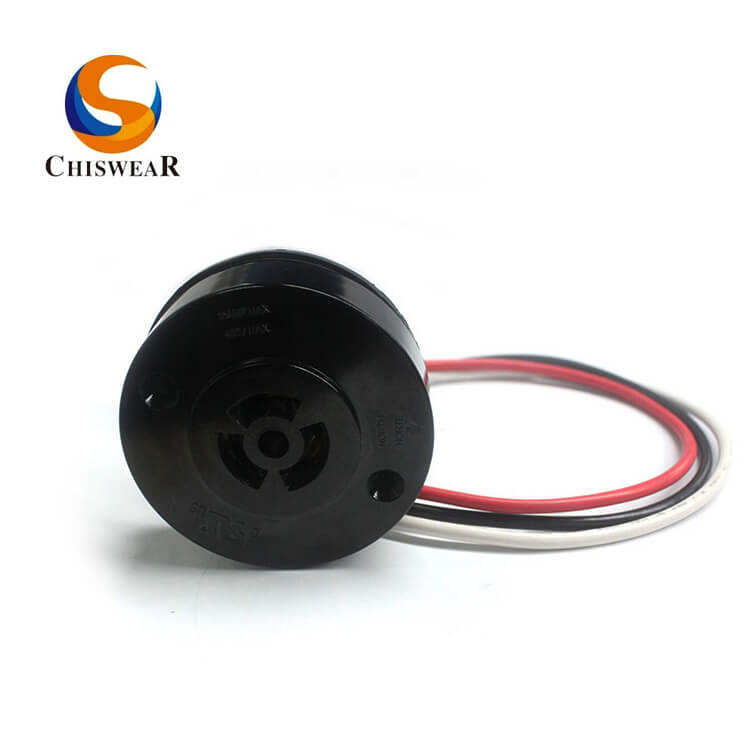

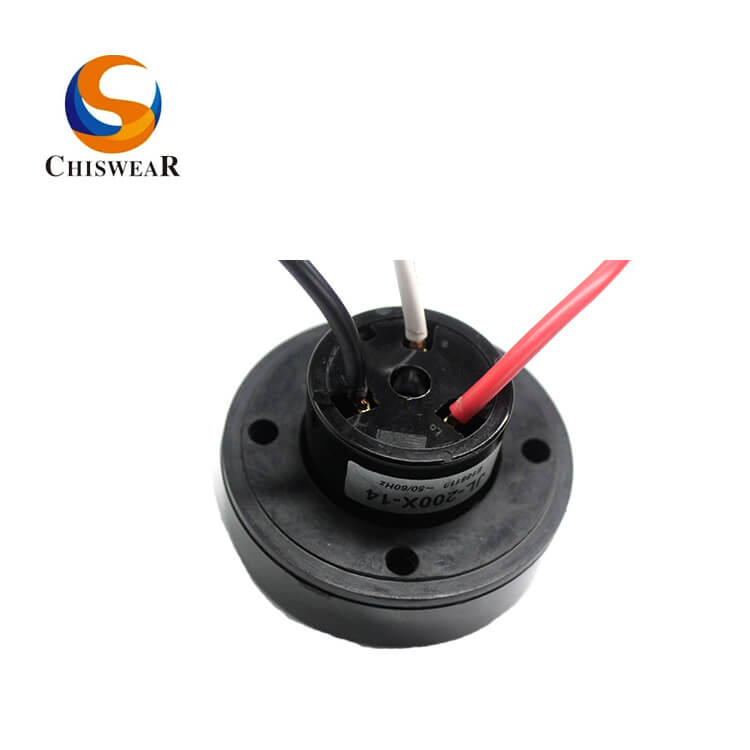

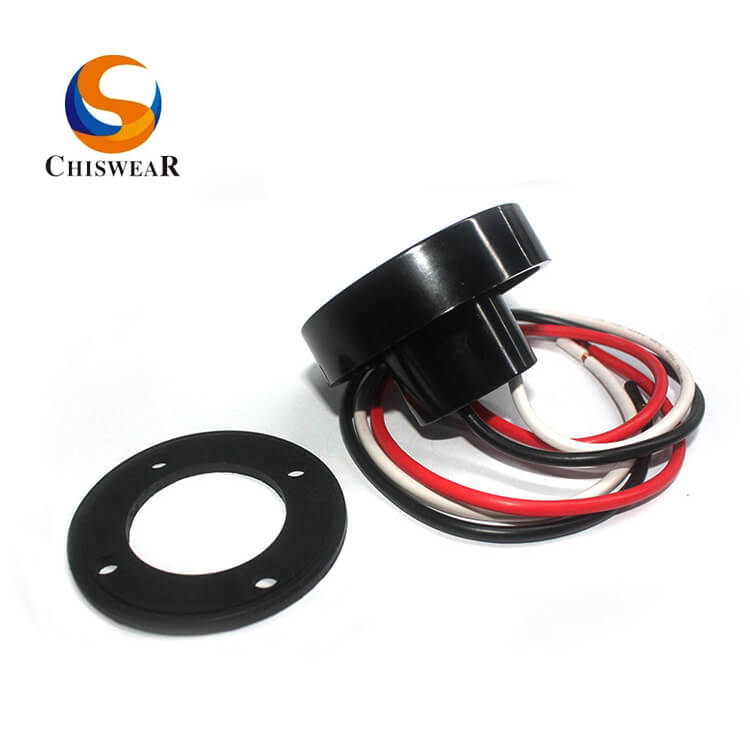

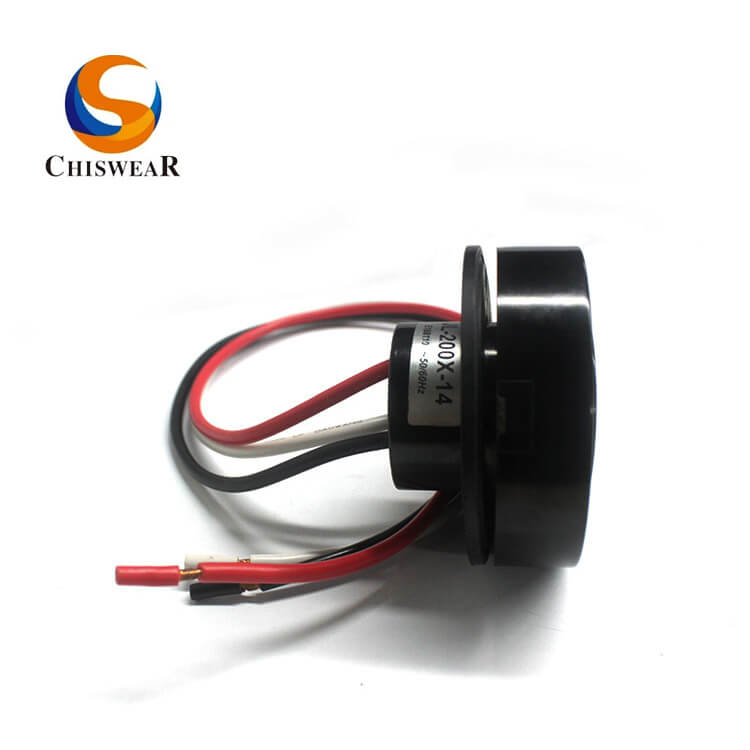

Twist lock 3 PIN Photocontrol Receptacle JL-200X

Short Description:

1. Product Model: JL-200X
2. Rated Voltage: 0-480 VAC
3. Material: Phenolic socket
4. Contact Material: Copper nickel plated
5. Compliant Standard: CE, ROHS, UL


Product Detail

video

Product Specification

Available Fitting

Get Detailed Prices

Product Tags

The Model JL-200X receptacles match with Twist lock Photocell sensors to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.

Feature
1. Designed for the lanterns those without an ANSI C136.10-1996 receptacle equipped to fit a twist-lock photocell sensor.
2. JL-200X has been recognized by UL to applicable US and Canadian safety standards, under their file E188110, Vol.1 & Vol.2.


  • Previous:
  • Next:

  • Product Model JL-200X JL-200Z
    Applicable Volt Range 0~480VAC
    Rated Frequency 50/60Hz
    Suggested Loading AWG#18: 10Amp; AWG#14: 15Amp
    Ambient Temperature -40℃ ~ +70℃
    Related Humidity 99%
    Overall Dimensions (mm) 65Dia.x38.5 65Dia.x65
    Leads 6” Min.
    Weight Approx. 80g

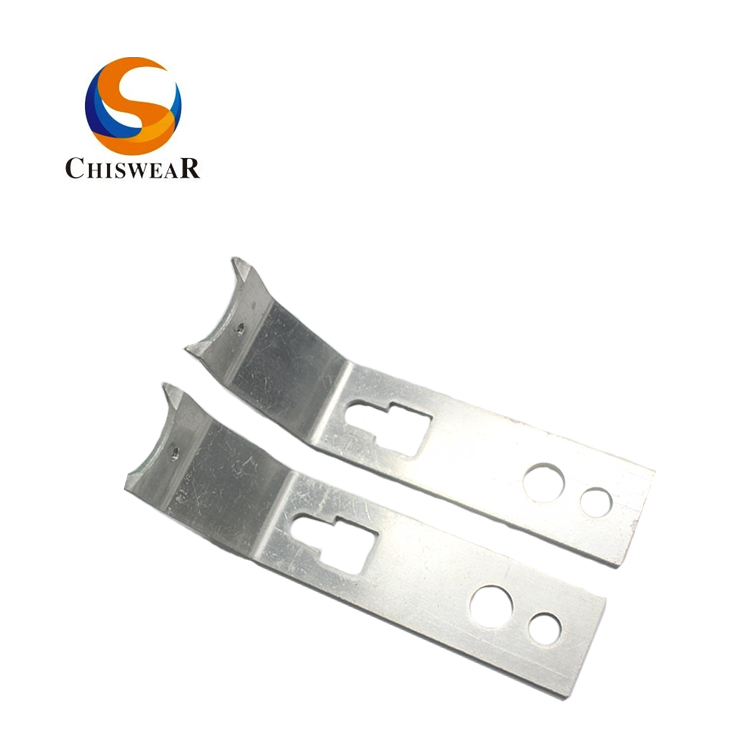

    parting005fitting material
