Feature
1. Product Model: JL-701A
2. Low Voltage: 12-24VDC, 3mA
3. Power Consumption: 12V / 3.5 mA(at daylight); 24V/3.5 mA(at night)
5. Sensor type: optic Sensor
6. Support Dimming: 0-10V
7. High strength waterproof isolate design
8. Compliant Standard interfaces: zhaga book18
9. Zhaga Receptacle and a Base with Dome Kits available to Reach IP66
| Model | JL-701A |
| Voltage | 12-24VDC, 3mA |
| Power consumption | 1.2mA(at night), 1.5mA (at daylight) |
| Dimming output | 0v / OD output |
| Spectral Acquisition Range | 350~1100nm, Peak wavelength560nm |
| Default turn-on threshold | 16lx+/-10 |
| Default turn-off threshold | 64lx+/-10 |
| start state | light on for the first 5s after opening |
| Light on delay | 5s |
| Turn-off delay | 15s |
| Flammability Level | UL94-V0 |
| Anti-static interference（ESD） | IEC61000-4-2Contact discharge：±8kV，CLASSAAirdischarge：±15kV，CLASS A |
| Mechanical Vibration | IEC61000-3-2 |
| Operating Temperature | -40°C~55°C |
| Operating Humidity | 5%RH~99%RH |
| Life | >=80000h |
| IP rating | IP66 |
| Certificate | CB,CE,zhaga book 18 |

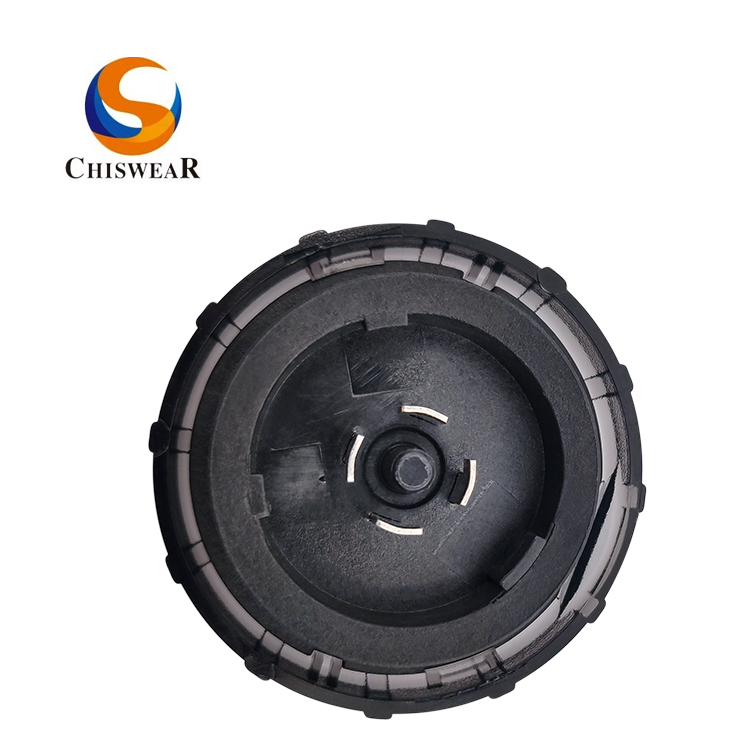

4 pin prongs
|
Item |
Definition |
Type |
|
1 |
12-24 VDC |
power input |
|
2 |
GND |
power input |
|
3 |
NC |
- |
|
4 |
DIM+(0V/-, equal OD output) |
Signal output |
