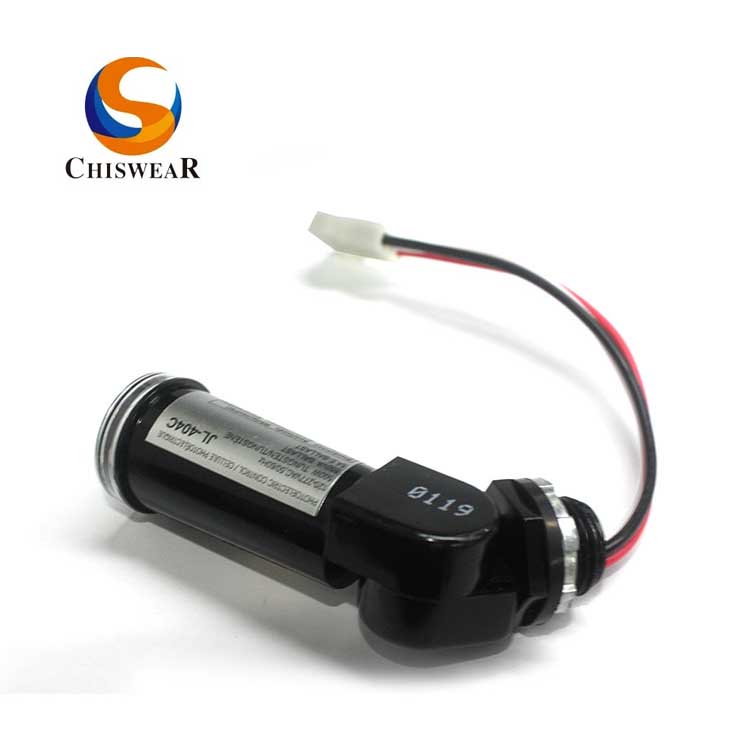

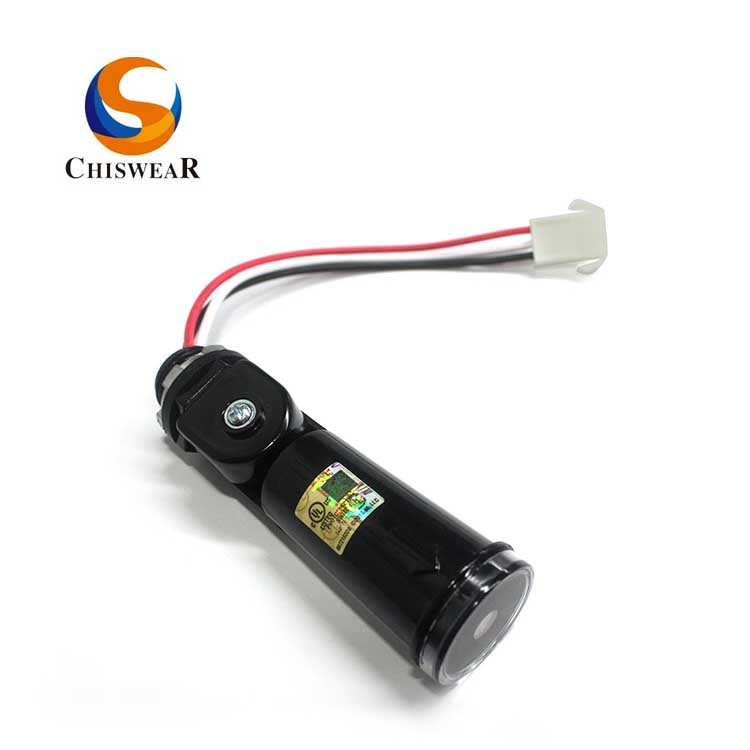

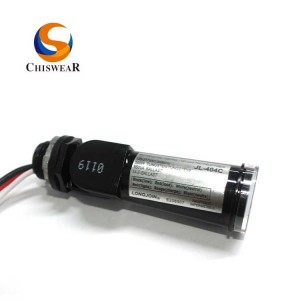

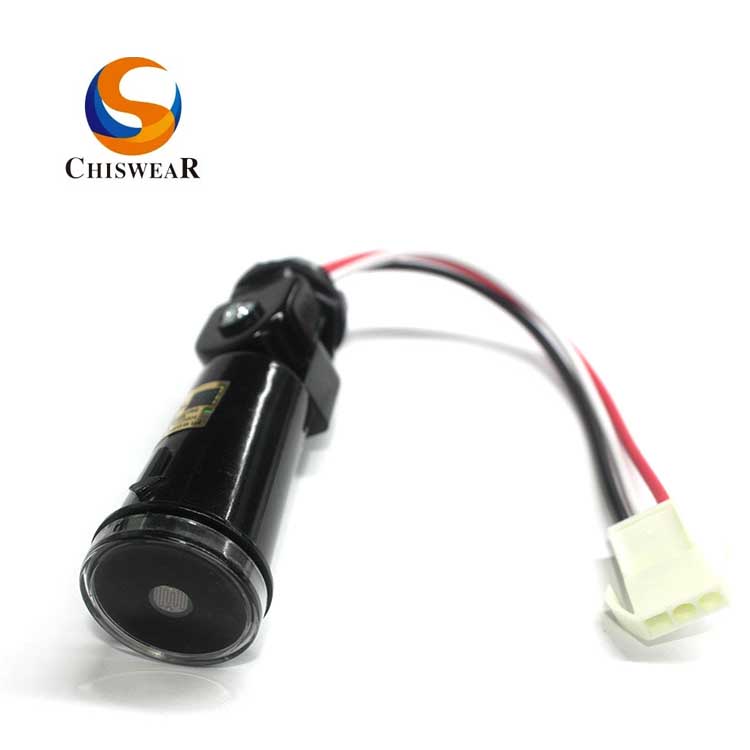

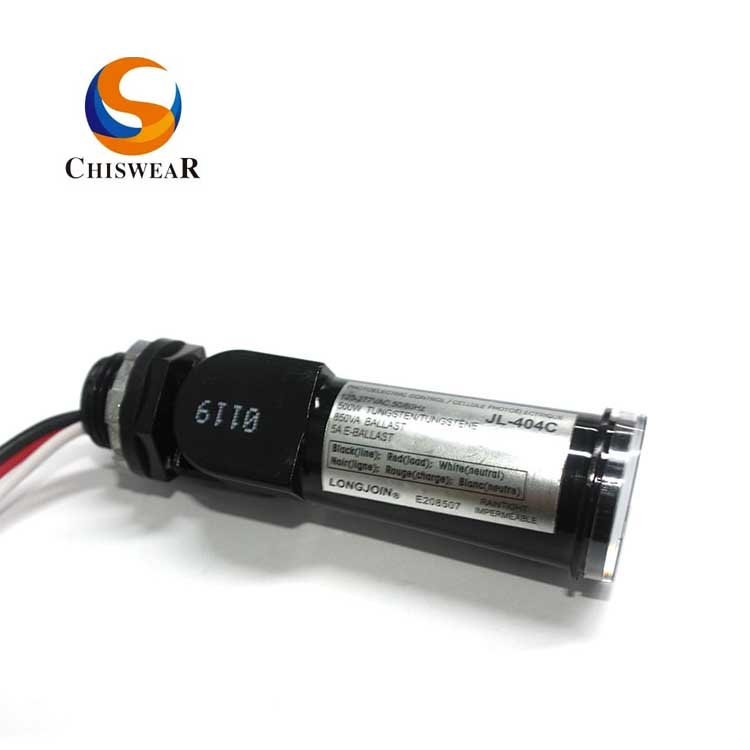

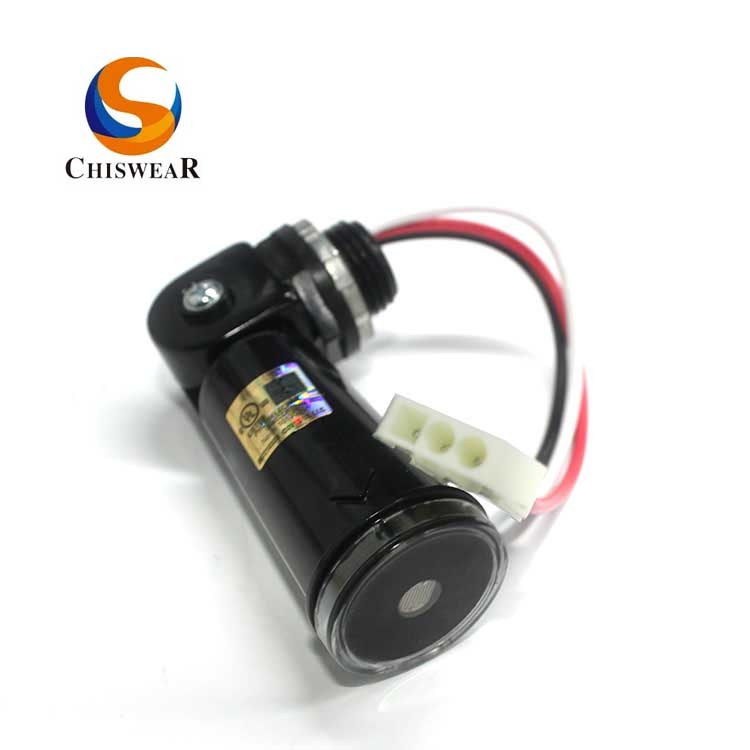

The photoelectric switch JL-404 is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.
Feature
1. 3-10 s time delay.
2. JL-403C provides a wide voltage, or customer request.
3. Preset 3-10 seconds time-delay might avoid mis-operation due to spotlight or lightning during the night time.
4. Compliant Standard for Non-industrial Photoelectric Switches for Lighting Control UL773A.
|
Product Model |
JL-404C |
|
Rated Voltage |
120-277C |
|
Rated Frequency |
50-60Hz |
| Rated Loading |
500W tungsten 850V Ballast 5A-E Ballast |
|
Power Consumption |
2W |
|
Operate level |
10-20Lx on, 30-80Lx off |
|
Leads length |
180mm or Customer request (AWG#18) |
|
Swivel Meas |
85(L) x 36(Dia. Max.)mm; 200 |
