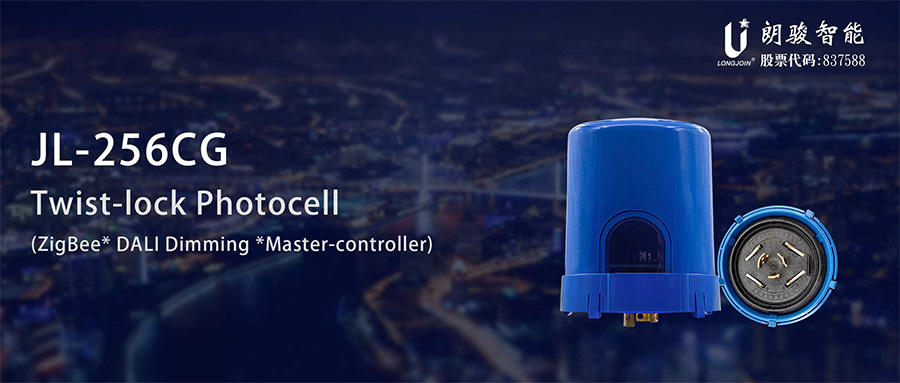

JL-256CG ZigBee Wireless Master Mugenzuzi NEMA Imigaragarire

JL-256CG-zigbee-ubwenge-gufotora-kugenzura_01

Ibisobanuro ku bicuruzwa
JL-256CG ifunga urumuri rwubwenge rukwiranye no kugenzura ibicu no kwifata.Irashobora gukoreshwa mumihanda ya komine, kumurika parike, kumurika ibibanza, nibindi.

Iki gicuruzwa gifite module y'itumanaho ya ZigBee, iyo ikoreshejwe na JL-255CZ (sub-control), irashobora kugenzurwa kure binyuze muri sisitemu yo gucunga amatara ya UM-9900.

JL-256CG-zigbee-ubwenge-gufotora-kugenzura_02



JL-256CG-zigbee-ubwenge-gufotora-kugenzura_04



Ibiranga ibicuruzwa
· ANSI C136.41 kugoreka gufunga
Uburyo bwa Dimming: Dali dimming
· Urwego rwo kurinda urwego: 6KV / 3KA uburyo butandukanye
· Guhitamo ibyiciro bibiri birinda igiceri kubuzima bwa serivisi
· Umuyoboro mugari
· Igenzura na nema yakira ihuza igera kuri IP67
· IR-Filtered Photosensistor

Ibicuruzwa

Ingingo JL-256CG
Umuvuduko ukabije 120-277VAC
Ikigereranyo cya Frequency 50 / 60Hz
Ibisohoka DAli; PWM (10V, 1KHz)
Itumanaho ridafite ishingiro (hejuru) Zigbee + LTE
Urwego rwo Kwakira 350 ~ 1100nm ngth Uburebure bwumurambararo 560nm
Ikigereranyo 1000W Tungsten, 1000VA Ballast, 8A @ 120VAC / 5A @ 208-277VAC e-Ballast
Uburyo bwo kunanirwa Kunanirwa
Igikonoshwa PC
Urwego rwo Kurinda 6KV / 3KA uburyo bwa comon
Urwego rwa IP IP67
Harmonic IEC61000-3-2
Kunyeganyega kwa mashini IEC61000-3-2
Icyemezo UL, CE, RoHS

Amabwiriza yo Kwubaka
· Imigaragarire yibicuruzwa yateguwe kugirango ikumire guterana nabi;kwishyiriraho bisaba gusa kugenzura umugenzuzi kuri base, nkuko bigaragara ku gishushanyo gikurikira, hanyuma ugahindukirira isaha nyuma yo gushiramo.
· Igicuruzwa gishyigikira amashanyarazi ashyushye
Munsi ya sisitemu yo guhuza porogaramu, amakuru agenzura urumuri arashobora kwinjizwa muri sisitemu yacu yo gucunga neza ubwenge binyuze mumurongo wa WEB, cyangwa irashobora guhuzwa na sisitemu yo kugenzura amatara kurubuga ukoresheje scan ya QR code ya label yumucyo hamwe Konti rusange ya “UM9900 Smart Lamp Pole” ya WeChat.

Ikizamini cyambere
· Mugihe cyambere cyo kwishyiriraho, umugenzuzi wumucyo mubisanzwe afata amasegonda menshi kugirango azimye.
Kugerageza “kuri” kumanywa, gupfundikira idirishya ryumucyo ukoresheje kaseti yumukara cyangwa ibintu bidasobanutse.
· Ntugapfundikire intoki zawe, kuko urumuri runyura mu ntoki zawe rushobora kuba ruhagije kugirango uzimye igikoresho cyo kugenzura urumuri.
· Ikizamini cyo kugenzura urumuri gifata iminota 2.

JL-256CG-zigbee-ubwenge-gufotora-kugenzura_06

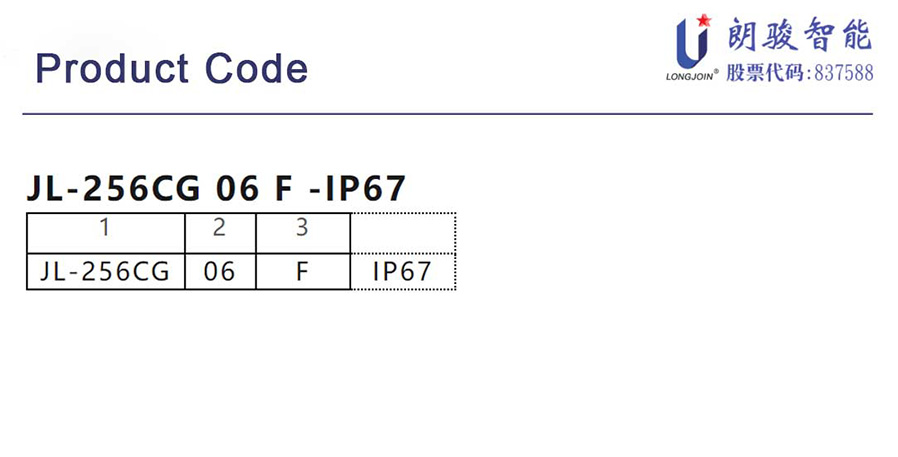

JL-246CG 06 F -IP67
1: LTE module y'itumanaho, itanga ikarita ya SIM
2: 06 = 6KV kurinda inkuba
3: Ibara ryibishishwa
F = Ubururu H = Umukara K = Icyatsi




Igihe cyo kohereza: Mutarama-22-2024
