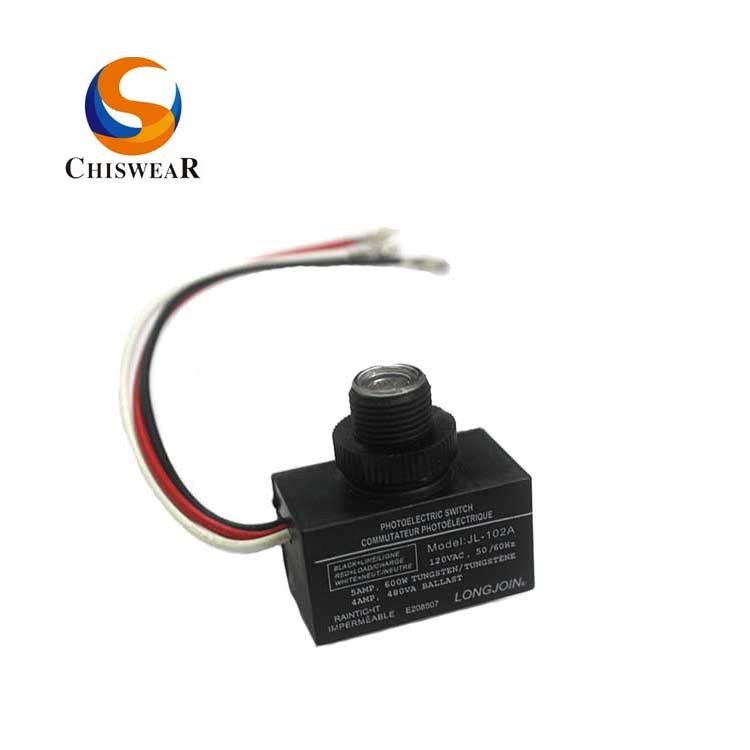

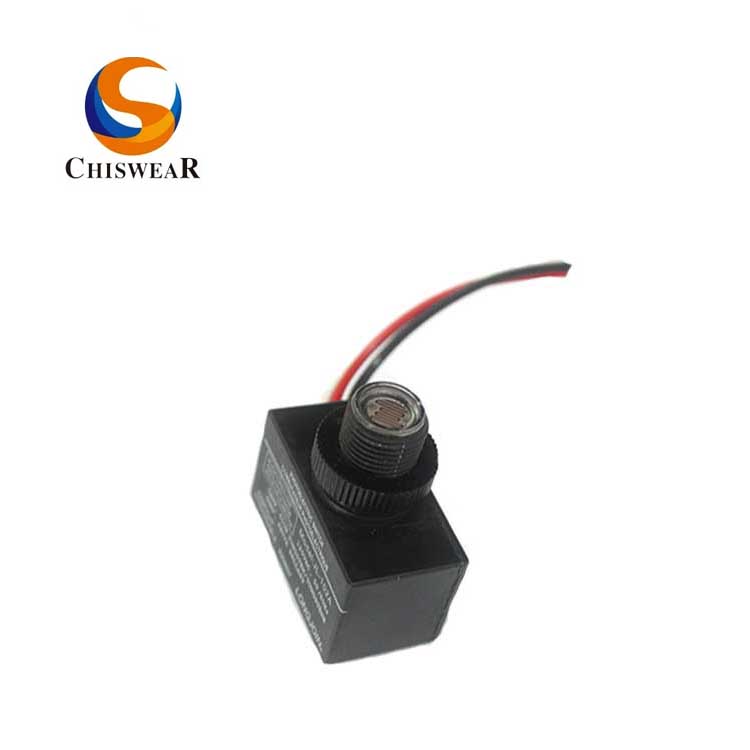

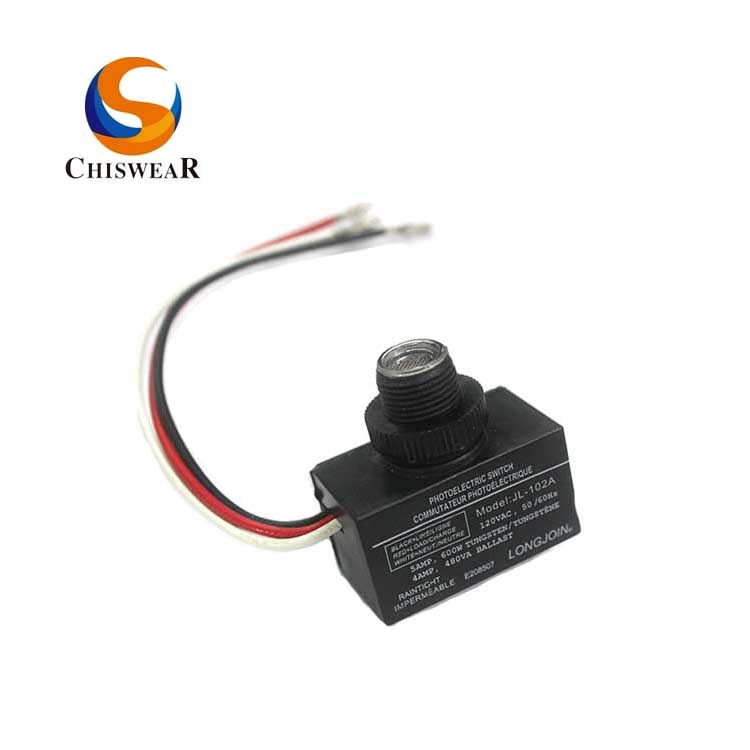

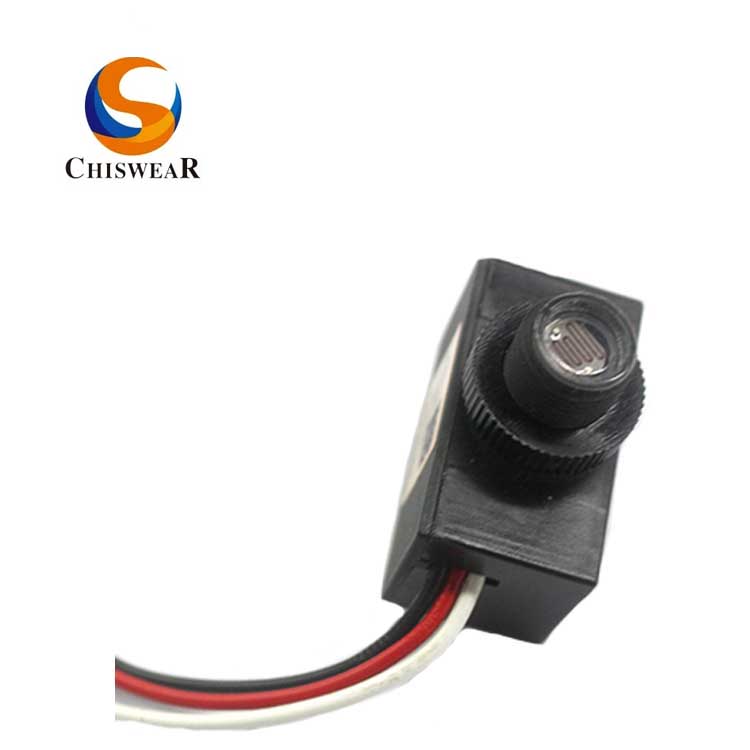

Photo eye Sensor for Wall Pack LED light JL-102A

Short Description:

1.Product Model : JL-102A

2. Rated Voltage : 120 VAC

3. On / OFF Lux Level : 10-20 Lx on 30-60 Lx off

4. IP Rating: IP54

5. Compliant Standard: CE,ROHS,UL

Send email to us Download as PDF

Product Detail

Procutc Specification

Available Fitting

Get Detailed Prices

Product Tags

The photo electric switch JL-101 series is applicable to control the street lighting, garden lighting, passage lighting and barn lighting automatically in accordance with the ambient natural lighting level.

Feature

1 3-10s time delay.

2. Convenient and easy to install.

3. Standard Accessories: aluminum wall plated, waterproof Cap (Optional )

Previous: Zhaga Book18 4 PIN Zhaga Receptacle JL-700

Next: Wiring Mounted 240V Miniature Photocell Light Sensor JL-102BR

Product Model	JL-102A	JL-102B
Rated Voltage	120VAC	240VAC
Rated Frequency	50-60Hz
Rated Loading	150W Tungsten 100VA Ballast
Leads Gauge	AWG#18
Related Humidity	-40℃-70℃
Power Consumption	1.0W max
Operate level	10-20 Lx on 30-60 Lx off
Overall Dimensions（mm）	35(L)19.5(W)36(H)
Lead lengths	7 inch or Customer request;
