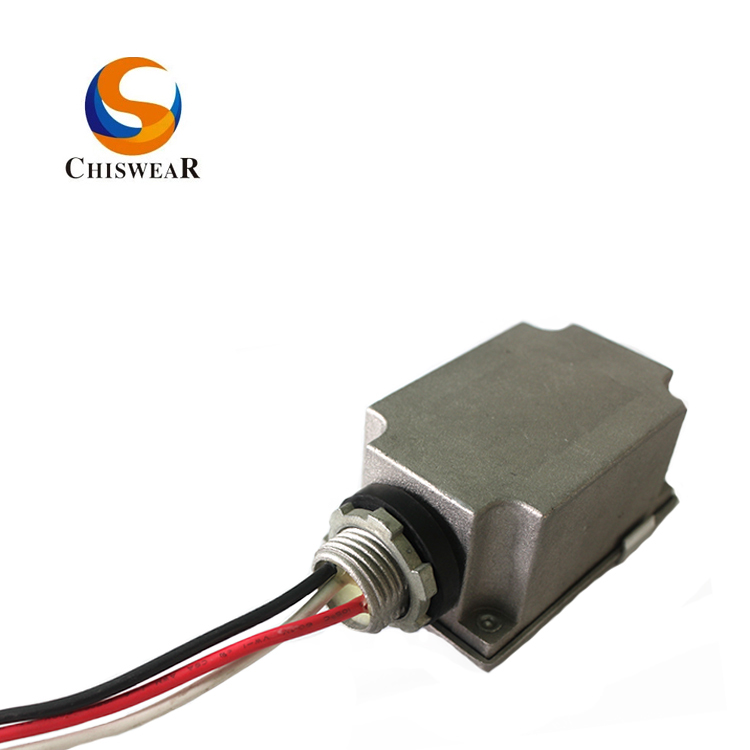

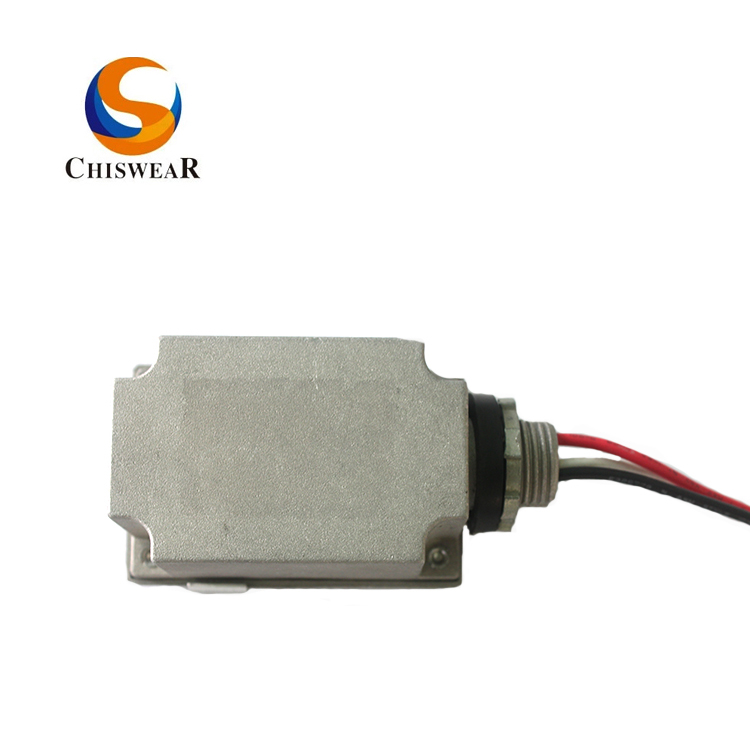

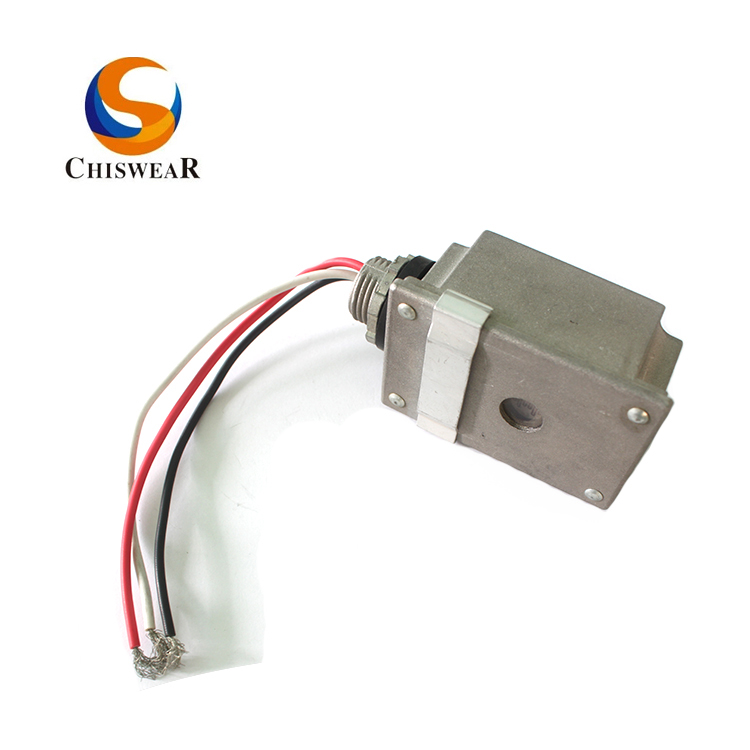

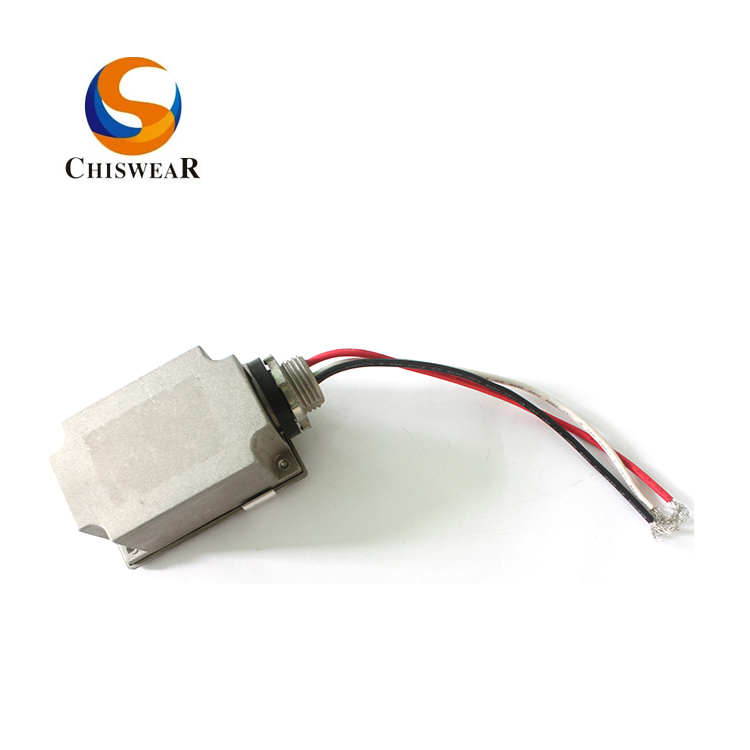

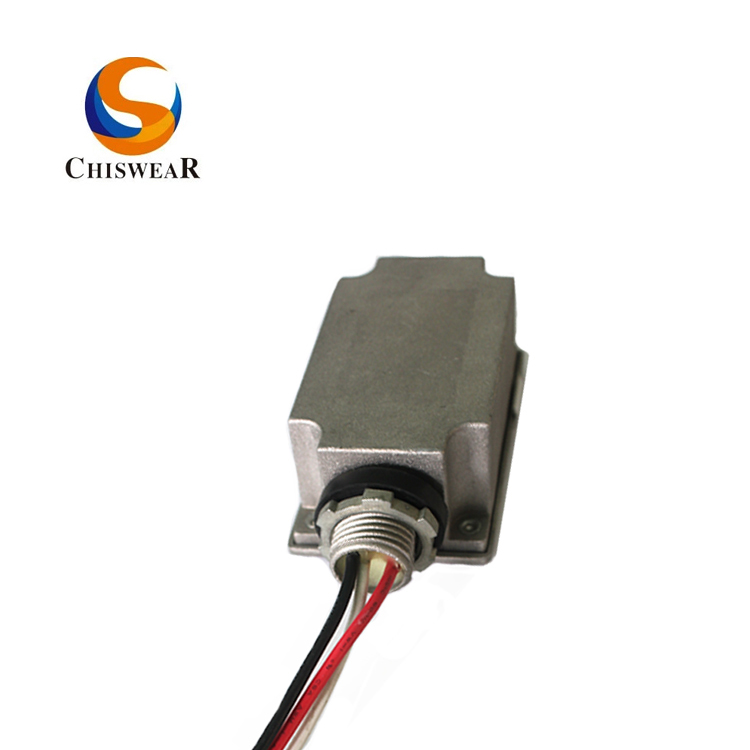

The photoelectric switch JL-106 and JL-116 Series is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.
Fearture
1. Work principle: bimetal thermal Structure, with over height temperature feature.
2. 30 seconds Time Delay
3. Avoid sudden accidents (spotlight or lightning) affecting normal lighting at night.
Tips
Optional available Accessories:
1)add swivel head;
2) customized Leads length in inch
| Product Model | JL-106A | JL-116B |
| Rated Voltage | 100-120VAC | 200-240VAC |
| Rated Frequency |
50/60Hz |
|
| Rated Loading |
2000W Tungsten, 2000VA Ballast |
|
| Power consumption | 1.5 VA | |
| Operate Level |
10-20Lx On 30-60Lx Off |
|
| Ambient Temperature |
-30℃ ~ +70℃ |
|
| Leads Length | 150mm or Customer request (AWG#18) | |
| Sensor Type | LDR Sensor Switch | |
