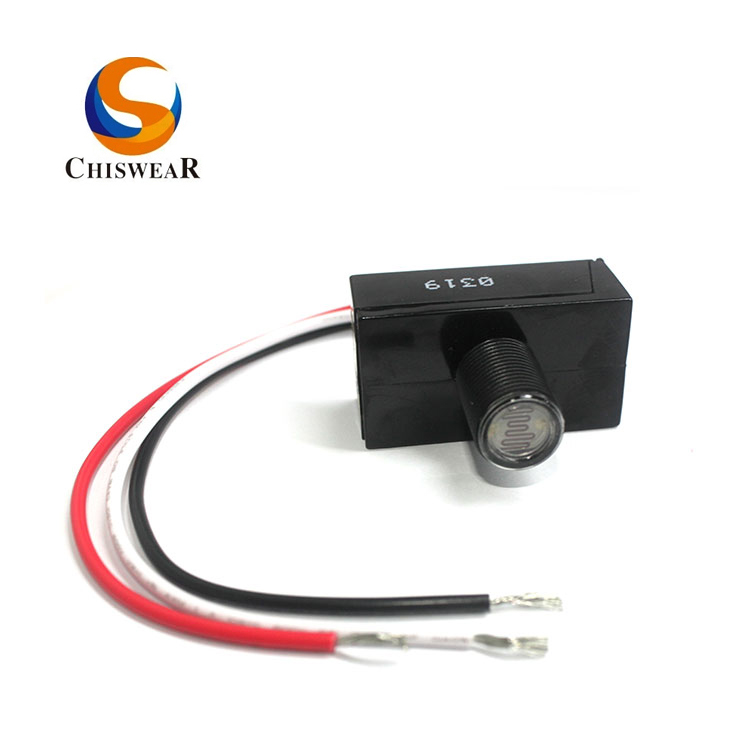

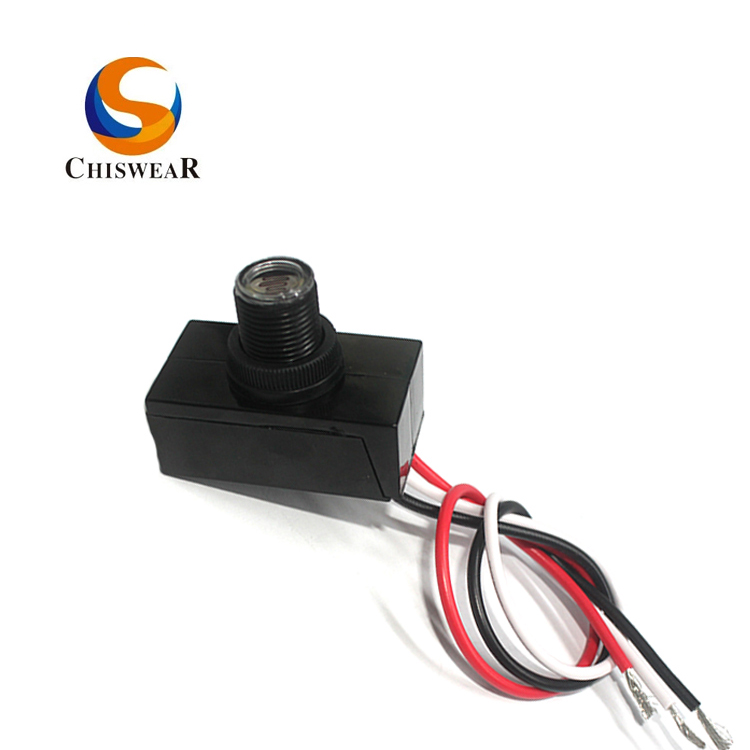

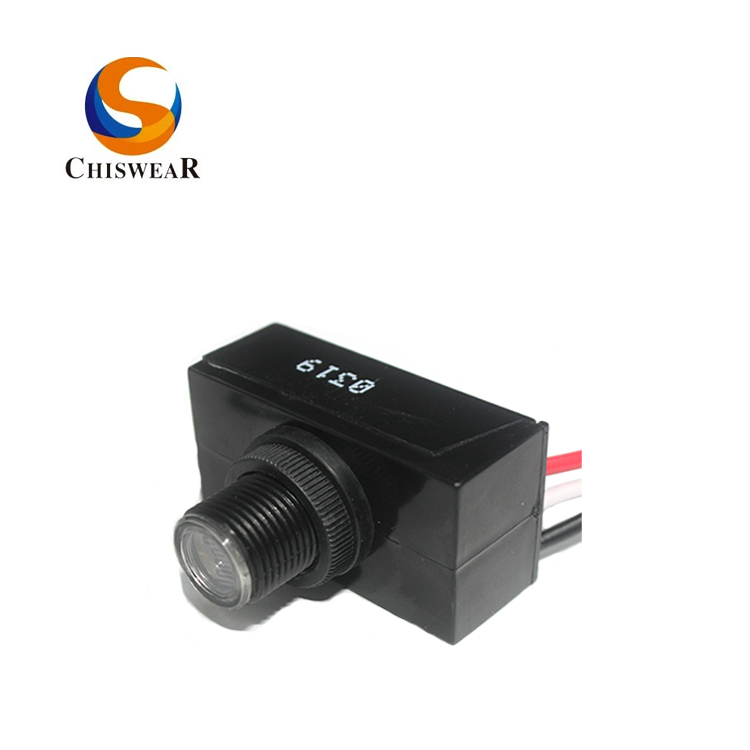

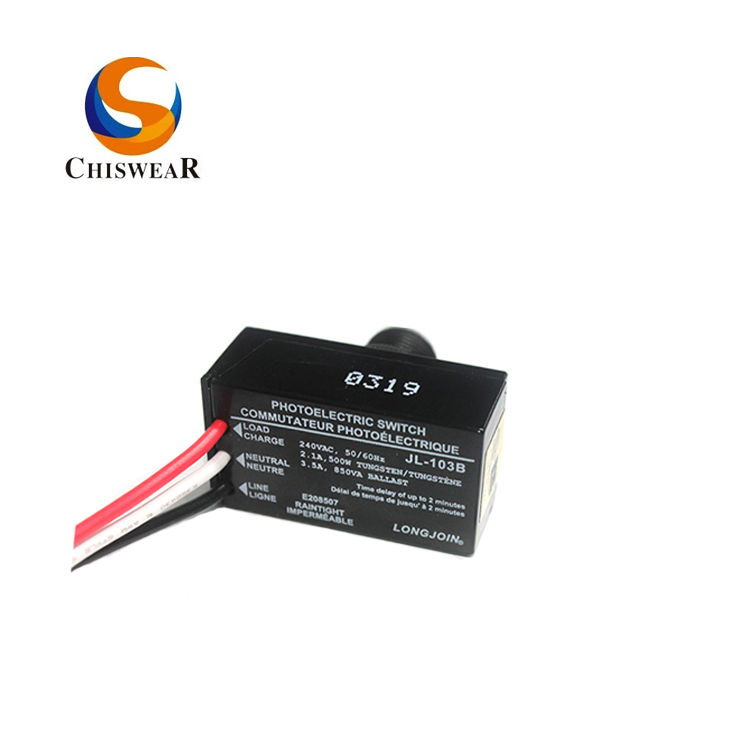

Option Custom 103 Series Mini Button Photocontrol and High Loading Consumption 1800W

Short Description:

1. Product Model: JL-103AG
2. Rated Voltage: 120 VAC
3. On / OFF Lux Level: 10-20 Lx on; 30-60 Lx off
4. IP Rating: IP54
5. Optional Accessories: Aluminium Plate
6. Compliant Standard: CE, ROHS, UL

Send email to us Download as PDF

Product Detail

Video

Product Specification

Get Detailed Prices

Product Tags

The photoelectric switch JL-103Series is applicable to control the street lighting, garden lighting, passage lighting and barn lighting automatically in accordance with the ambient natural lighting level.

Feature
1. Convenient and easy to install.
2. Standard Accessories: aluminum wall plated, waterproof cap(Optional )
3. Wire gauge Classifications:
1) standard wire: 105℃.
2) High temperature wire : 150℃.

Previous: Hardwired Button Photo Control and Option Available Aluminium Plate Kits

Next: Custom JL-205 Series Twist Lock Photocontrol and JL-210K Receptacle 110-227VAC

Mode	JL-103AG	JL-103B		JL-103C		JL-103D		JL-103*
Rated Voltage	120VAC	220-240VAC		208-277VAC		277VAC		347VAC
Rated Frequency	50/60Hz
Lead Wire	4’’
Road Loading	AWG#16AWM1332	AWG#18AWM1332	AWG#16AWM1332		AWG#16AWM1332	AWG#18AWM1332	AWG#18AWM1332	AWG#16AWM1332
	1800W1100VA	500W850VA	1800W1800VA		1500W1500VA	500W850VA	2000W2000VA	2000W2000VA
Power consumption	1.2W Max
Operate Level	10-20Lx turn on, 30-60 turn off
Ambient temperature	-40~70℃
