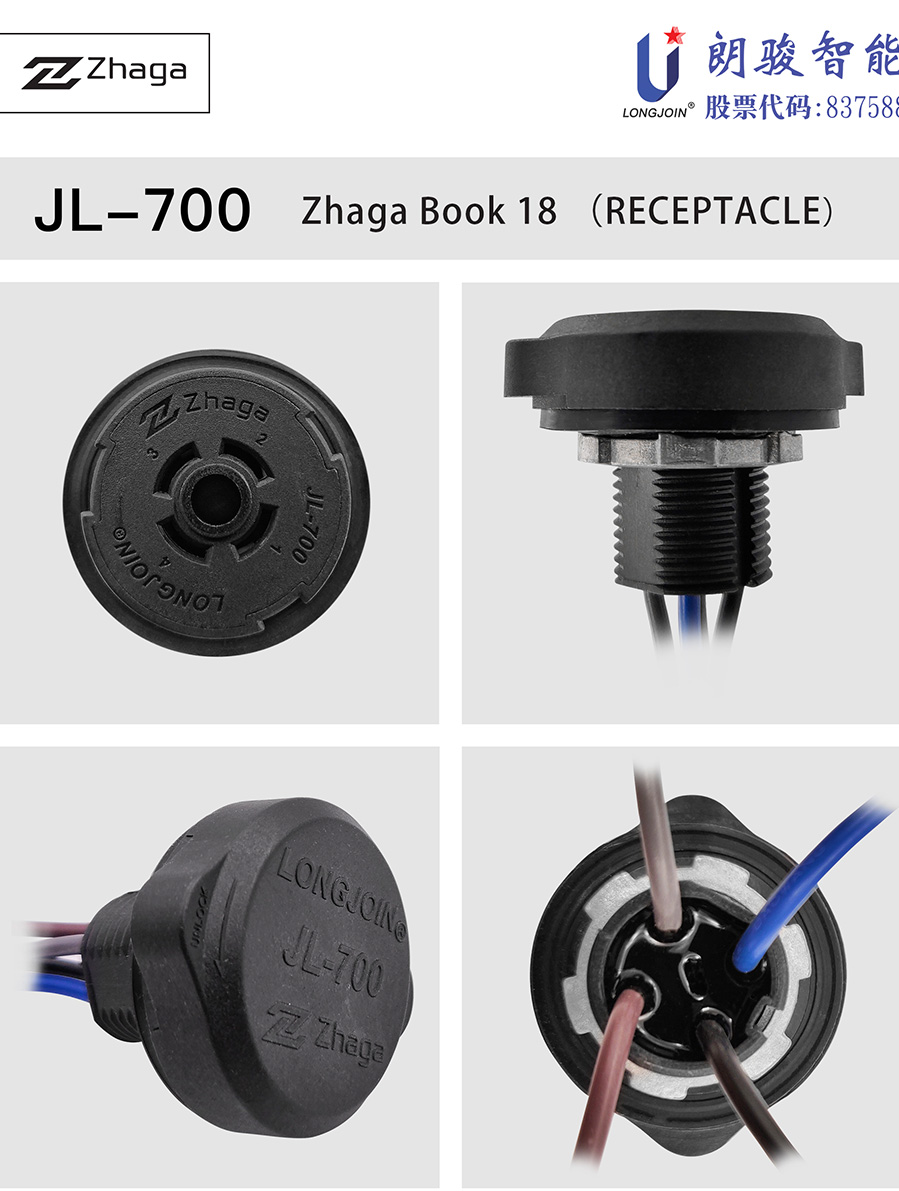

Jl-700 zhaga book-18 latch socket produced by LONG-JOIN intelligent meets the standard interface requirements of zhaga Book 18 (Z-LEX-R, Z-LEX-C), and has passed the relevant certification, which is convenient for the development and integrated installation of lamps and lanterns for roads, areas or commercial and residential lighting, such as street lamps, industrial and mining lamps, corridor lamps and wall lamps.
Notice:
This is a zhaga socket JL-700 that it 4 pin type connector and body material is made of PBT, and 4 wires to be connected between different luminaries providers and with 0-10V dimming driver or Dali driver built-in fixture internal room space. sure, do you want to go shopping for this mini-type socket? so, try to consult our expert service for some light controllers, then you can get more interesting content to inspiration than you think.
Product Keywords:
zhaga zhaga sesor JL-700 zhaga accessories zhaga JL-710 (AC-DC Switching Low voltage connector)
JL-700 Features
*It meets the standard interface requirements of zhaga Book 18 and has obtained DEKRA quality inspection certification.
*With the light controller, it can reach the waterproof level of IP66, and the single socket can reach the waterproof level of IP20.
*The integrated single gasket can seal the lamps and modules to minimize the assembly time.
*Small size, suitable for more lamps.
*Flexible installation position, which can be installed at various positions such as the top / bottom / side of the lamp.
*Support hot plug.
*Contact rating: 1.5A, 24VDC (MAX 30VDC).
*-Operating temperature range of 40~70 ℃.
* φ More than 40~80 models are available to meet the design size requirements of various light controllers.

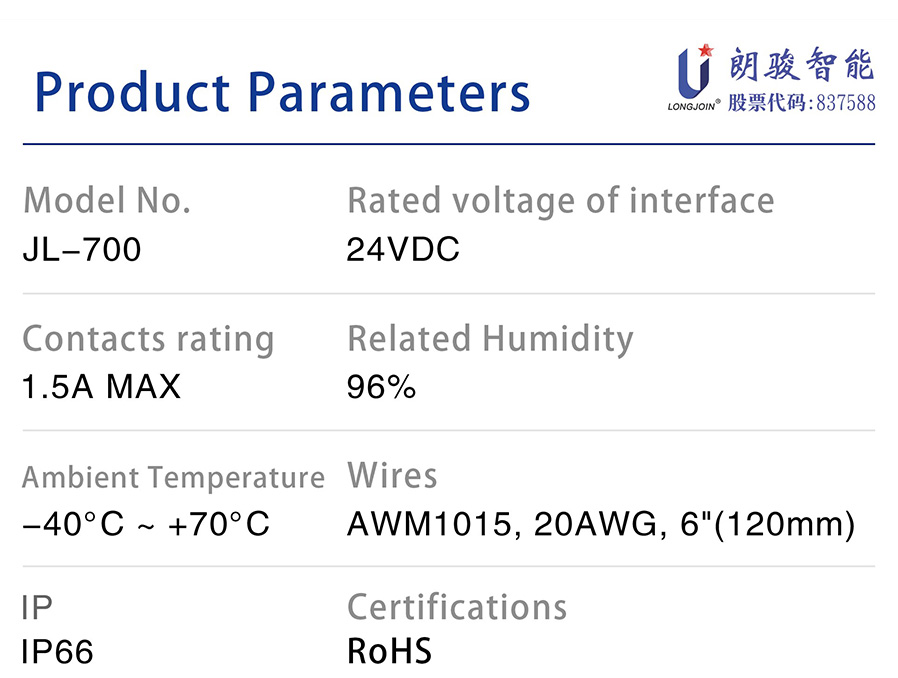

JL-700 Parameter
4 Line color definition
*Default version
Port 1 (brown): 24VDC
Port 2 (gray): DALI-/GND
Port 3 (blue): DALI+
Port 4 (black): Reserved I/O
*Optional version
Port 1 (red): 24VDC
Port 2 (black): DALI-/GND
Port 3 (purple): DALI+
Port 4 (yellow): Reserved I/O
Line color definition
*Default version
Port 1 (brown): 24VDC
Port 2 (gray): DALI-/GND
Port 3 (blue): DALI+
Port 4 (black): Reserved I/O
*Optional version
Port 1 (red): 24VDC
Port 2 (black): DALI-/GND
Port 3 (purple): DALI+
Port 4 (yellow): Reserved I/O

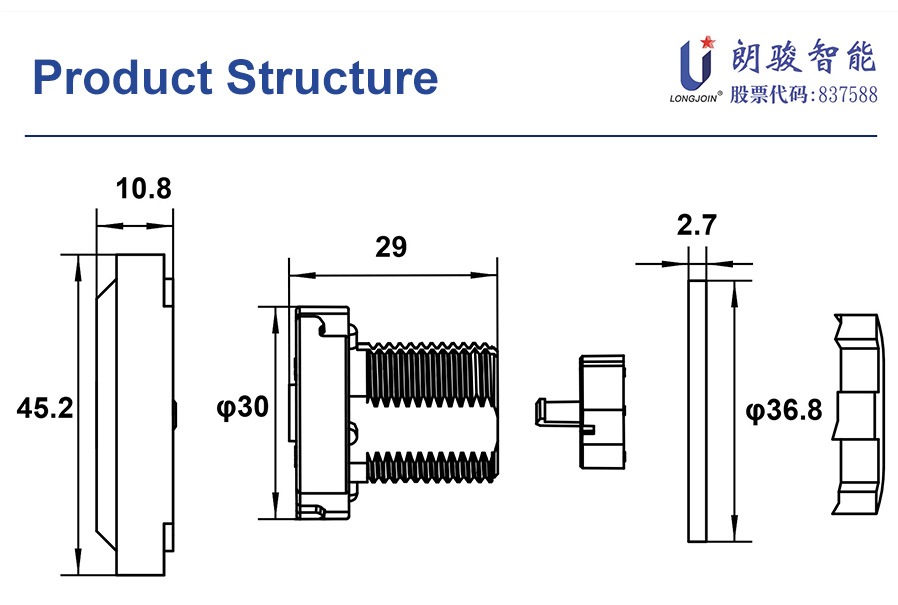

Product Structure
