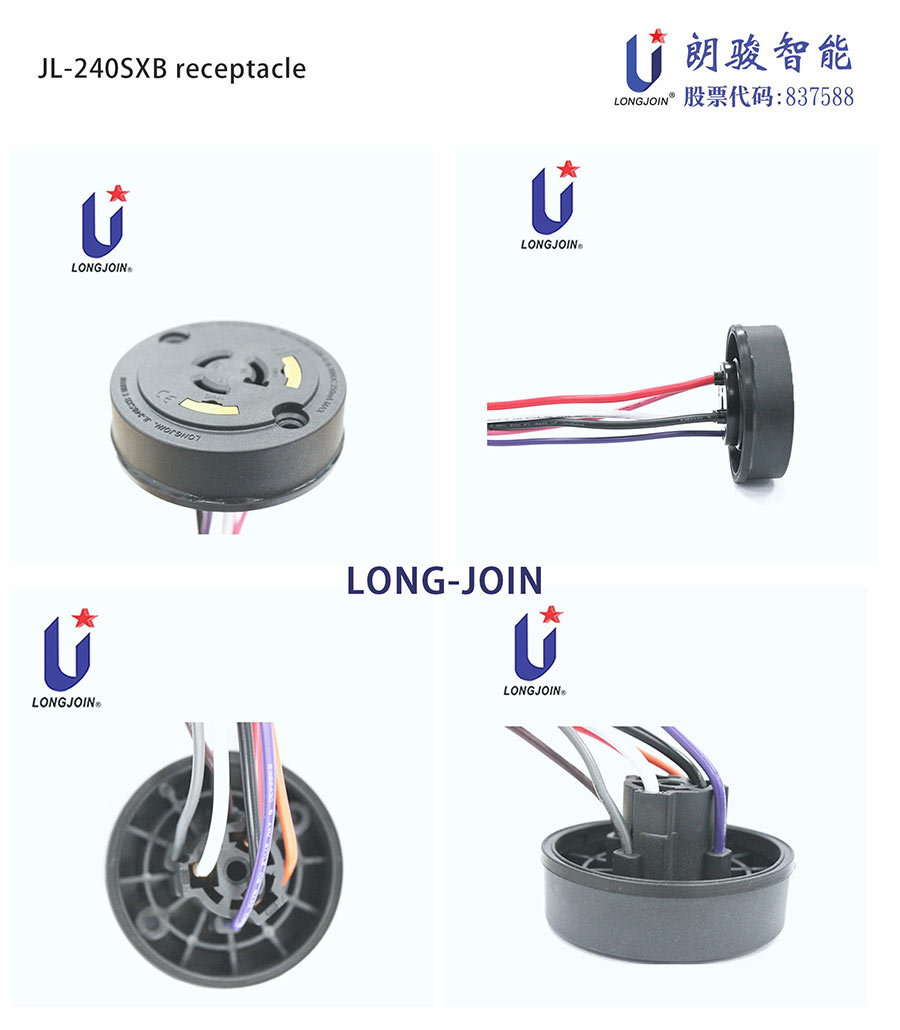

Here a type new design short terminal body, it is design for narrow space of light fixture inner environment. other structure feature is similar to our nema JL-240xa with 7 pin. however, newly published ANSI C136.41 to allow a LED lamp multi-controlled through the receptacle. its dimming 0-10v, so you can use lighting driver limit 0-10v output.
| Number | JL-240SXB |
| Rated Voltage | - |
| Applicable Voltage Range |
0-480VAC |
| Rated Frequency | 50/60Hz |
| Signal Control | 0-30 VDC, 250 mA Max |
| Wire Gauge | 16AWG,14AWG |
| Operate Levels | 40°C ~ +70°C |
| Load Rating | 15A |
| Certificate | UL, CE,ANSI C136.41 |

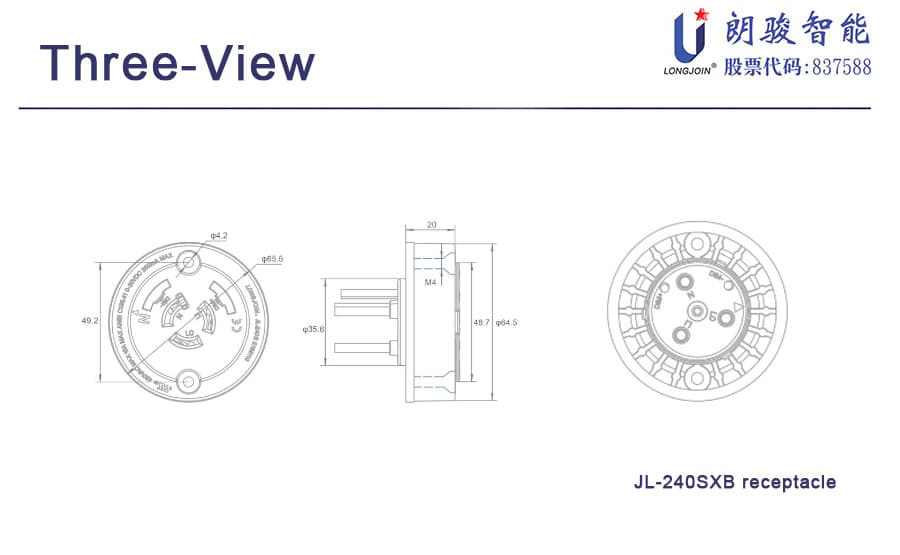

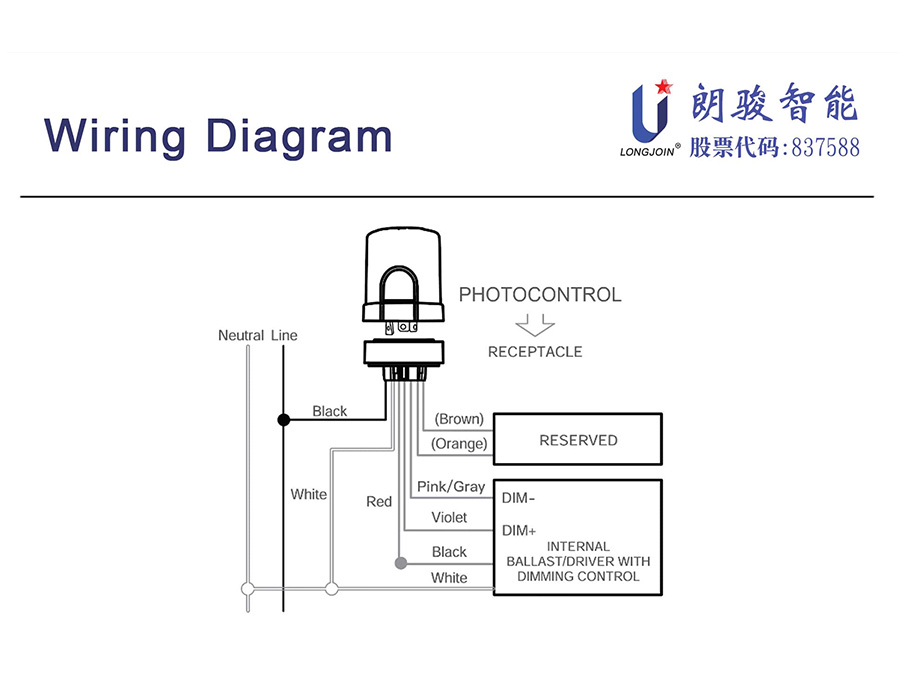

(here is only reference) Disconnect power; wire the receptacle according to the diagram below. An arrow indicating NORTH on the top face is used to assist in correct orientation.

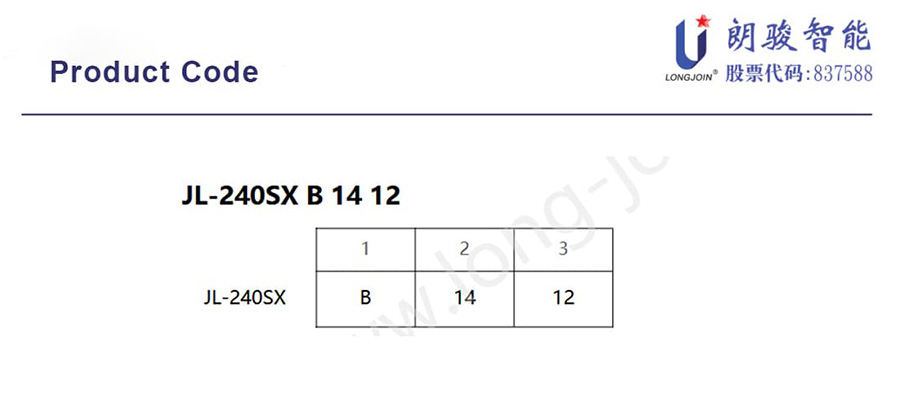

1: B=2 Dimming pads
2: Power Lead Rating
14=14 AWG, 105ºC rated
14G=14 AWG 150 ºC rated
16S=16 AWG Double isolated wire (Class II)
3: 12= 12″ (Customizable, 06 Min.
