Longjoin JL-246CG NEMA Interface Locking Smart Light Controller

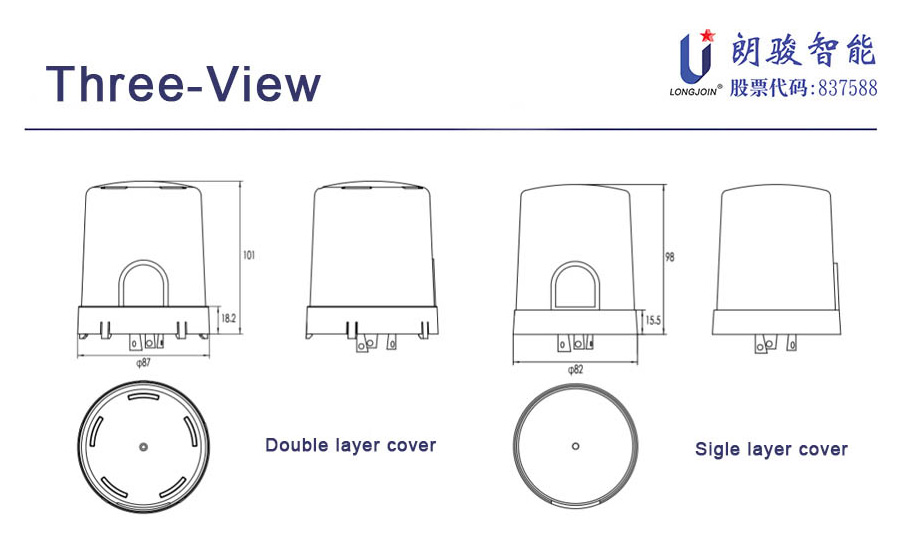

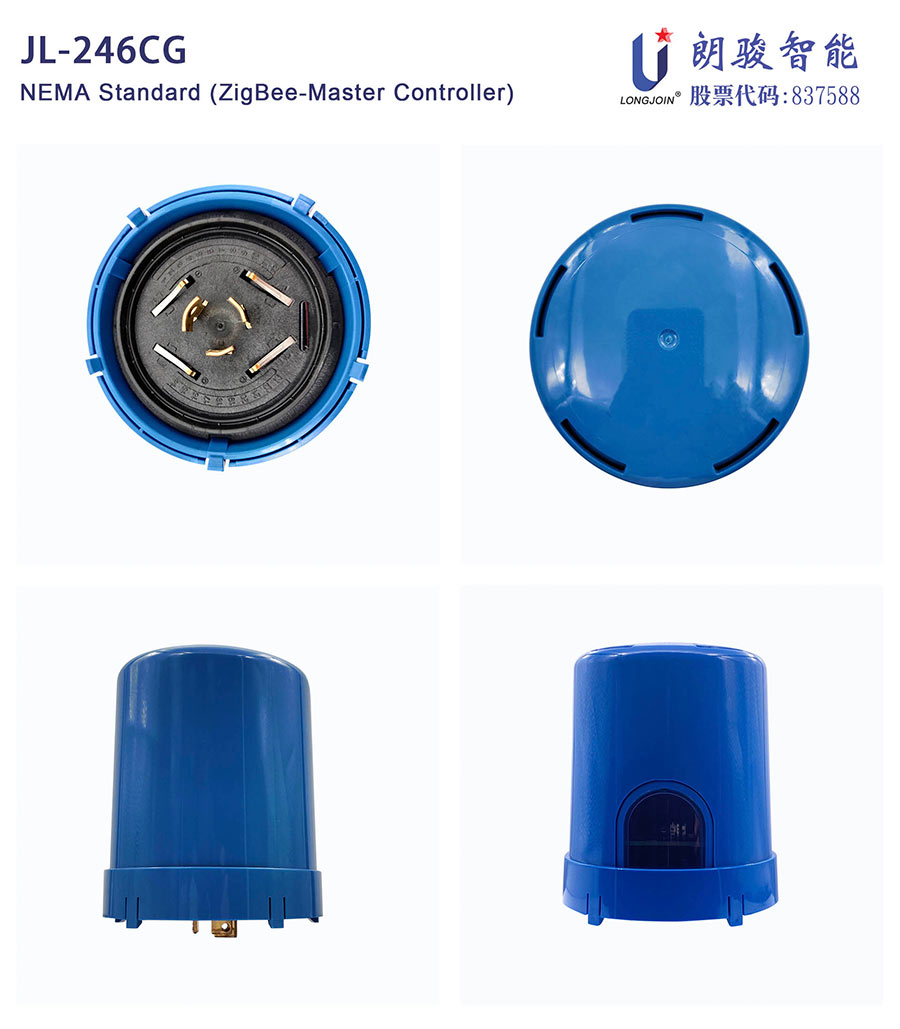

JL-246CG-smart-controller_01
Product Description
The JL-246CG twist lock smart light switch is suitable for cloud control and self-control modes. It can be used in municipal roads, park lighting, landscape lighting, etc.
This product has a ZigBee communication module, which when used with JL-245CZ (sub-control), can be remotely controlled through the UM-9900 smart lamp pole management system.

JL-246CG-smart-controller_03

JL-246CG-smart-controller_04
Product Features
·ANSI C136.41 twist lock base
·Dimming mode: 0-10V/1-10V dimming
·Surge protection level: 6KV/3KA differential mode
·Optional double layer protective shell for extended service life
·Wide voltage range
·controller and nema receptacle combination reach to IP67
·IR-Filtered Phototransistor

Product Parameter

Item JL-246CG
Rated Voltage 120-277VAC
Applicable Voltage
Range
105-305VAC
Rated Frequency 50/60Hz
Dimming Output 0-10VDC;PWM(10V,1KHz)
Wrieless Communication(up) Zigbee+LTE
Spectral Acquistion Range 350~1100nm;Peak wavelength 560nm
Rated Loading 1000W Tungsten ,1000VA Ballast , 8A@120VAC/5A@208-277VAC e-Ballast
Fail Mode Fail-on
Shell Material PC
Surge Protection Level 6KV/3KA comon mode
IP Level IP67
Harmonic IEC61000-3-2
Mechanical vibration IEC61000-3-2
Certificate UL,CE,RoHS

Installation Instructions
·The product interface has been designed to prevent incorrect assembly; installation simply requires tightening the controller directly onto the base, as shown in the figure below, and then turning clockwise after insertion.
·The product supports hot swapping
Under the system networking application, the light controller information can be imported into our smart lighting management system in advance through the WEB interface, or it can be connected to the lighting control system on-site by scanning the QR code label of the light controller with WeChat’s “UM9900 Smart Lamp Pole” public account.

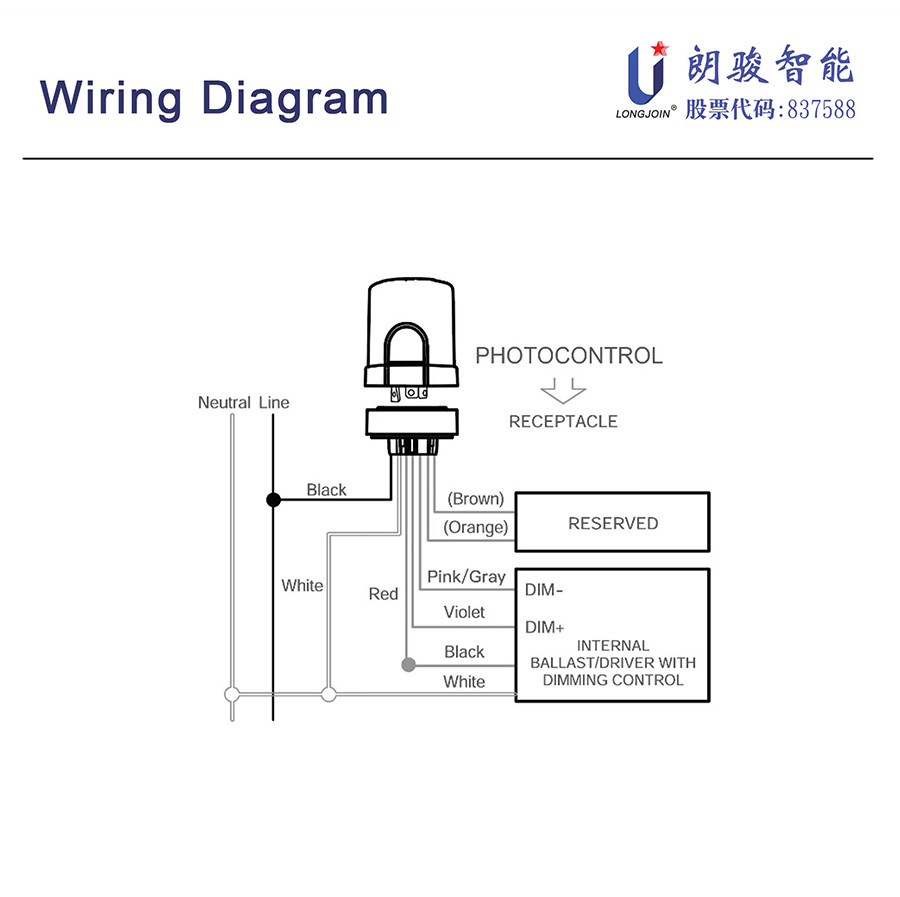

JL-246CG-smart-controller_05
Initial testing
· During the first installation, the light controller usually takes several seconds to turn off.
· To test “on” during the day, cover the light-sensitive window with black tape or opaque material.
· Do not cover with your fingers, because the light passing through your fingers may be enough to turn off the light control device.
· The light controller test takes about 2 minutes.
JL-246CG-smart-controller_06

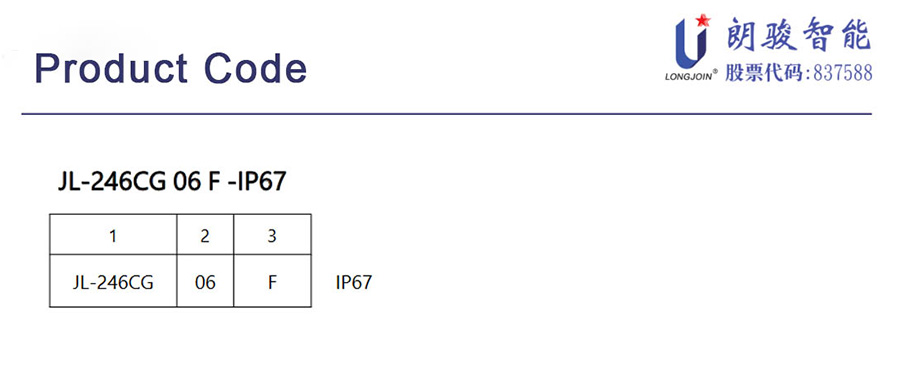

JL-246CG 06 F -IP67
1: LTE communication module, providing a SIM card slot
2: 06 = 6KV lightning protection
3: Shell color
F = Blue H = Black K = Grey
