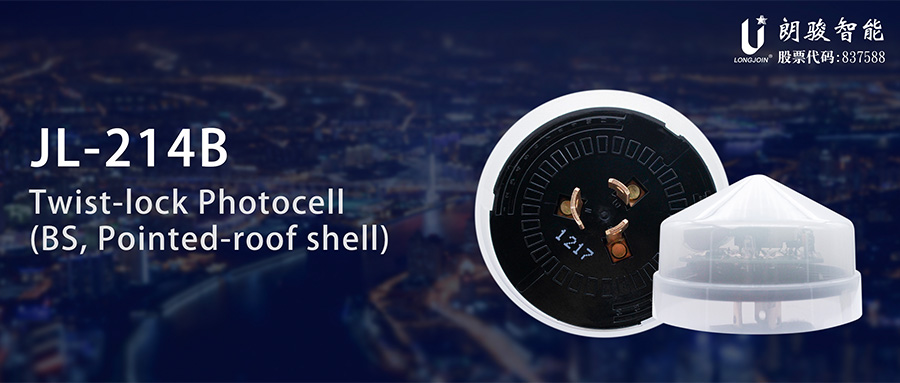

LONG-JOIN BS Standard Twsit Lock Photocell Sensor 220VAC

long-join-BS-photocell_01

Product introduction

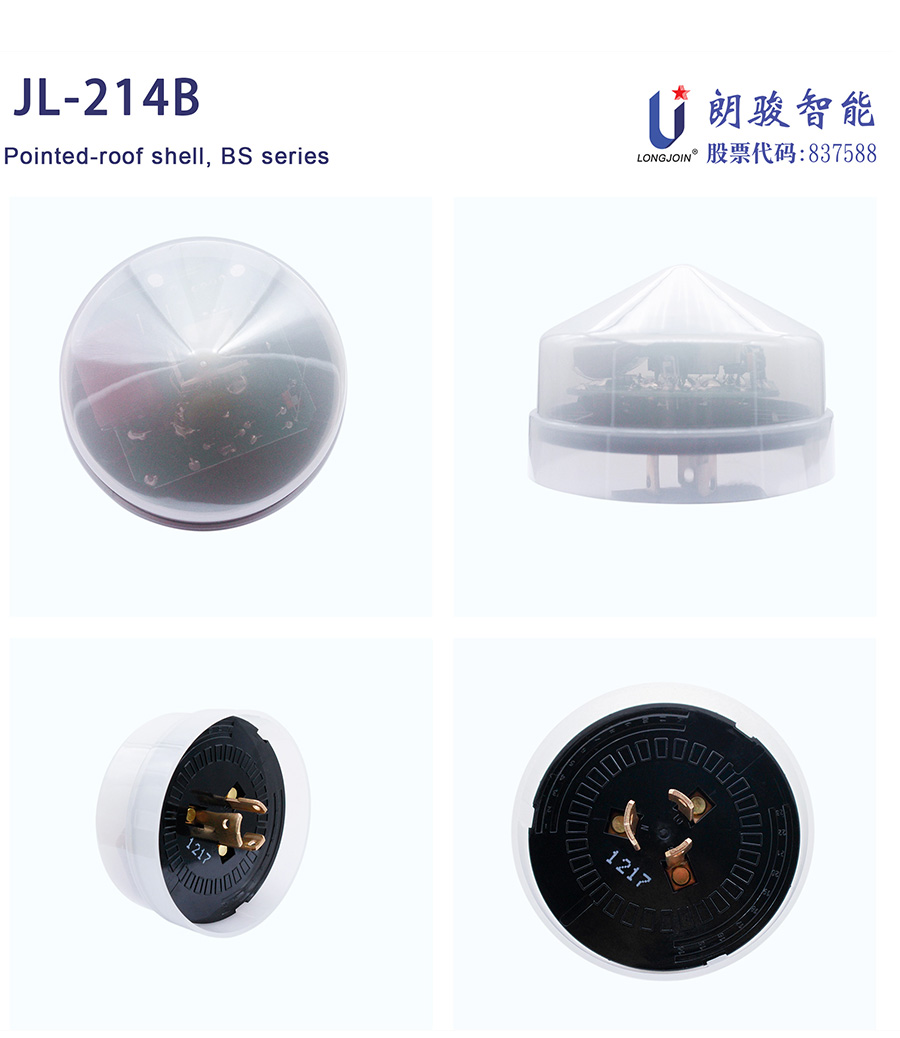

JL-214B twist lock electronic light control switch is applicable to independently control street lighting, garden lighting, passage lighting and doorway lighting according to the natural lighting level of the environment.

This product adopts the electronic circuit design with photoelectric transistor sensor and is equipped with surge arresters (MOVs). In particular, JL-214B is equipped with a top sensor for customers to meet the BS5972 standard.

In addition, the preset 5-30 second delay control function can avoid redundant operation caused by spotlight or lightning at night.

This product provides latch terminals that meet the requirements of BS5972, and this series also meets CE and RoHS standards.

long-join-BS-photocell_02

long-join-BS-photocell_05

Product Features
·Comply with BS5972
·Delay 5-30 seconds
·Multi-voltage available
·Built-in surge protection
·Phototransistor sensor
·Used with twist lock socket of BS5972 standard

Product lists

Item JL-214B
Rated Voltage 220-240VAC
Rated Frequency 50/60Hz
Work Temperature -40℃-70℃
Relative Humidity 96%
Rated Loading 1000W Tungsten,  1800VA Ballast
Power Consumption 8W@240VAC
Surge Arrest optional
On/Off lux On<20Lx,off>80Lx
Fail Mode Fial-off
Certificate CE,RoHS
IP Rating IP54

Installation Instructions

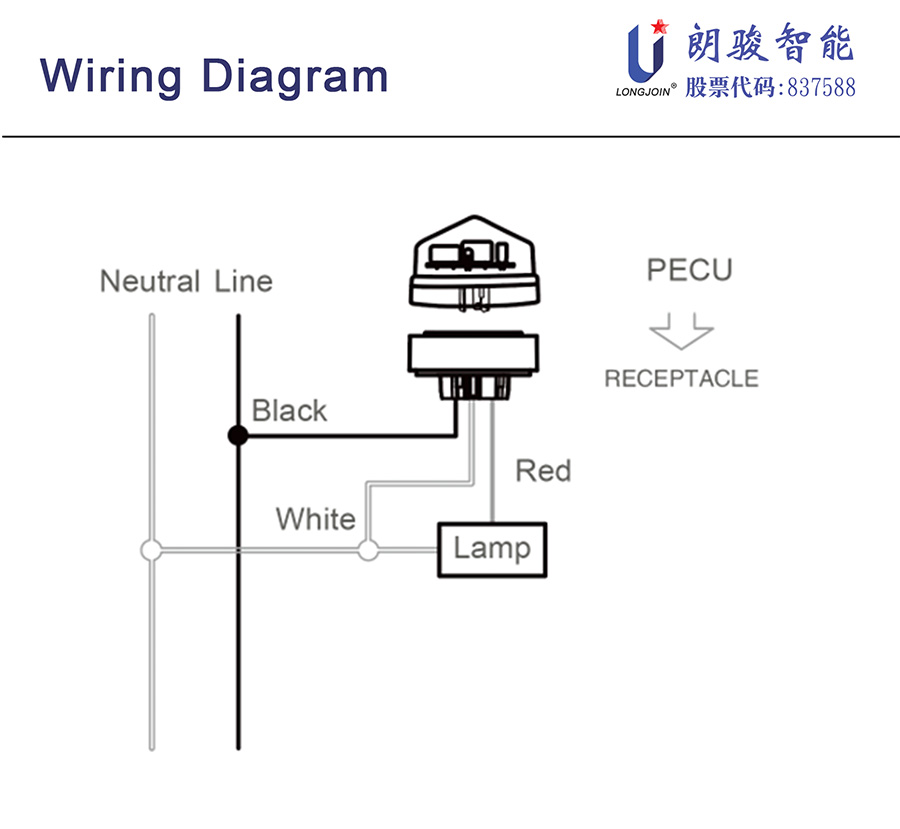

Disconnect power; wire the receptacle according to the diagram below.
Push the PECU on and twist it clockwise to lock it into the receptacle.
long-join-BS-photocell_03

long-join-BS-photocell_04

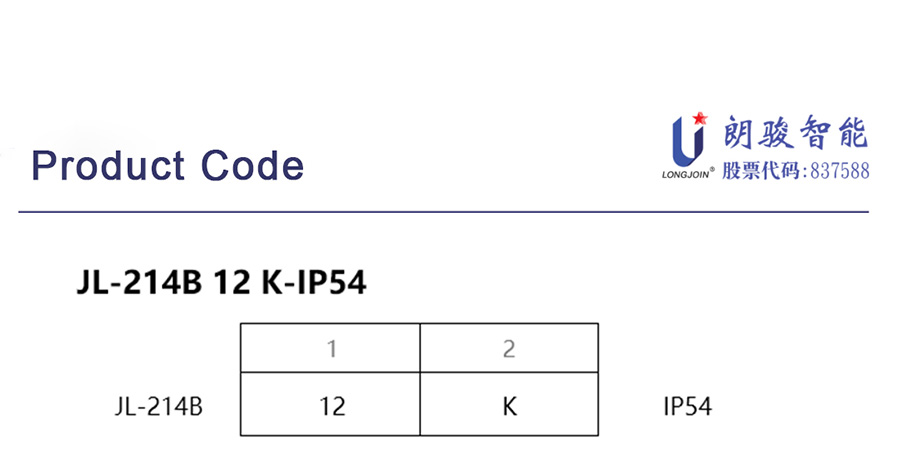

1: 12 = MOV 110 Joule / 3500 Amp
2: K(option)= Kit package with JL-210K Receptacle
