JL-700-K4/K5 latch socket meets the requirements of Zhaga Book18 standard interface (Z-LEX-R, Z-LEX-C) and has passed relevant certification, which is convenient for development and installation of integrated lamps such as road lighting, regional lighting or commercial and residential lighting, such as street lamps, industrial and mining lamps, corridor lamps, wall lamps, etc.
Features
*Conform to Zhaga Book18 interface standard
*With the controller, it can reach IP66 waterproof grade, and single socket can reach IP20 grade
*Integrated single gasket can seal lamps and modules to minimize assembly time
*Small size, suitable for installation to various lamps
*Flexible installation position, which can be installed at the top/bottom/side of the lamp
*Support hot plug
*Contact rating: 1.5A, 24VDC (maximum 30VDC)
*Operating temperature range of – 40 ℃~70 ℃
* φ More than 40~80 models can be selected to meet the design size requirements of various controllers

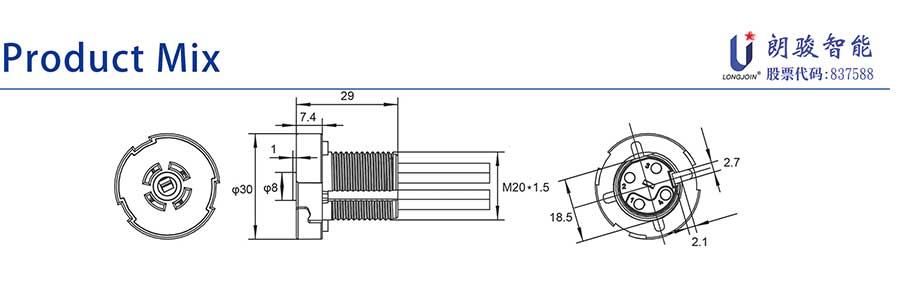

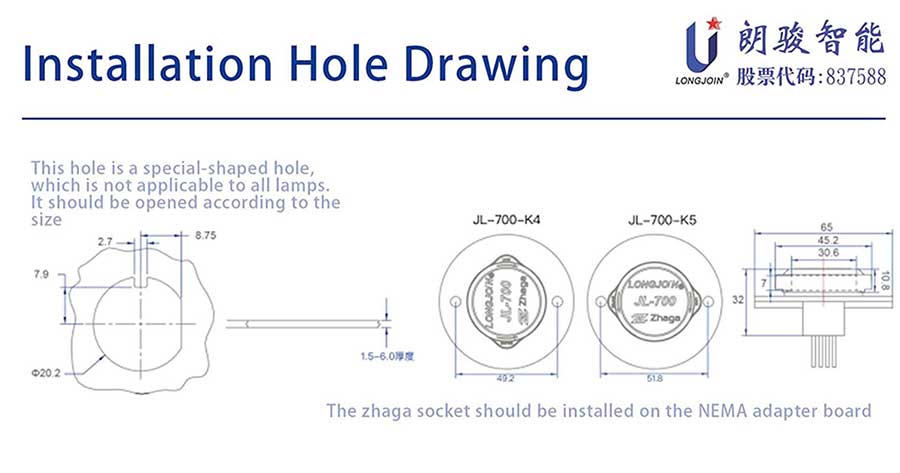

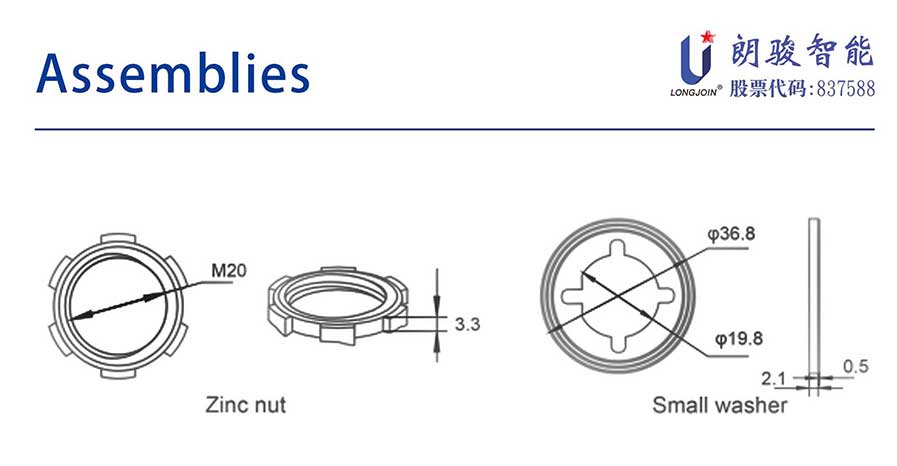

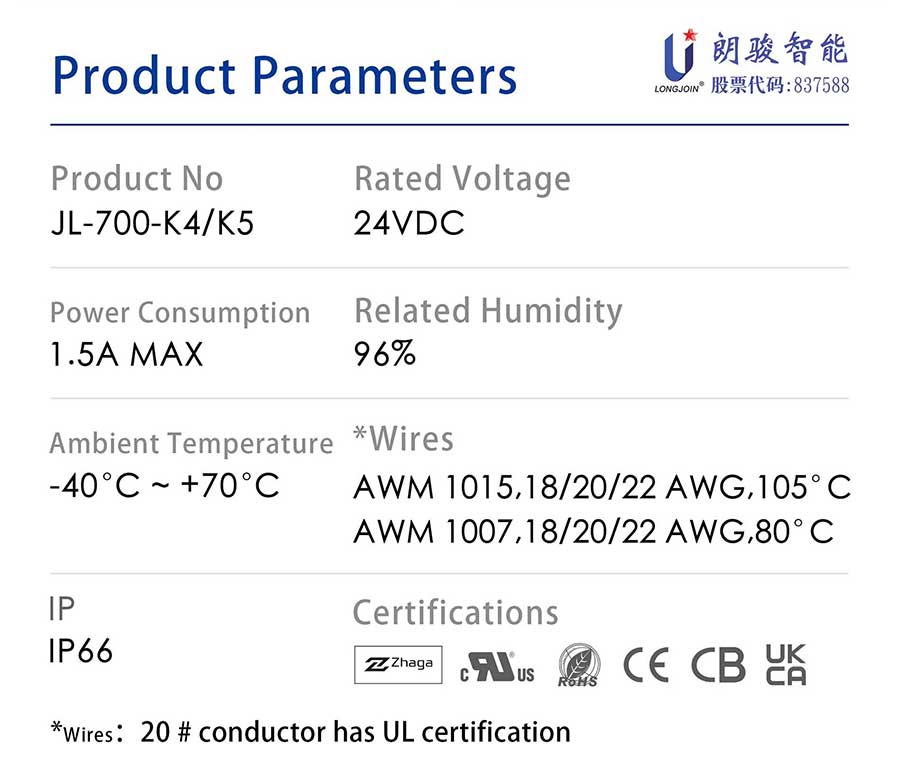

Parameter table
Line color definition

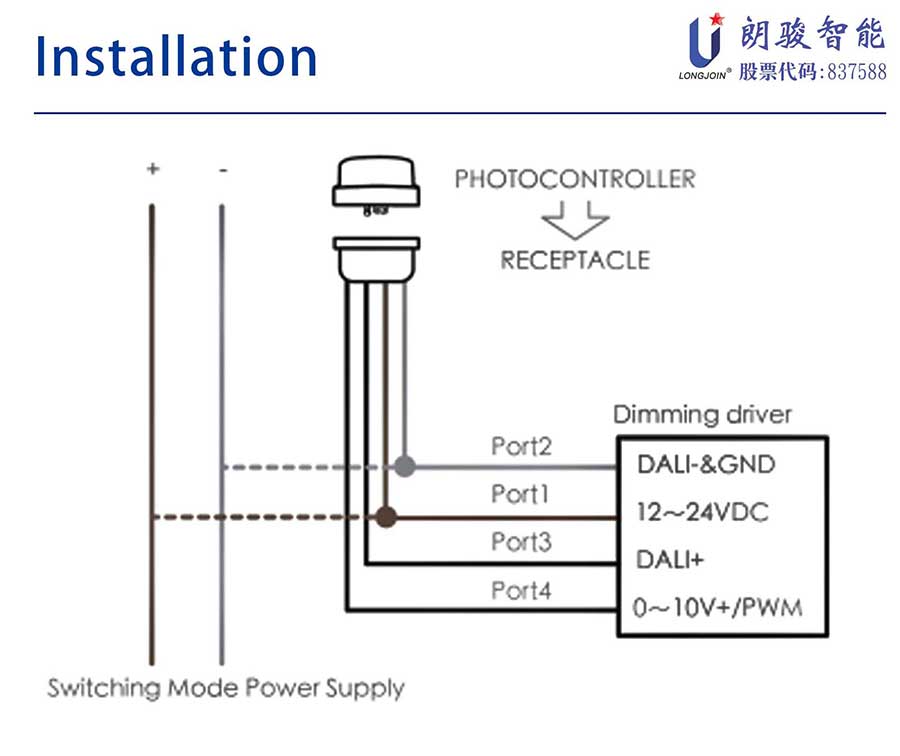

*Default Version
Port 1 (brown): 24VDC
Port 2 (gray): DALI -/GND
Port 3 (blue): DALI+
Port 4 (black): reserved I/O
*Optional version
-Port 1 (red): 24VDC
-Port 2 (black): DALI -/GND
-Port 3 (purple): DALI+
-Port 4 (yellow): reserved I/O
