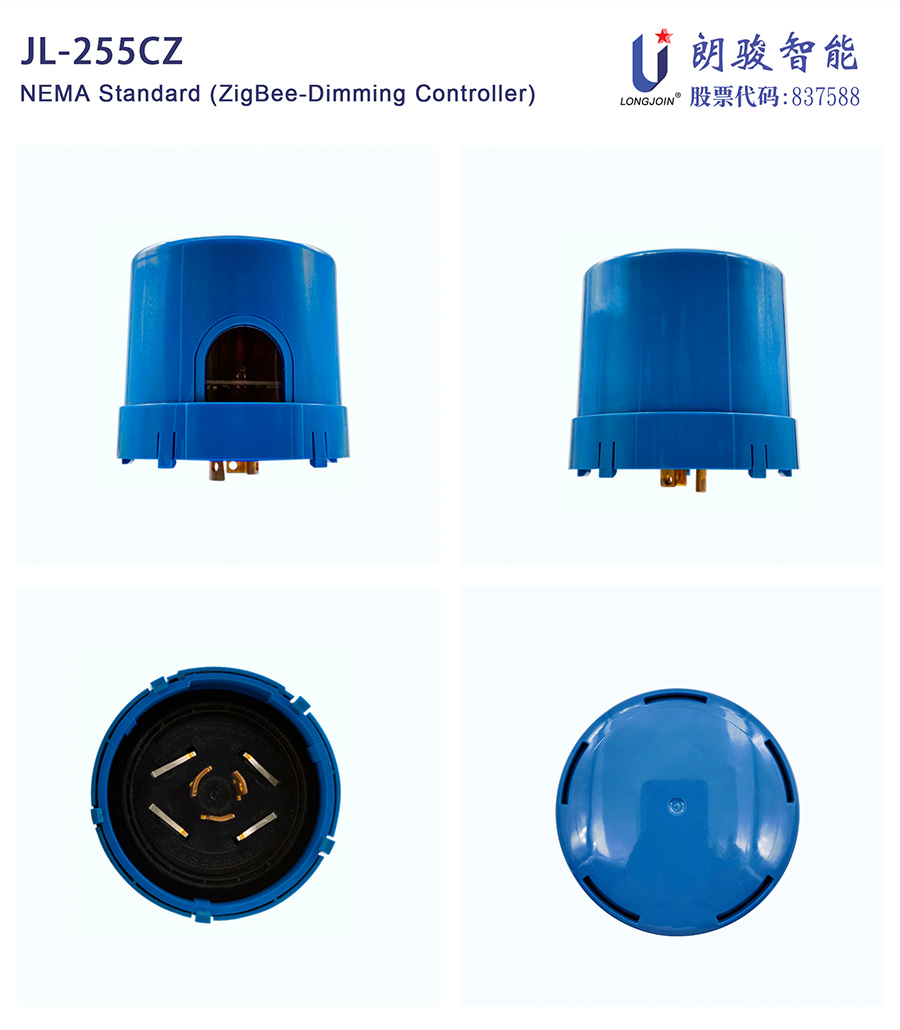

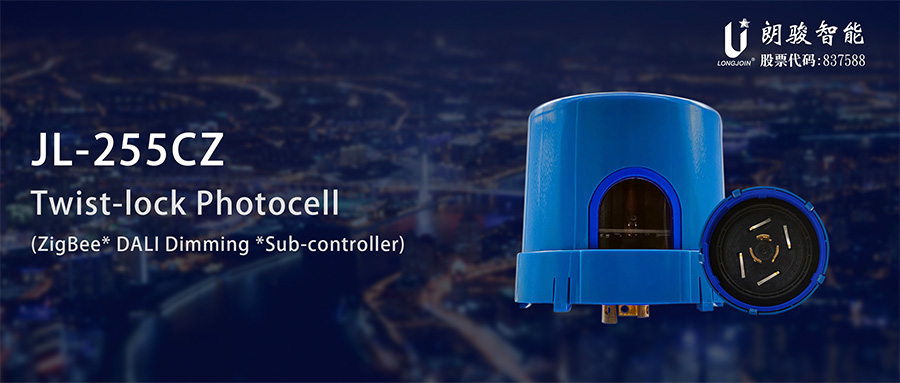

JL-255CZ NEMA Interface Twist Lock Smart Light Controller

Product Description
The JL-255CZ twist lock smart light switch is suitable for cloud control and self-control mode. It can be used in municipal roads, park lighting, landscape lighting, etc.

This product has a built-in ZigBee communication module. When used with JL-256CG (main controller), it can be remotely controlled through the UM-9900 intelligent lamp pole management system.

Product Features
· ANSI C136.41 twist Lock
· DALI Dimmming
· Surge Protection Level: 6KV/3KA Differential Mode
· Optional Double Layer Protection Housing, Long Service Life
· Wide Voltage Application
· IP67
· IR-filtered phototransistor

Product Parameter

Installation Instructions
· The interface of the product has been anti-stupid processed, and the installation only needs to directly screw the controller with the base.
As shown in the following figure, insert and tighten clockwise.
· The product supports hot swapping.
· In the system network application, you can batch import the light controller information into our intelligent lighting management system through the web side in advance, or use WeChat “UM9900 Smart Lamp Pole” public account to scan the light controller QR code label at the scene to access the light control system.

Initial Testing
· During the first installation, the light controller usually takes several seconds to turn off.
· To test “on” during the day, cover the light-sensitive window with black tape or opaque material.
· Do not cover with your fingers, because the light passing through your fingers may be enough to turn off the light control device.
· The light controller test takes about 2 minutes.

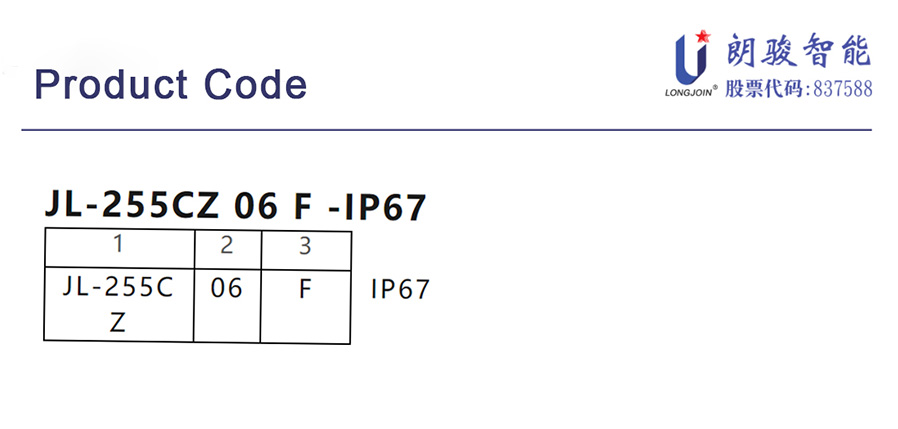

JL-255CZ 06 F -IP67
1: ZigBee Communication Module, providing SIM Card Slot
2: 06 = 6KV Lightning Protection
3: Housing Color
F = Blue    H = Black      K = Gray
