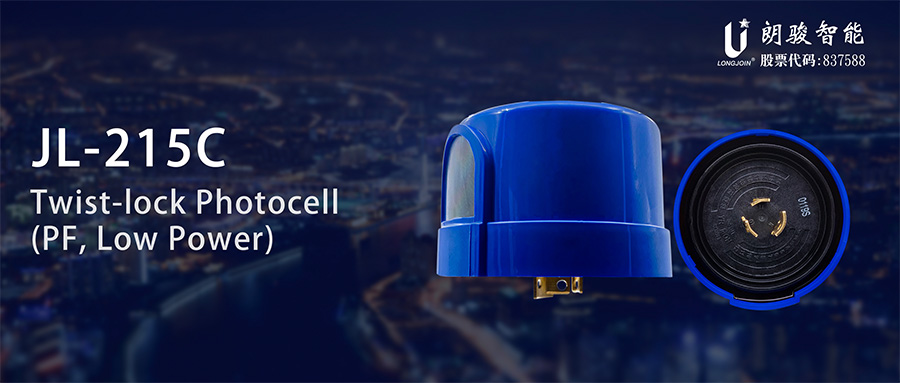

JL-215C Twist-Lock Electronic Photo Control Switch

215c-photocontroller_01

The JL-215C Twist lock analog electronic photo control switch is suitable for independently controlling street lighting, garden lighting, channel lighting, porch lighting, and park lighting according to the natural light level of the environment.

This product uses an electronic circuit design with a phototransistor and is equipped with a surge arrester (MOV).
In addition, its delay control function can avoid redundant operations caused by spotlights or lightning at night.
It has better power factor performance than the JL-205C series. This product provides three lock terminals that meet the ANSI C136.10 and ANSI/UL773 standard requirements for plug-in and rotary lock photo controllers used in regional lighting applications.

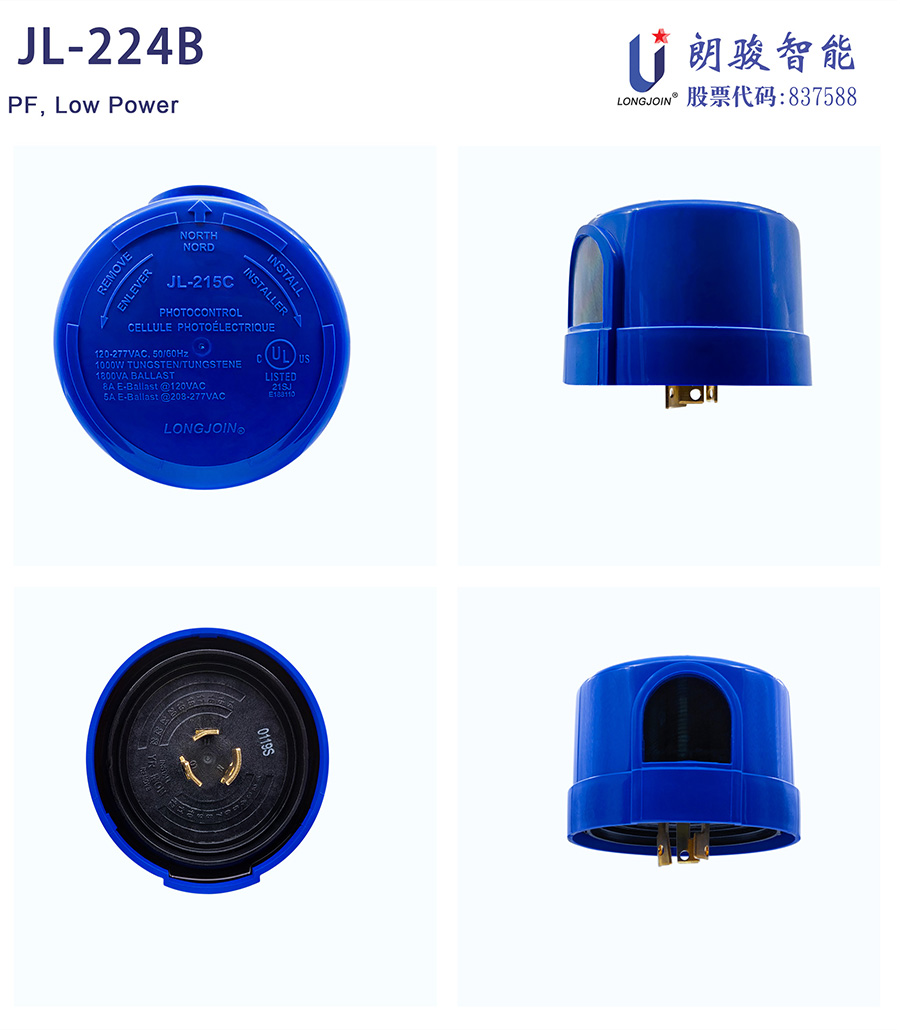

215c-photocontroller_02

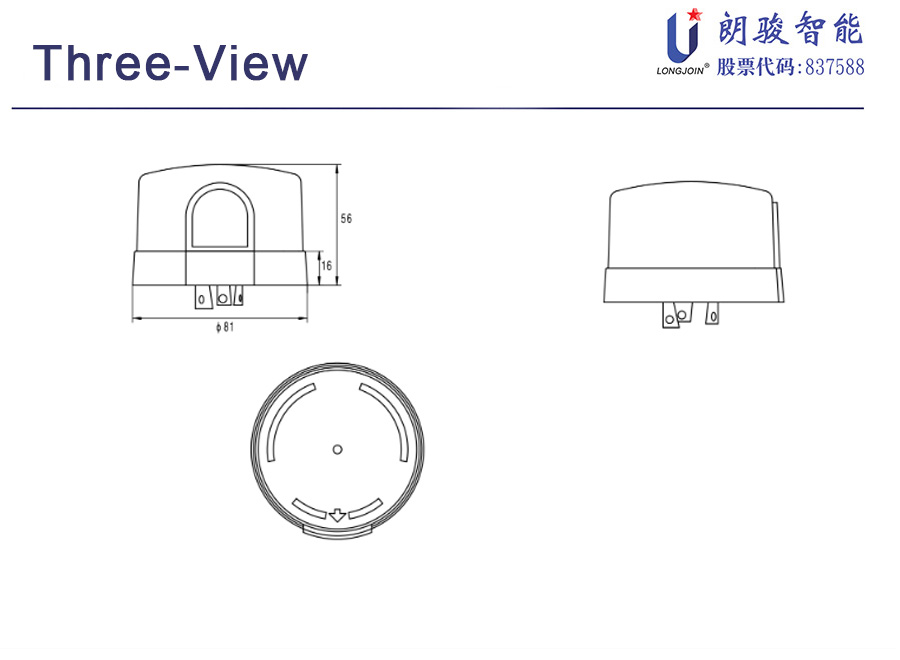

215c-photocontroller_03

Product Features
·ANSI C136.10 twist Lock
·Delay 3-20 seconds
·Built-in surge protection
·Infrared filter photosensitive tube
·Failure mode

Product Parameter

Item JL-215C
Rated Voltage 120-277VAC
Rated Frequency 50/60Hz
Work Temperature -40℃ ~ +70℃
Relative Humidity 96%
Rated Loading 1000W Tungsten,  1800VA Ballast
8A@120VAC 5A@208-277VAC e-Ballast
Power Consumption 0.5W Max
Surge Arrest optional
On/Off lux 10~30Lx   Turn-On / 30~60Lx  Turn-Off
Fail Mode Fail-On
IP Rating IP54 / IP65 / IP67
Certificate CE,UL,RoHS

Installation Instructions
*Disconnect the power supply.

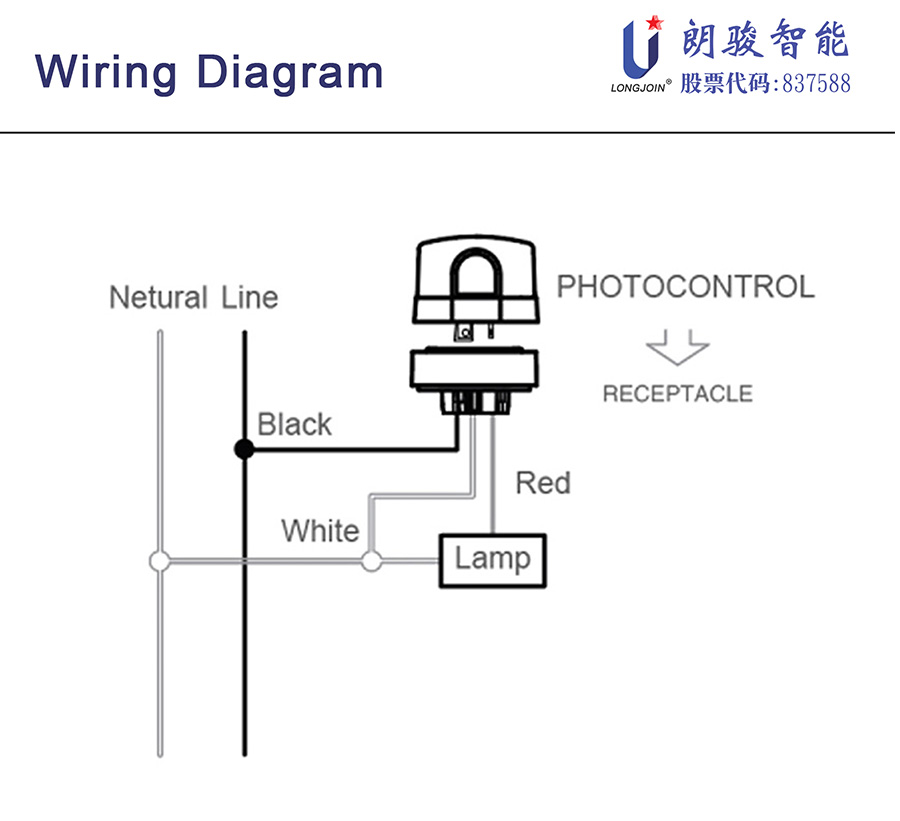

*Connect the socket according to the figure below.
*Push on the ECU and turn it clockwise to lock it in the socket.

215c-photocontroller_04



Initial Testing
*When the PECU is first installed, it usually takes several seconds to shut down.
*To test “ON” in the daytime, cover the light controller with a black bag or opaque material.
*Do not cover it with your fingers, because the light passing through your fingers may be enough to keep the light controller switch open.
*The light controller test takes about 2 minutes.

215c-photocontroller_05

1:12 = MOV 110 Joule / 3500 Amp
15 = MOV 235 Joule / 5000Amp
23 = MOV 460 Joule / 7500Amp
2: C = PC Housing
P = PP Housing
K = PP inner shell + PC housing
3: F = Blue     D = Green
Customizable
4: IP65 = Elastomeric ring + silicone outer seal
IP54 = Electronic associated foam gasket ring
IP67 = Use silicone ring + silicone inner and outer seal (including copper pin)
