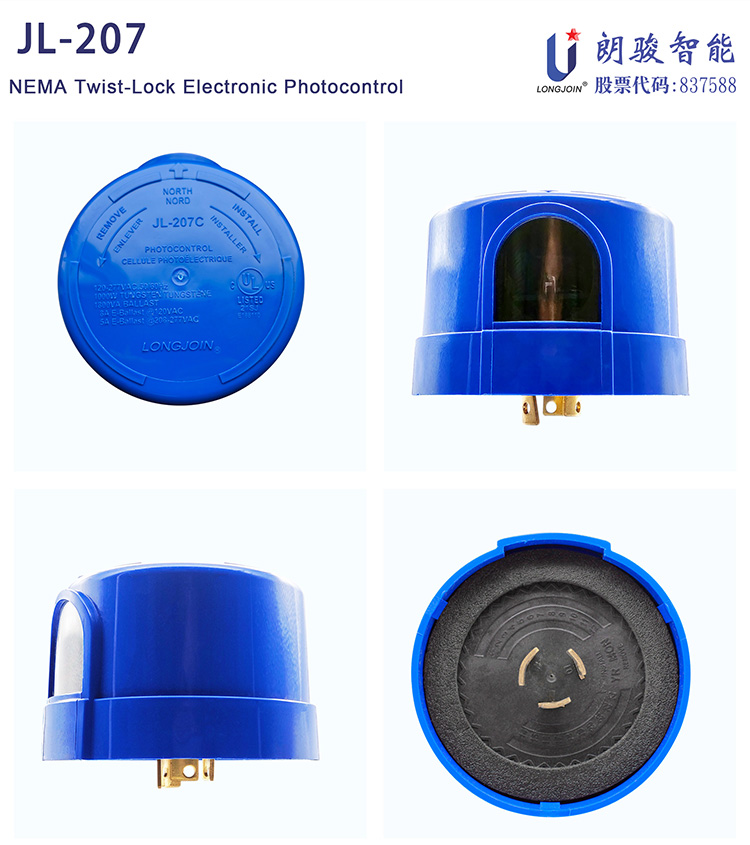

JL-207 twist lock photocell light control switch series products are applicable to the independent control of street lighting, garden lighting, passage lighting, porch lighting and park lighting according to the ambient natural lighting level, and can realize the function of lighting in the middle and night.
This series of products has designed a microprocessor circuit with infrared filter optical transistor, and is equipped with a surge arrester (MOV). In addition, the preset 5-20 second time delay control function can avoid redundant operation caused by spotlight or lightning at night.
The long-life version can maintain constant and reliable characteristics. The relay can have more than 10000 working life cycles. When a double-layer protective shell is installed, it can provide a longer working life for JL-207. HP version can provide higher load.
This series of products provides three lock terminals, which meet the requirements of ANSI C136.10 and ANSI/UL773 standard for plug-in and rotary lock optical controllers for area lighting.

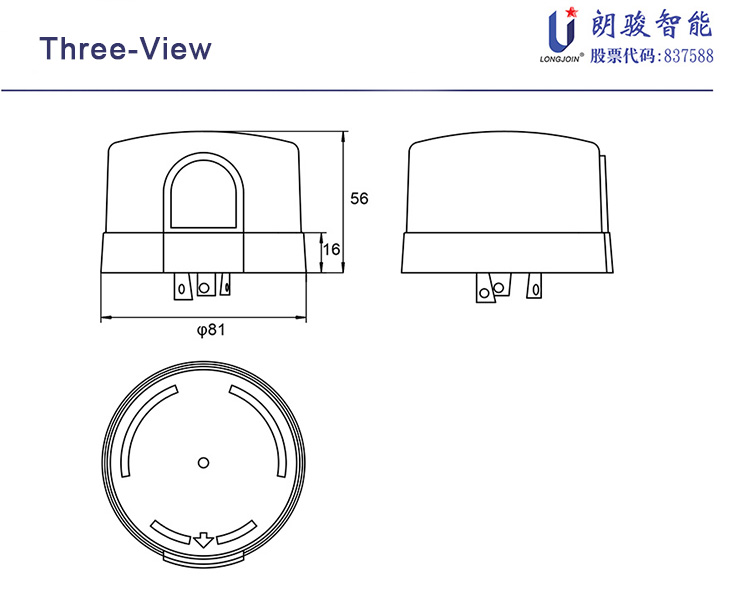

Three-view
Product features
·ANSI C136.10 twist lock
·Available customizable
·Built-in surge protection
·Infrared filter photo-transistor
·Optional failure mode on/off
·UV resistant housing
·Midnight light
·Zero crossing protection
·Supports FCC Class A/Class C
Product Parameter
Model No. | JL-207C5 | JL-207C4 | JL-207C5HP | JL-207C4HP | JL-207E5 | JL-207E4 | JL-207F5 | JL-207F4 |
Rate Voltage | 120-277VAC | 347VAC | 480VAC | |||||
Rated | 50/60Hz | |||||||
Voltage | ||||||||
Related | 96% | |||||||
Humidity | ||||||||
Ambient | -40℃~+70℃ | |||||||
Temperature | ||||||||
Failure | Fail-On | Fail-Off | Fail-On | Fail-Off | Fail-On | Fail-Off | Fail-On | Fail-Off |
mode | ||||||||
Rated Loading | 1000W Tungsten; | 1800W@120VAC | 1800W Tungsten; | 1800W Tungsten; | ||||
1800VA Ballast; | 2000W@208-277VAC | 1800VA Ballast; | 1800VA Ballast; | |||||
8A@120VAC | Tungsten; | 5A e-Ballast | ||||||
5Aa@208-277VAC | 1800VA@120VAC | |||||||
e-Ballast | 2000VA@208-277VAC | |||||||
Ballast; | ||||||||
Operate Levels | 16Lx On / 24Lx Off (Typical) | |||||||
Shell | PC/PP Sandwich cover | |||||||
material | ||||||||
Power | 0.5W Max. | 0.9W Max. | 0.5W Max. | |||||
consumption | ||||||||
High | sandwich cover(optional) | |||||||
protection | ||||||||
IP level | IP54 / IP65 / IP67 | |||||||
Zero crossing | ● | N/A | ||||||
control | ||||||||
FCC | ● | N/A | ||||||
Certifications | UL, RoHS,CE | UL, RoHS |
Installation Instructions
*Disconnect the power supply.

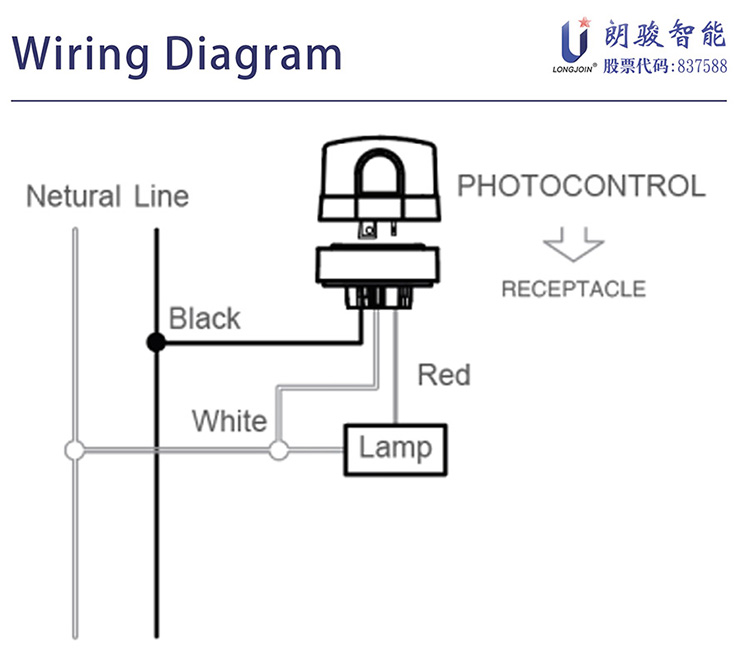

*Connect the socket according to the figure below.
*Push the photoelectric controller up and turn it clockwise to lock it in the socket.
*If necessary, adjust the socket position to ensure that the light sensing port points to the north as shown in the triangle on the top of the light controller.
Initial Testing
*Disconnect the power supply.
*Connect the socket according to the figure below.
*Push the photoelectric controller up and turn it clockwise to lock it in the socket.
*If necessary, adjust the socket position to ensure that the light sensing port points to the north as shown in the triangle on the top of the light controller.

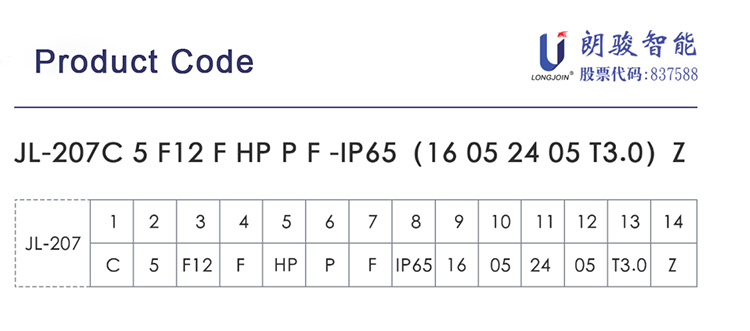

Product Code Table
1: C = 120-277VAC
E = 347VAC
F = 480VAC
2:5=light on
4=light off
3: F12 = MOV,110J/3500A
F15 = MOV,235J/5000A
F23 = MOV,460J/10000A
F25 = MOV,546J/10000A
F40 = MOV,640J/ 40000A
M4K = MOV,4KV Surge
D6K = R/C,6KV Surge
R2W = R/C,20KV Surge
A2W = A/D,20KV Surge
4: F=Conforming to the requirements of FCC electromagnetic interference specification, Class B
N=FCC compliance not verified
5: HP = Hi-Power 20Amp
S = Standard 10Amp
HV=for E/F voltage
6: P=UV stabilized polypropylene
C=UV stabilized polycarbonate
K=PP inner shell+PC shell
7: F=blue D=green H=black
K=gray optional
8: IP65=elastomer ring+silicone outer seal
IP54=Electronically associated foam washer
IP66=elastomer ring+silicone inner and outer sealing
IP67=silicone ring+silicone inner and outer sealing (including copper pin)
9: Illumination
10: Lamp on delay (seconds)
11: Illumination after turning off the light
12: lamp off delay (seconds)
13: Optional mid-night dimming (hours)
14: Z=optional zero-crossing control technology+long life
N=None
