Future-proof Upgrade Zhaga Sensor Applications

long-join is an innovative smart city street lighting solution, which professional in zhaga motion sensor and intelligent street light controllers. for example, our new issue zhaga mircrowave controller comprise motion sensor and 0-10V dimming, also had achieved promote Smart zigbee wireless remote lighting control on 2019 years etc, welcome to visit mostly related instersting innovative product.



Ensuring that luminaires are sfuture-proof and ready to host diverse smart city lighting, IoT applications and Home life applications. the Long-Join lighting solution complies with the standardized Zhaga Book 18 standard interface. currently, with NB-IOT Wireless JL-711N zhaga control, and with motion sensor JL-712A3 zhaga sensor.



JL-712A3 Zhaga Microwave Motion Senor Work Schematic

Work Schematic:

When the objects triggering microwave sensing range radius 4-8m, so offers illumination and creates a safe circle of light around an occupant.



Amazing! what do you know how to zhaga motion sensor control led fixture lighting? I am sure , when The target enters the microwave induction range 8-16m radius of around circle area, and the LED illumination brightness will produce different stages and continuous lighting times.



》》The target triggers the microwave induction circle, and the lighting brightness of the lamp changes in 1s: 20%-100%

》》When the target moves (under the induction circle shape affected), the brightness of the lamp lighting changes within 30s: 100%.

》》The target is static or wait stages (under the induction circle shape affected), and the lighting brightness of the lamp changes over 30s: 100%

》》The target leaves (under nothing affected on sensing area ), the brightness of the lighting changes after 30s: X-20% ), the brightness of the lighting changes after 30s: X-20%



Work Principle Diagram

**JL-712A3  Microwave motion Zhaga Sensor Schematic Diagram

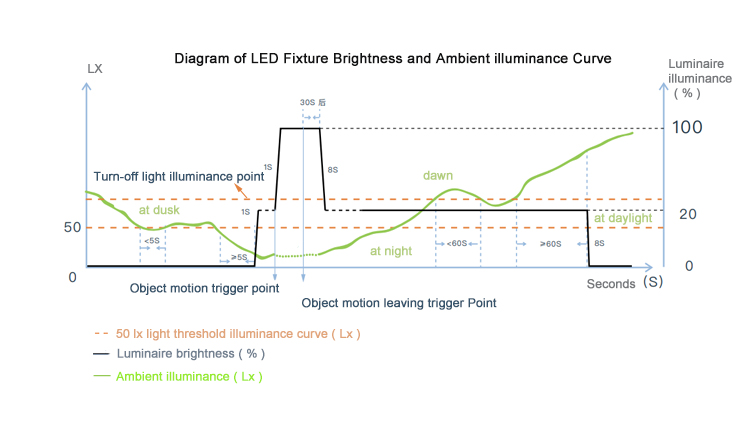

**Diagram of LED Fixture Brightness and Ambient illuminance Curve

JL-712A curve

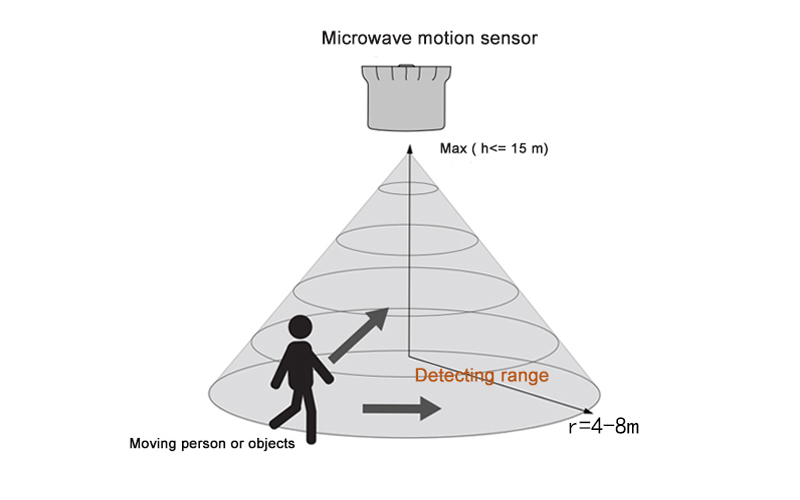

Schematic diagram of microwave induction

microwave sensor

We Would Provide Partial Sample Products to Delight Your Customer

So below display related in Zhaga Series parameter datasheet, and may you can purchase arrival sample. my god, only one opporture and only win sharing best discount service (factory price in salle).

Model

Dimming

Outpour

Sensor

type

Midnight

reduce

brilliants

Communication

type

Diameter*height(mm)

Purchasing Sample

JL-701A

0/10V

  • optic

-

-

50*20

Y

JL-711A2

0-10V

  • optic

direct factory preset

-

50*20

Y

JL-711B

0-10V

  • optic

available customized

bluetooth

50*36

-

JL-711W

0-10V

  • optic

available customized

wifi

50*36

-

JL-711Z

0-10V

  • optic

available customized

zigbee

50*36

-

JL-711G

0-10V

  • optic

available customized

zigbee+LTE

85*36

-

JL-721A2

DALI

  • optic

direct factory preset

-

50*20

Y

JL-721B

DALI

  • optic

available customized

bluetooth

50*36

-

JL-721W

DALI

  • optic

available customized

wifi

50*36

-

JL-721Z

DALI

  • optic

available customized

zigbee

50*36

-

JL-721G

DALI

  • optic

available customized

zigbee

85*36

-

JL-731A2

PWM

  • optic

direct factory preset

-

50*20

Y

JL-731W

PWM

  • optic

available customized

wifi

50*36

-

JL-731B

PWM

  • optic

available customized

bluetooth

50*36

-

JL-731Z

PWM

  • optic

available customized

zigbee

50*36

-

JL-731G

PWM

  • optic

available customized

Zigbee+TLE

85*36

-




Post time: Oct-15-2020
