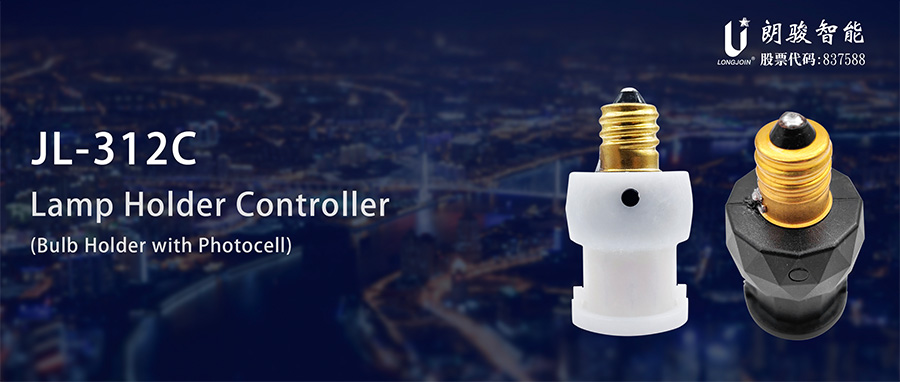

Candle Holder type 120V Bulb Holder Lamp with Photocell JL-312C

JL-312C-bulb-lamp-photocell_01
Product Description
The JL-312C Candlestick Lamp Holder Universal Electronic Light Control Switch is an intelligent candle holder lamp light controller developed based on the E26 lamp holder. This product is suitable for autonomously controlling candlestick bulbs according to the ambient lighting level, and is also compatible with CFL/LED bulbs.

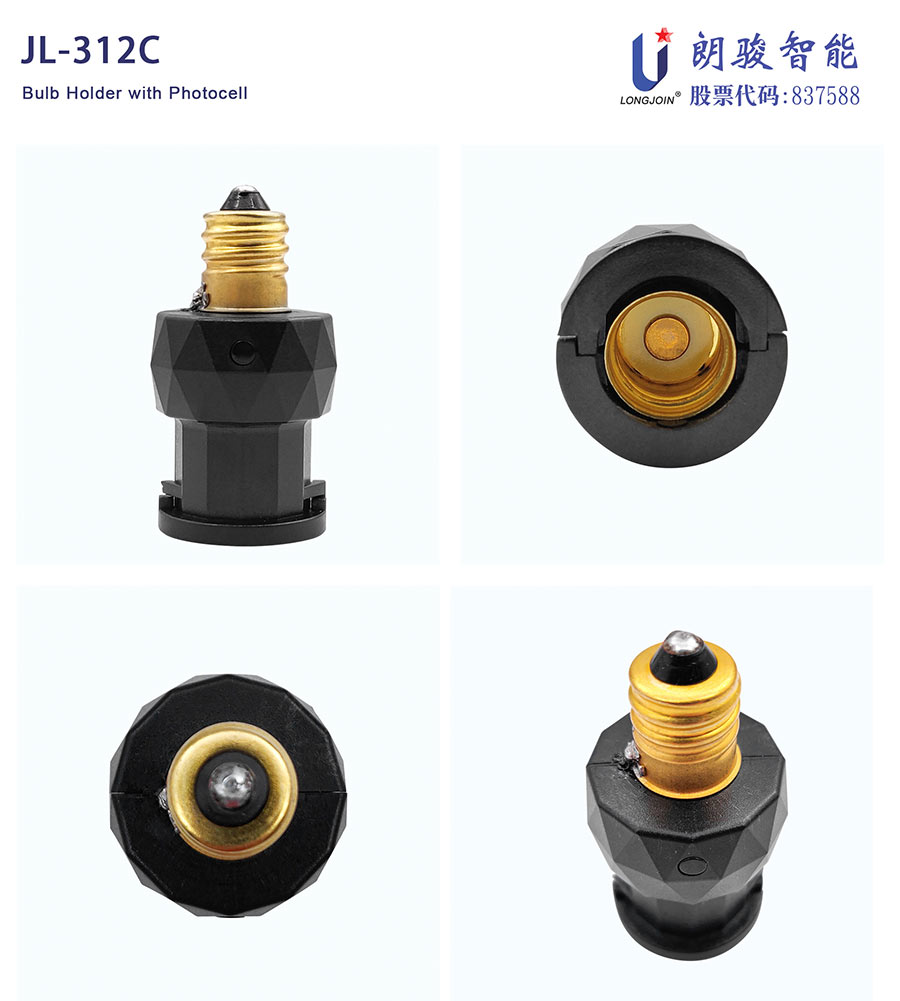

JL-312C-bulb-lamp-photocell_03

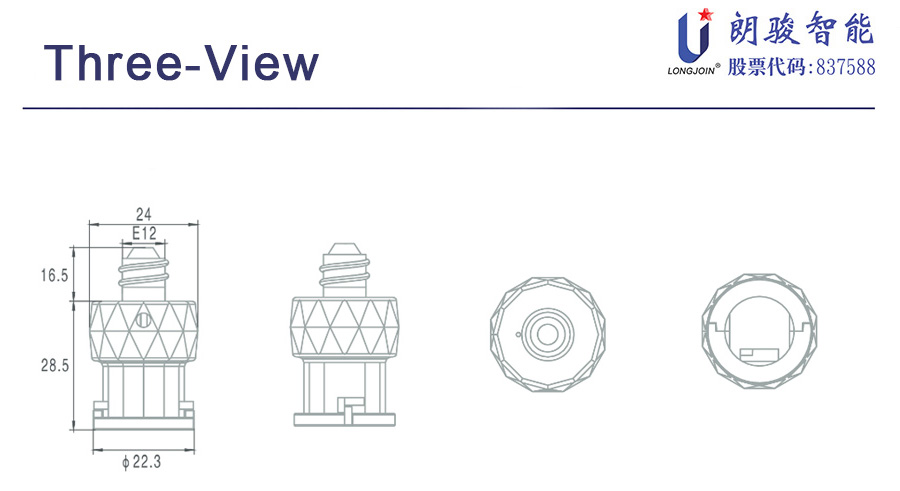

JL-312C-bulb-lamp-photocell_04



Product Features
* Standard E12 interface
* self-inductive light switch
* It is perfect suitable for CFL/LED

Parameter Lists

Item JL-312C
Rated Voltage 120VAC
Rated Loading 60w Tungsten

0.5A e-Ballast

Power Consumption 0.5W Max
Rated Frequency 50/60Hz
Turn On Level 16 Lx(+/-)
Turn Off Level 64 Lx(+/-)
Ambient Temperature -40℃ ~ +70℃
Related Humidity 96%
Screw Base Type E12
Fail Mode Fail-off
Zero Crossing Control Built-in

Installation Instructions:
   1. Turn off the power.
   2. Twist off the light bulb.
   3. Screw the photo control switch fully into the lamp socket.
   4. Screw the light bulb into the bulb holder of the photo control switch.
   5. Connect the power and turn on the light switch.

* During installation, do not aim the photosensitive hole towards artificial or reflective light, as it may cycle on or off at night.
* Avoid using this product in opaque glass lamps, reflective glass lamps, or wet areas.

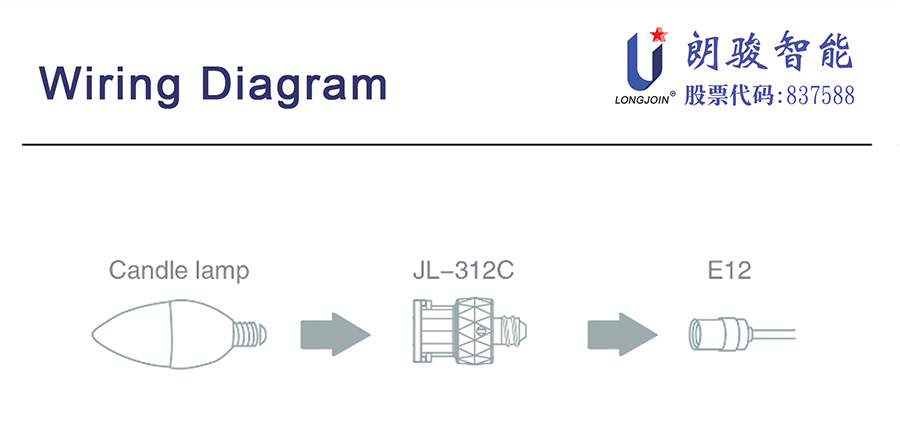

 JL-312C-bulb-lamp-photocell_05



 Initial Testing:
When first installed, the light controller usually takes a few minutes to turn off. To test “on” during the day, cover the photosensitive window with black tape or opaque material. Do not cover it with your fingers, as the light passing through your fingers may be enough to turn off the light control device. The light controller test takes about 2 minutes.

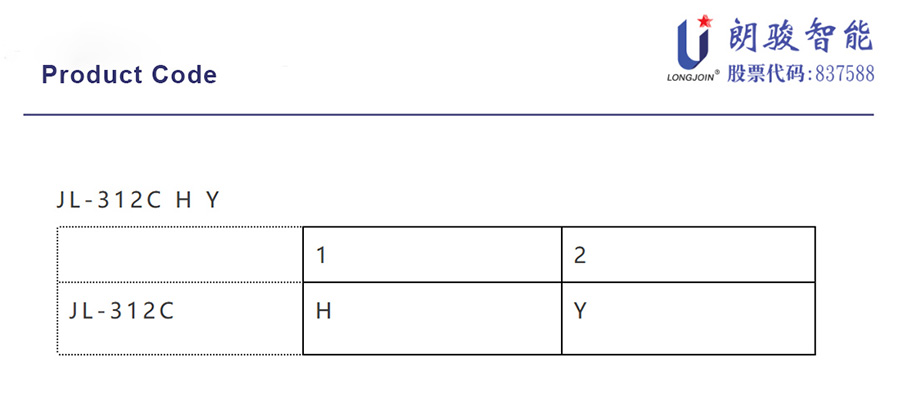

JL-312C-bulb-lamp-photocell_06

JL-312 H Y
1:Enclosures colors
H= Black cover    K= gray cover    N=brazon cover    J=white cover
2: Y=Silver lamp holder
null=Gloden lamp holder


Post time: Mar-18-2024
