Button type 103 Photocell Sensor 120V

The JL-103 series of wired thermal photocontrollers are suitable for autonomously controlling channel and porch lighting according to ambient lighting levels. This series of products is UL certified and complies with the lighting control UL773A “Non-industrial Photocontrol Switch” standard. (here not include FE type)

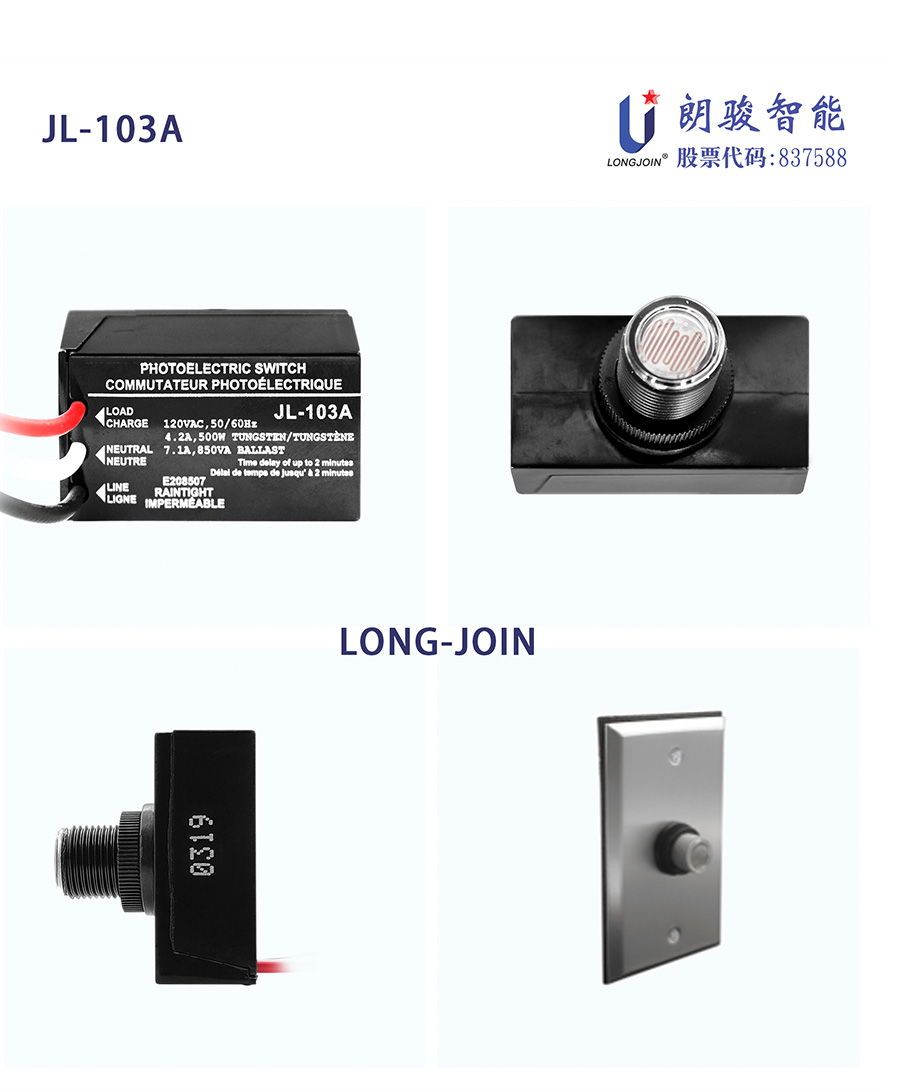

Appearance

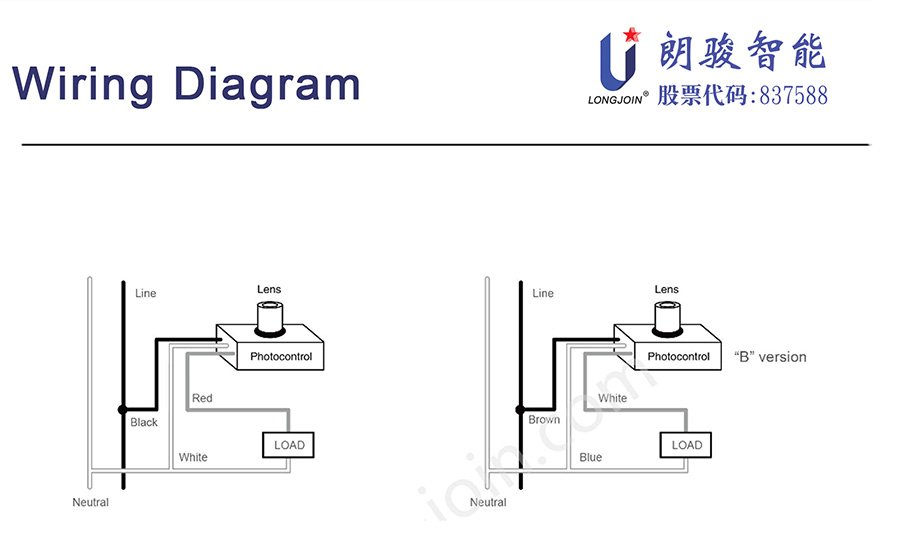

button photocell sensor how to use Wiring

here an button type contoller feature

** support different voltage, also you can IP rating degree  cap;\

* available choose color cap

* UKCA standard wire color

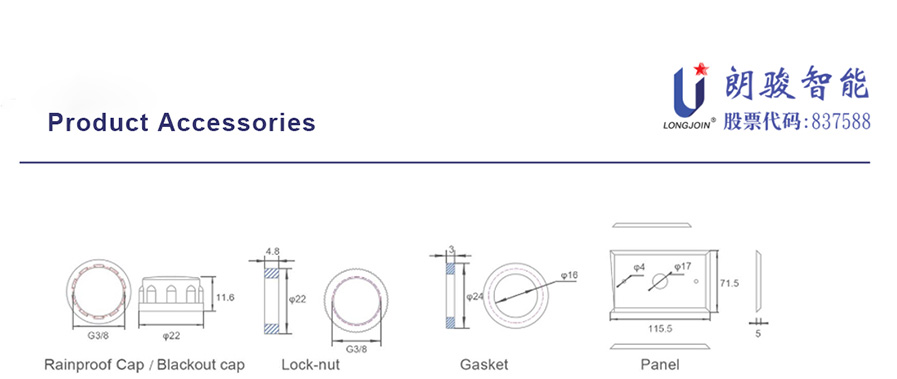

Install instruction
Turn off the power and remove the junction box cover. After threading the light control switch through the hole from inside out with a waterproof rubber ring, secure it tightly on the outside using a plastic lock-nut. When installing the light fixtures, ensure that the photocell is not facing artificial light sources or their reflections to prevent the lights from turning on and off repeatedly at night.

Initialization setting
*When the light control switch is first installed and powered on, it will initially turn on and remain lit for about one minute before turning off. This is normal.
*When testing the switch during the day to make the light turn on, cover its photocell with black tape or another opaque material.
*Do not use your finger to cover the photocell, as light passing through the gaps between your fingers may be enough to keep the light control switch in the off position.
*The test duration should be approximately 2 minutes.
*The operation of this switch is not affected by weather, humidity, or temperature changes.

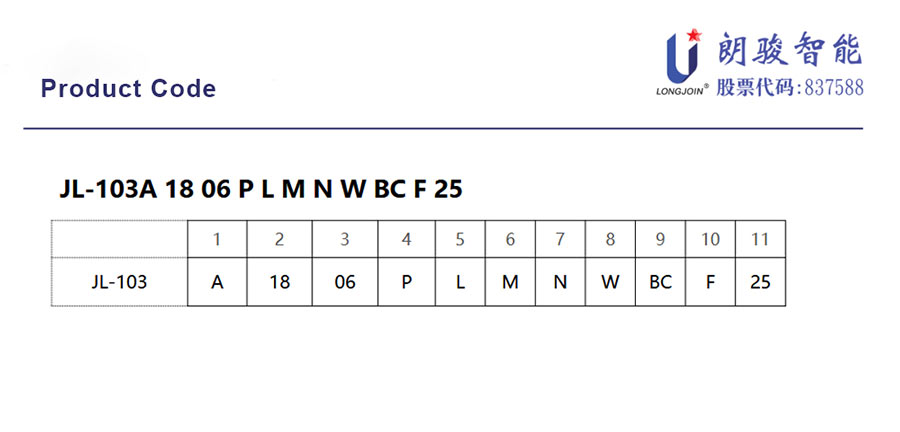

A=120VAC
B=120~240VAC
C=208~277VAC
FE =480VAC

Lead Rating
18=18 AWG, 105ºC rated, for models with rating of 500 W use only
16G=16 AWG, 150ºC rated

P = Wire outlet on the smallest wal
Null = Wire outlet on the largest wall
