Shanghai LONG-JOIN provider generic version Receptacle series, such as 230 standard, and 230F. it is signification feature rotatable in limited ranges, just so you can twist photocontrol base any location directional point. this series receptacle having special feature below:

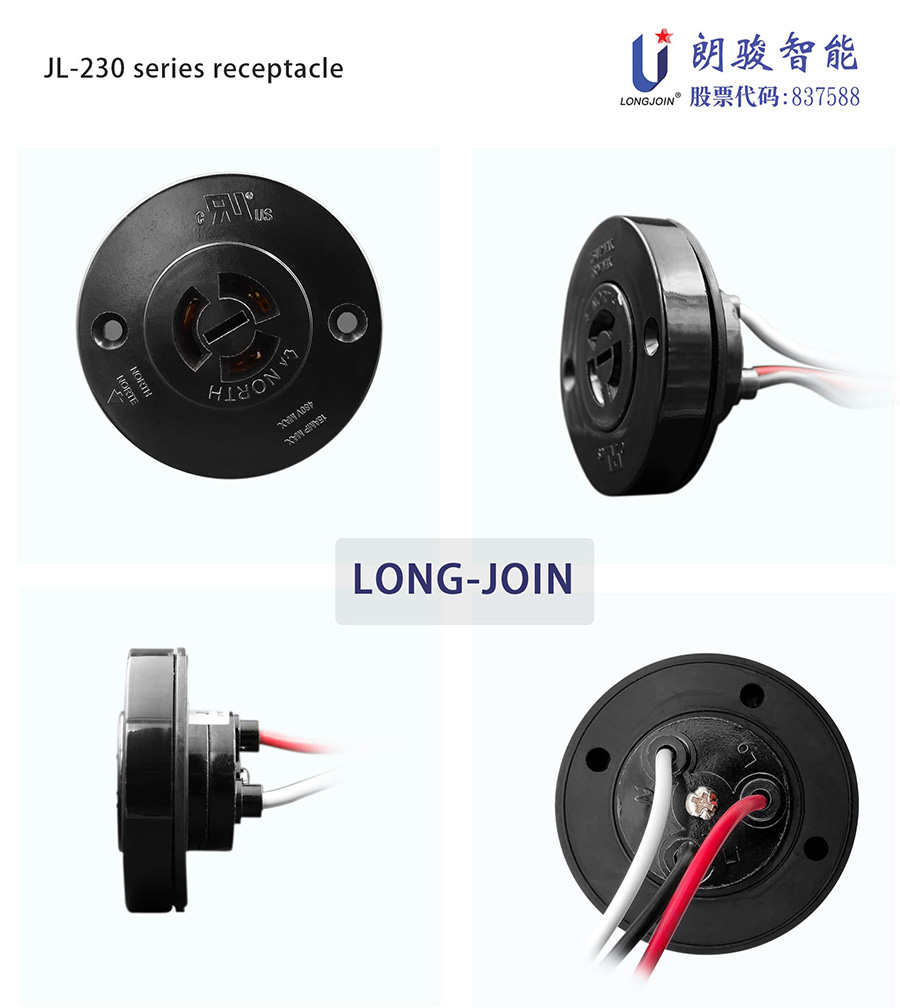

Receptacle Series 230 standard
* Bakelite body for long-life service
* Nylon holder prevents cracks
* The screw can be loosened to find the north, making it convenient for the installation of the light controller.
Receptacle series 230F
* add a layer in the receptacle terminal waterproof glue.
* the same rotatable function with 230 standard version.
| Number | JL-230(F) |
| Rated Voltage | - |
| Applicable Voltage Range |
0-480VAC |
| Rated Frequency | 50/60Hz |
| Signal Control | 0-30 VDC, 250 mA Max |
| Wire Gauge | 16AWG, 14AWG, 6inch |
| Operate Levels | 40°C ~ +70°C |
| Load Rating | 15A |
| Certificate | UL, CE,ANSI C136.41 |

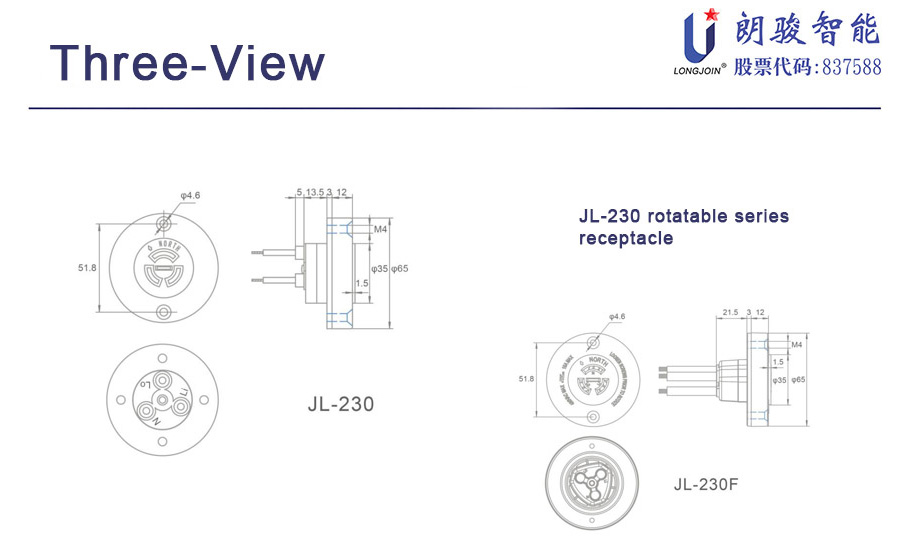

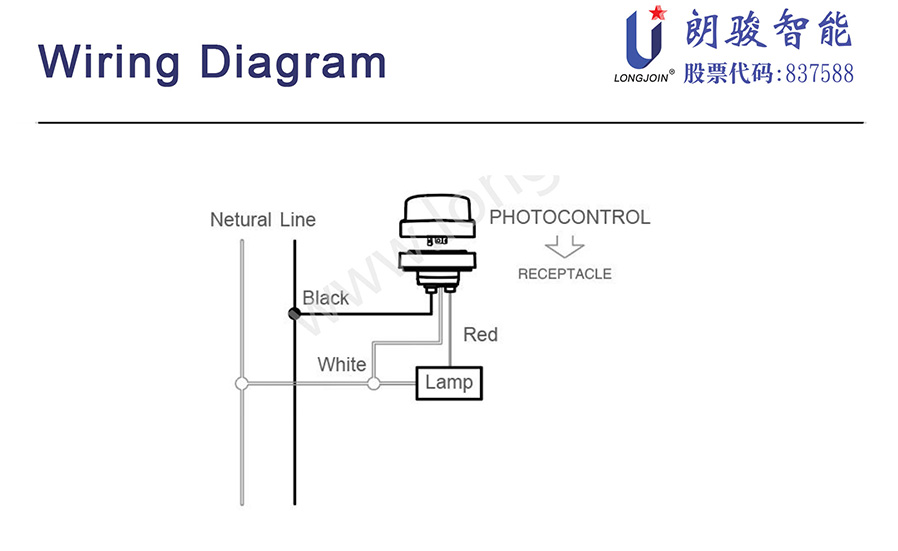

Disconnect power; wire the receptacle according to the diagram in below.
An arrow indicating NORTH on the top of the receptacle is used to assist correct orientation. Adjust the receptacle position by loosening screws and fasten them after its redirected.

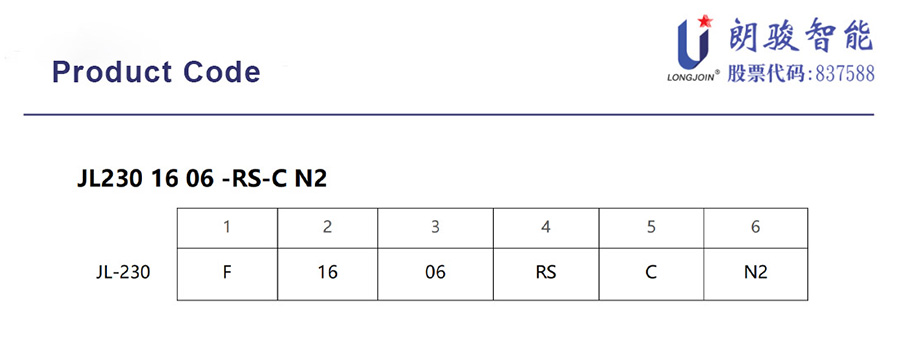

1: Model Number
F=Waterproof Version
2: Lead Rating
16=16 AWG, 105ºC rated
14=14 AWG, 105ºC rated
14G=14 AWG 150 ºC rated
16G=16 AWG 150 ºC rated
3: Lead Length
06= 6″ (Customizable, 06 Min.)
F=Waterproof Version
2: Lead Rating
16=16 AWG, 105ºC rated
14=14 AWG, 105ºC rated
14G=14 AWG 150 ºC rated
16G=16 AWG 150 ºC rated
3: Lead Length
06= 6″ (Customizable, 06 Min.)
