NEMA Standard Connector

All the JL-240 series photocontrol receptacles were designed for the lanterns those intended to have an ANSI C136.10-2006 receptacle to fit a twist-lock photocontrol, Also Jl-200 series photocell receptacle were designed Compliant Standard ANSI C136.10-1996.

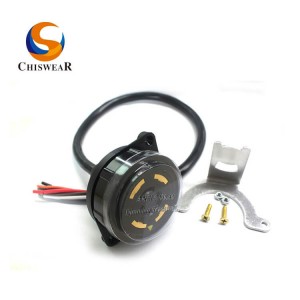

NEMA 7 PIN Twist Lock and Rotatable Photocontrol Receptacle JL-260D2

1. Product Model: JL-260D2
2. Rated Voltage: 0-480VAC
3. Flammability Rating: UL94-0
4. Material: PBT Cover and Add UV Stabilizer
5. Compliant Standard: ANSI C136.41, CE, ROHS, UL

inquiry detail

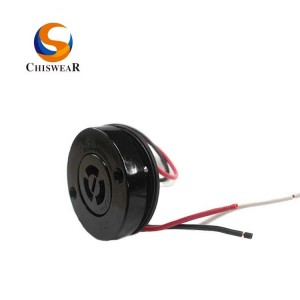

Twist lock 3 PIN Photocontrol Receptacle JL-200X

1. Product Model: JL-200X
2. Rated Voltage: 0-480 VAC
3. Material: Phenolic socket
4. Contact Material: Copper nickel plated
5. Compliant Standard: CE, ROHS, UL

inquiry detail

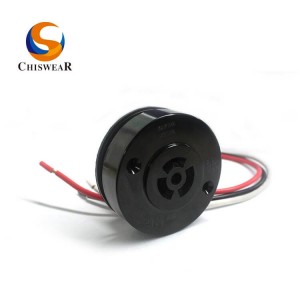

Exterior Light Luminaires Rotate Twist Lock 3 PIN Photocell Receptacle JL-230

1. Product Model: JL-230
2. Rated Voltage: 0-480VAC
3. Material Socket: Phenolic Socket
4. Wire Gauge: #14, #16
5. Compliant Standard: CE, ROHS, UL

inquiry detail

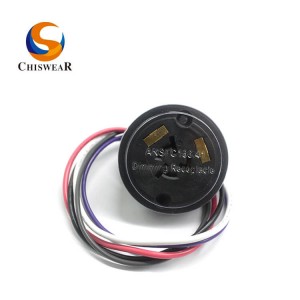

NEMA 7 PIN Photocell Receptacle JL-240XA

1. Product Model: JL-240XA
2. Rated Voltage: 0-480VAC
3. Material: PBT and Add UV Stabilizer
4. Leads Gauge: #14, #16
5. Compliant Standard: ANSI C136.41, CE, ROHS, UL

inquiry detail
ANSIC 136.41 5 PIN Photocell Receptacle JL-240XB

1. Product Model: JL-240XB
2. Rated Voltage: 0-480VAC
3. Material: PBT and Add UV Stabilizer
4. Leads Gauge: #14, #16
5. Compliant Standard: ANSI C136.41, CE, ROHS, UL

inquiry detail
ANSI C136.41 7 PIN Twist Lock Receptacle JL-260C

1. Product Model: JL-260C
2. Rated Voltage: 0-480VAC
3. Flammability Rating: UL94-0
4. Material: PBT Cover and Add UV Stabilizer
5. Compliant Standard: ANSI C136.41, CE, ROHS, UL

inquiry detail
