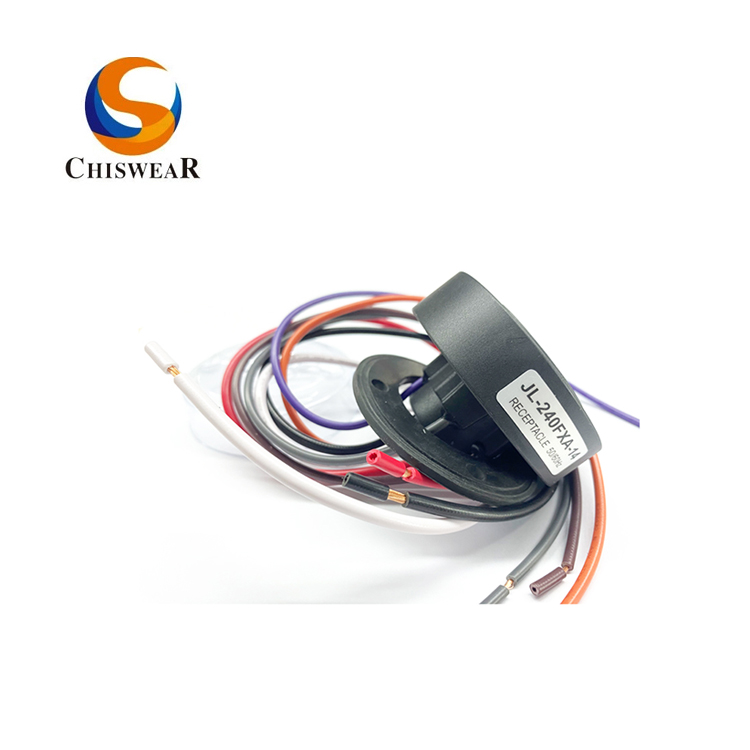

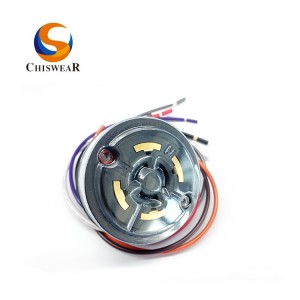

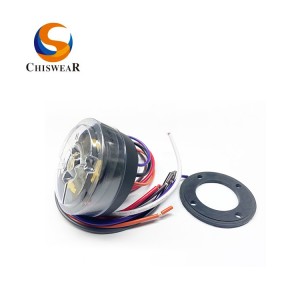

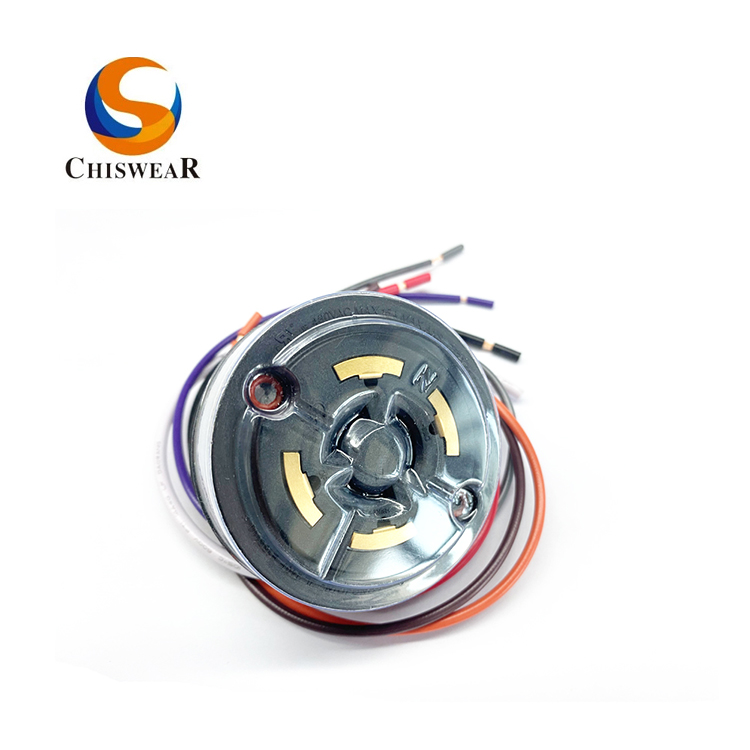

NEMA Standard 7 PIN Locking Type Photocontrol Dimming Signal Output Receptacle Max 480V

NEMA Standard 7 PIN Locking Type Photocontrol Dimming Signal Output Receptacle Max 480V Featured Image
  • NEMA Standard 7 PIN Locking Type Photocontrol Dimming Signal Output Receptacle Max 480V
  • NEMA Standard 7 PIN Locking Type Photocontrol Dimming Signal Output Receptacle Max 480V
  • NEMA Standard 7 PIN Locking Type Photocontrol Dimming Signal Output Receptacle Max 480V
  • NEMA Standard 7 PIN Locking Type Photocontrol Dimming Signal Output Receptacle Max 480V
  • NEMA Standard 7 PIN Locking Type Photocontrol Dimming Signal Output Receptacle Max 480V
  • NEMA Standard 7 PIN Locking Type Photocontrol Dimming Signal Output Receptacle Max 480V

Short Description:

1. Product Model: JL-240FXA
2. Rated Voltage: 0-480VAC
3. Flammability Rating: UL94-0

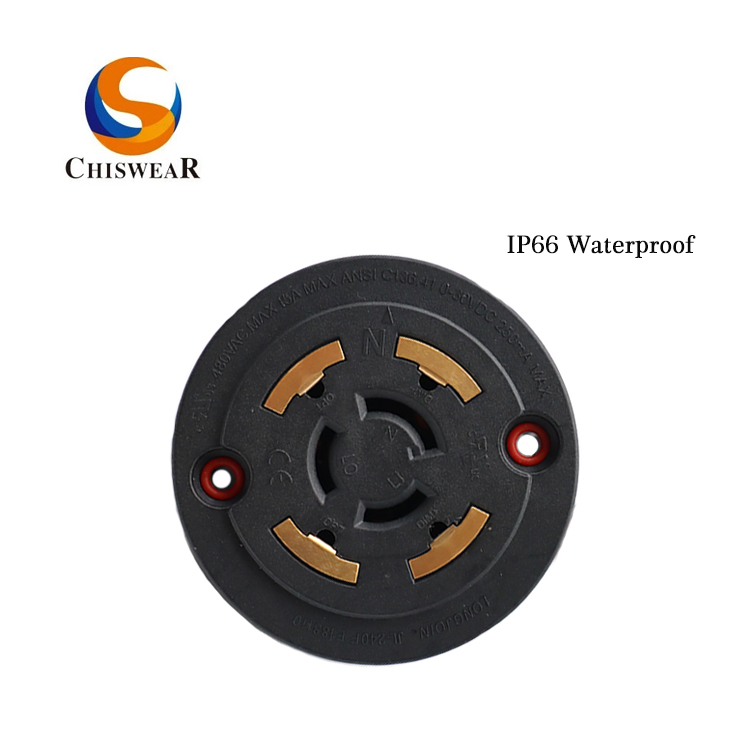

4. IP Rating: IP66
5. Material: PBT Cover and Add UV Stabilizer
6. Compliant Standard: ANSI C136.41, CE, ROHS, UL


Download as PDF

Product Detail

Video

Product Specification

Get Detailed Prices

Product Tags

Feature
1. ANSI C136.41-2013.
2. UL / CUL CE ROHS.
3. Internal / External waterproof for fixture.
4. Highlights North pointer.
5. Patented Floating knob ensures twist-lock prior to orientation.
6. Compare with photocontrol receptacle manufacturer, the more strength waterproof, the more sturdy.

  • Previous:
  • Next:

    • Product Model JL-240FXA
    Applicable Volt Range 0~480VAC
    Rated Frequency 50/60Hz
    Power Loading AWG#14: 15Amp max. / AWG#16: 10Amp max.
    Optional Signal Loading AWG#18: 30VDC, 0.25Amp max
    Ambient Temperature -40℃ ~ +70℃
    Overall Dimensions (mm) 65Dia.x 40 65Dia.x 67

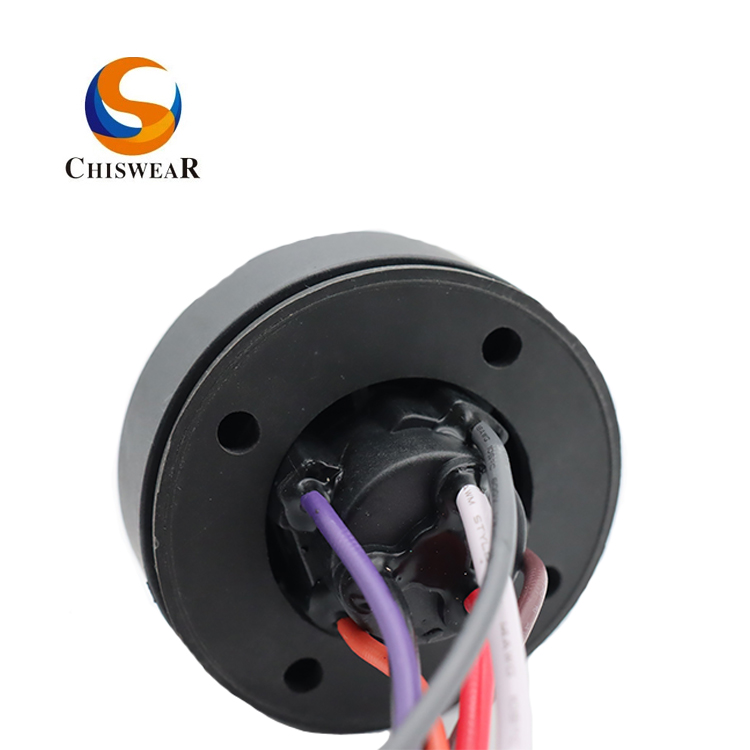

    Rear Cover R option
    Leads 6″ Min. (See Ordering Information)
