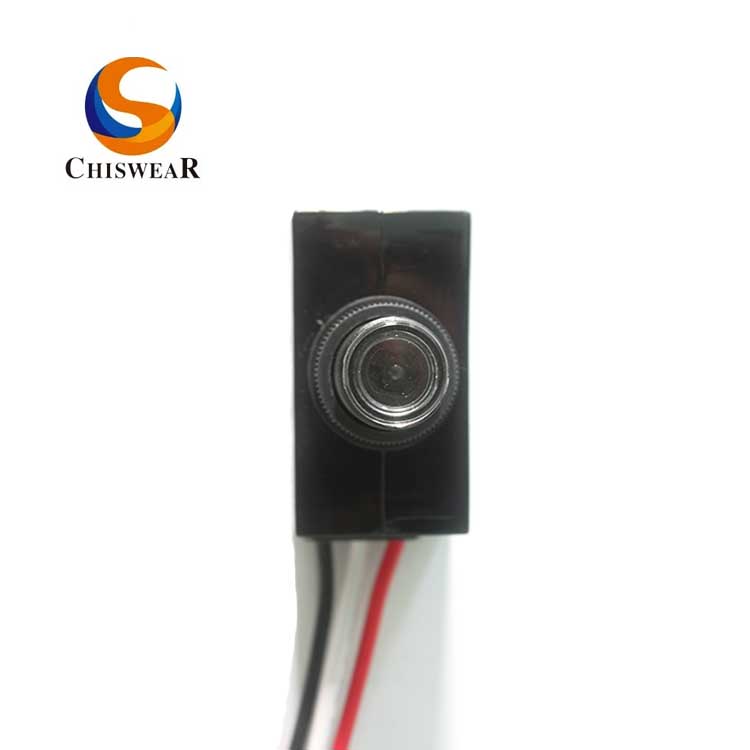

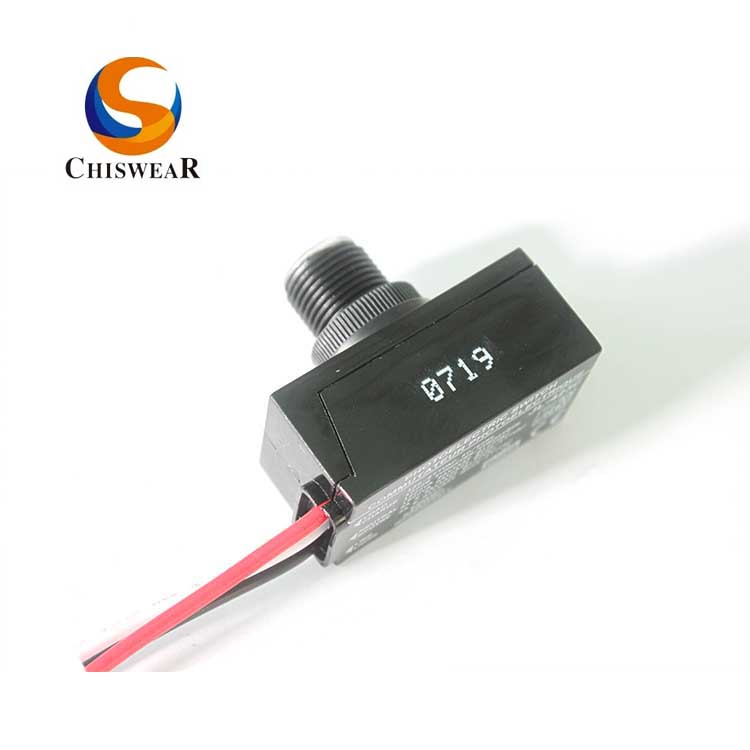

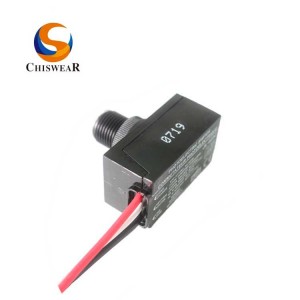

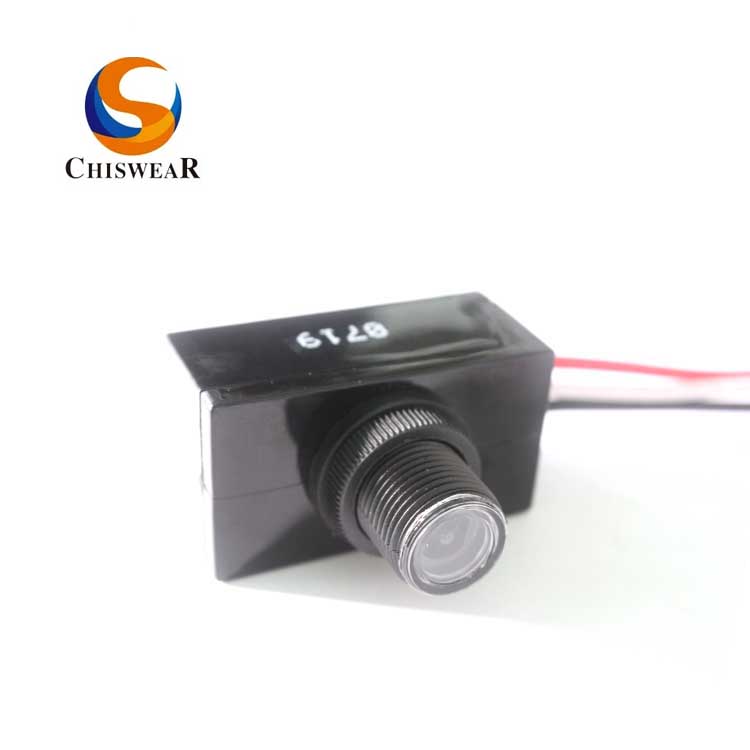

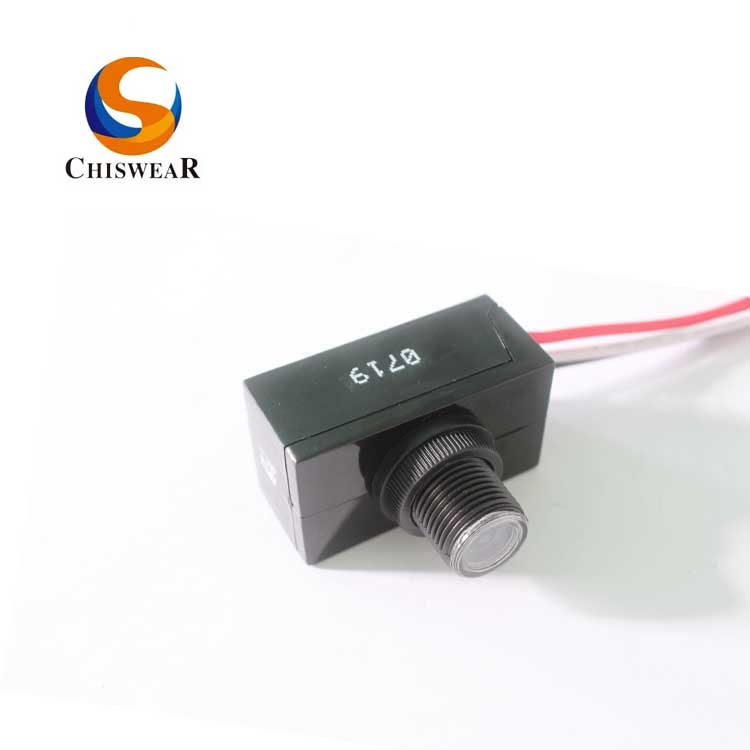

The photoelectric switch JL-423C is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.
Feature
1. Designed with electronic circuits with MCU incorporated.
2. 5 seconds time delay for quicker response to test
And avoid sudden accidents(spotlight or lightning) affecting normal lighting at night.
3. Model JL-423C provides a wide voltage range for customer applications under almost power supplies.
4. JL-423C-M provides surge protection feature up to 460J/10kA.
|
Product Model |
JL-423C/M |
|
Rated Voltage |
120-277VAC |
|
Rated Frequency |
50/60Hz |
| Rated Loading |
1000W Tungsten, 1200VA Ballast@120VAC 1000WTungsten 1800VA Ballast@208-277VAC 8A(960VA) E-Ballast@120VAC 5A E-Ballast@208~277V |
|
Power consumption |
0.4W max |
|
Operate Level |
16Lx On ;24Lx Off |
|
Ambient Temperature |
-30℃ ~ +70℃ |
|
IP Grade |
IP65 |
|
Overall Dimensions(JL-423C) |
54.5(L) x 29(W) x 44(H)mm |
|
Overall Dimensions(JL-423CM) |
54.5(L) x 29(W) x 50(H)mm |
|
Leads Length |
180mm or Customer request (AWG#18) |
|
Fail Mode |
Fail-On |
|
Sensor Type |
IR-Filtered Phototransistor |
|
Midnight Schedule |
Available per client’s request |
