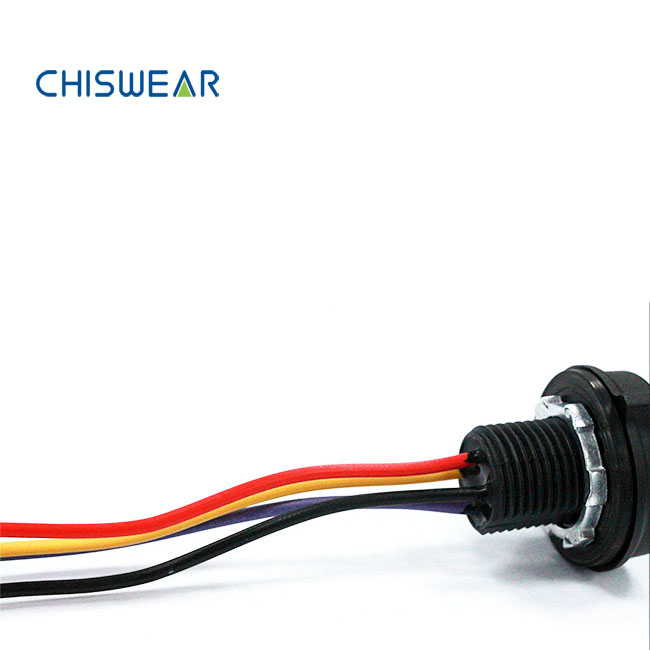

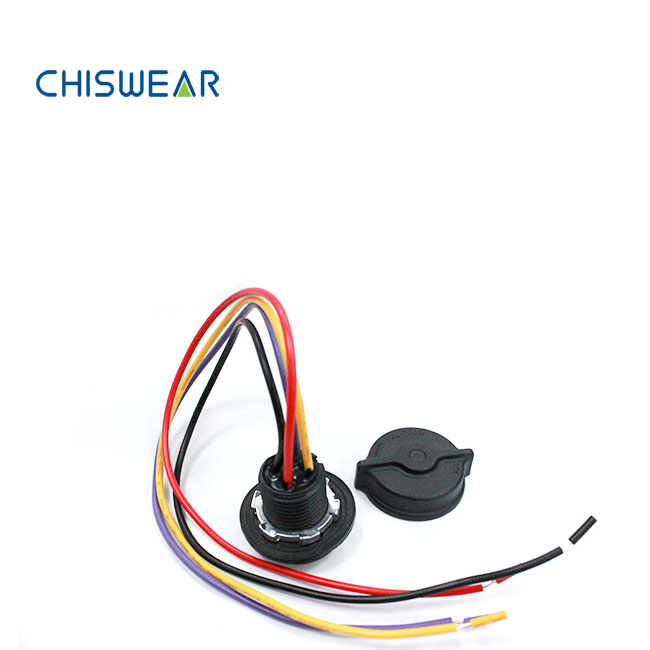

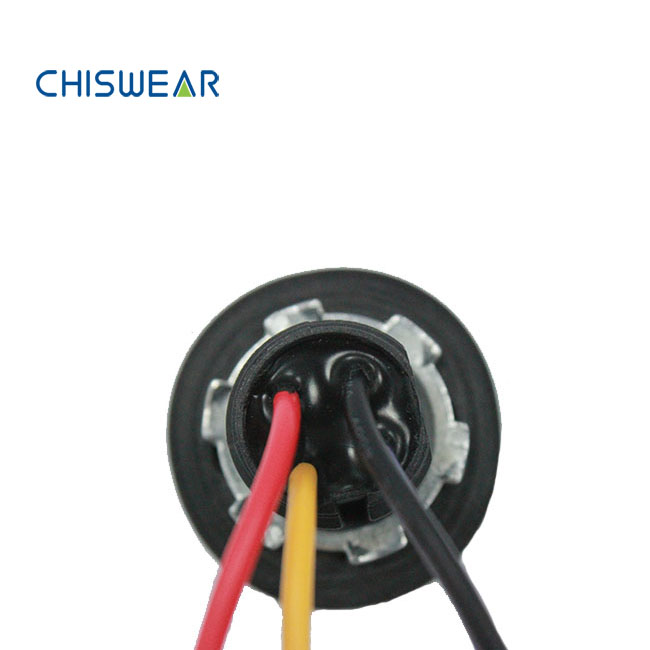

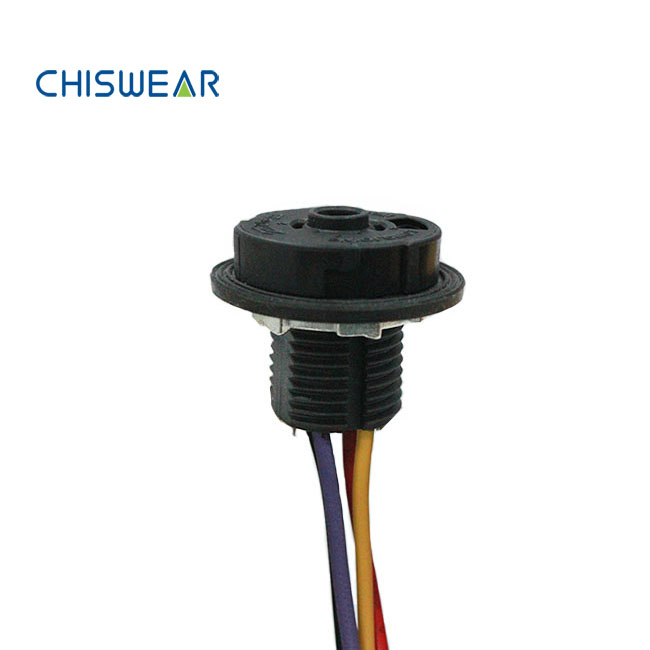

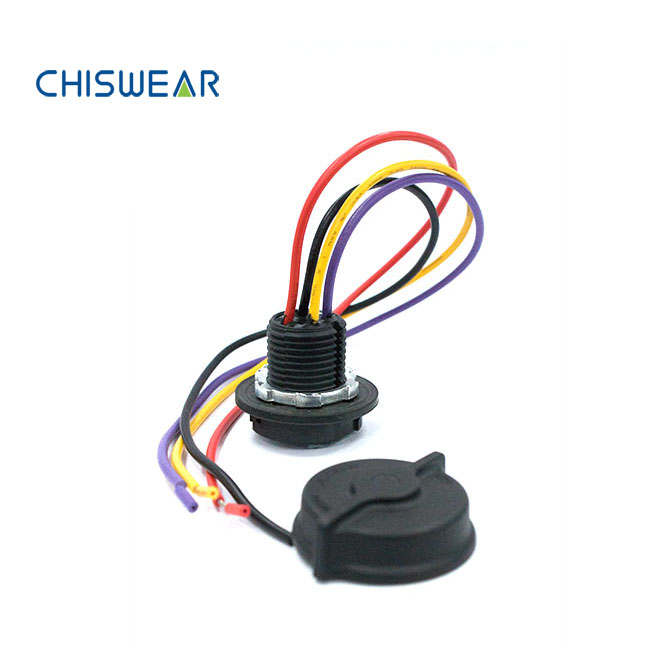

LUMAWISE Endurance Z10 Key A Version Receptacle Connector for American type 0-10V Dimming Controller

LUMAWISE Endurance Z10 Key A Version Receptacle Connector for American type 0-10V Dimming Controller Featured Image
  • LUMAWISE Endurance Z10 Key A Version Receptacle Connector for American type 0-10V Dimming Controller
  • LUMAWISE Endurance Z10 Key A Version Receptacle Connector for American type 0-10V Dimming Controller
  • LUMAWISE Endurance Z10 Key A Version Receptacle Connector for American type 0-10V Dimming Controller
  • LUMAWISE Endurance Z10 Key A Version Receptacle Connector for American type 0-10V Dimming Controller
  • LUMAWISE Endurance Z10 Key A Version Receptacle Connector for American type 0-10V Dimming Controller
  • LUMAWISE Endurance Z10 Key A Version Receptacle Connector for American type 0-10V Dimming Controller
  • LUMAWISE Endurance Z10 Key A Version Receptacle Connector for American type 0-10V Dimming Controller
  • LUMAWISE Endurance Z10 Key A Version Receptacle Connector for American type 0-10V Dimming Controller
  • LUMAWISE Endurance Z10 Key A Version Receptacle Connector for American type 0-10V Dimming Controller

Short Description:

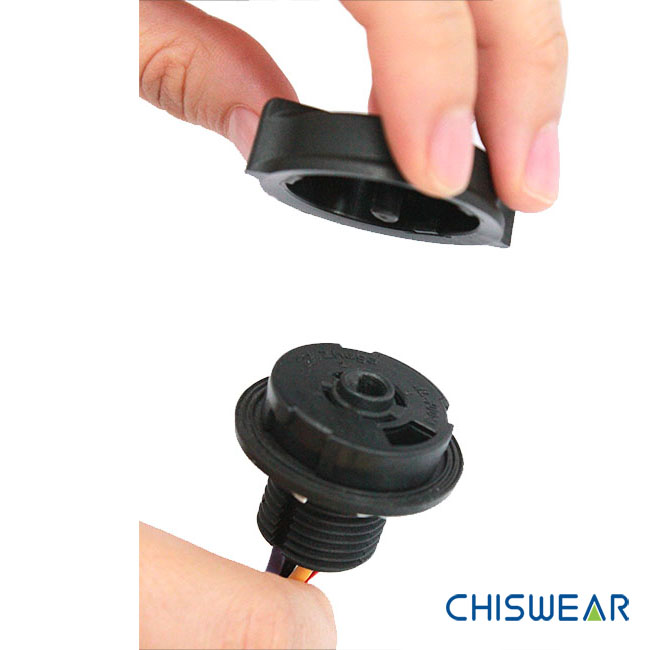

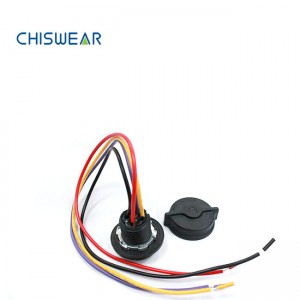

JL-770 Z10 Key A version Receptacle Connector can provide 0-10V mating combinations that bring flexibility and differentiation to the designer. It is perfect to use Advanced Controller Module, including compatible 0-10V Dimming, and a sensing to collect environment information or IoT communication connector between the luminaire and network as a medium of typical data transmissions.



Model: JL-770                                        Pollution Degree:2
Rated Impulse Voltage:0.8KV         High impact protection – IK09 rating
IP66 sealing Craft design (option)       Wires: Optionable


Download as PDF

Product Detail

PRODUCT PARAMETER

GET DETAILED PRICES

Product Tags

Features

1. Unique pro-craft Sealing to achieve IP66 with no mounting screws.
2. Flexible mounting position, upwards, downwards and sideways facing.

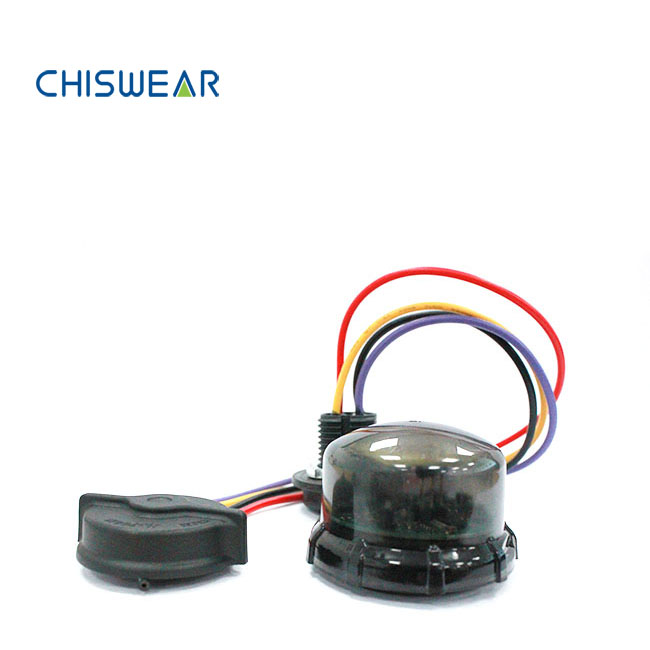

3. LUMAWISE Endurance Z10 keyed Connector well mating 40mm and 80mm diameter base and various domes (35mm, 50mm). The bases and domes combine to create enclosures that accept electronics for sensing and control in harsh outdoor environments and indoor applications that include motion, occupancy, and daylight harvesting.
4. Compact size allow greater flexibility in luminaire design.
5. Height above luminaire: 10m
6. IK09 capable
7. Perfect use for 0-10v American controller.

Z10-Key-A-Receptacle_01
Z10-Key-A-Receptacle_02
Z10-Key-A-Receptacle_03
Z10-Key-A-Receptacle_05
Z10-Key-A-Receptacle_06

  • Previous:
  • Next:

    • Model

    JL-770

    Body Dimensions (mm)

    Φ30*28.4

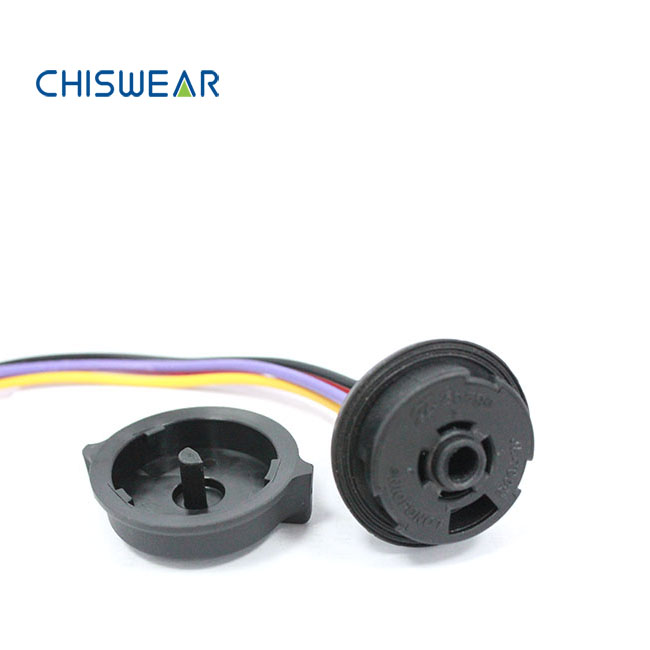

    Protection Cap Dimensions (mm)

    Φ35.3*13.8

    Gasket Dimensions (mm)

    36.8*2.5

    Lock Nut Material

    Zinc alloy

    Gasket Material

    Rubber

    Body Protection

    PBT

    IP Rating

    a base with dome to reach IP66

    IK09 Capable Test

    Pass

    Can Add configure Connector

    0-10 dimming

    Application

    1.Outdoor Luminaires – Wall Packs – Parking Lots – Walkway.
    2.Street and Area Lighting
    3.photocell control
