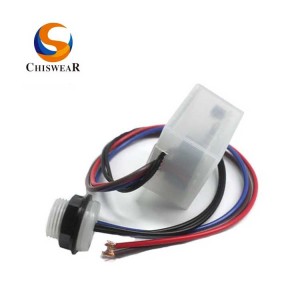

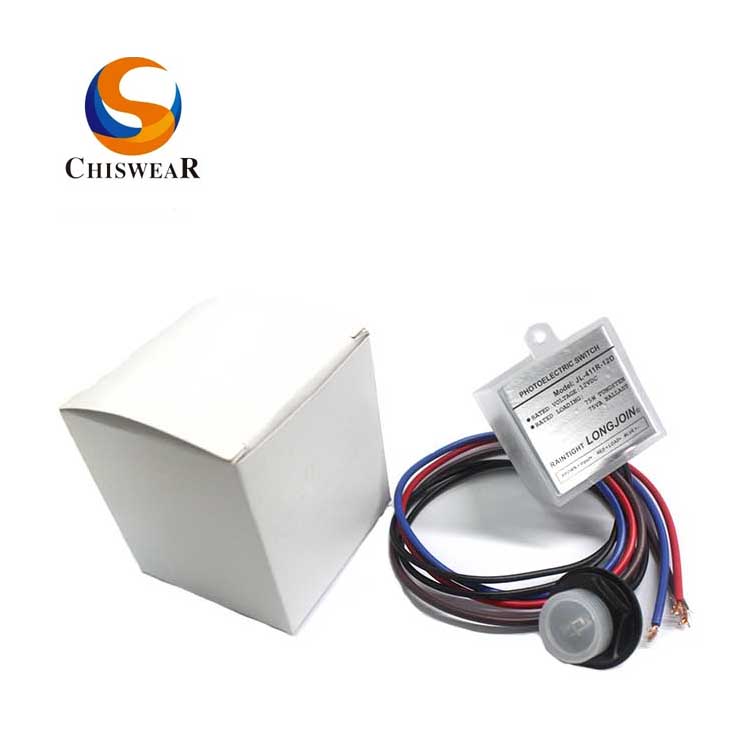

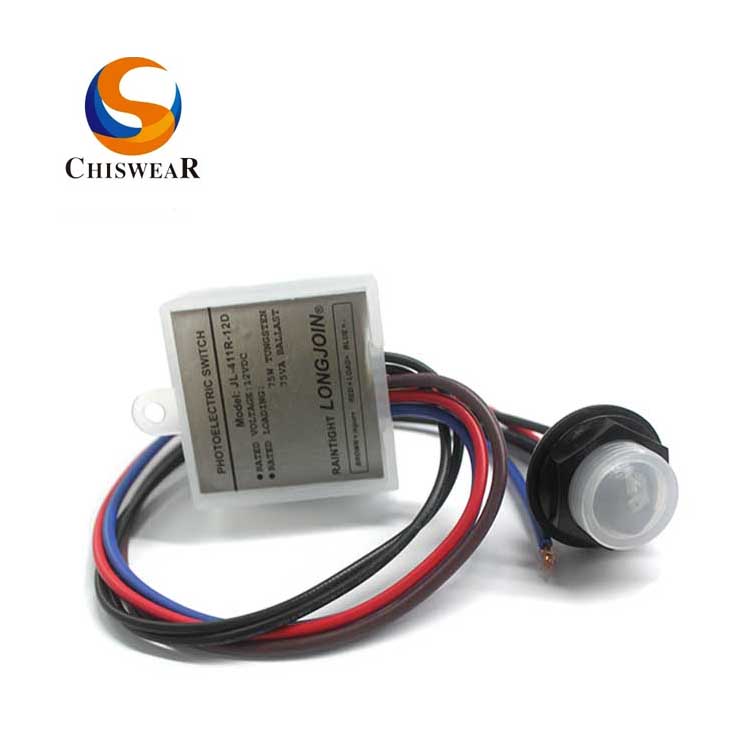

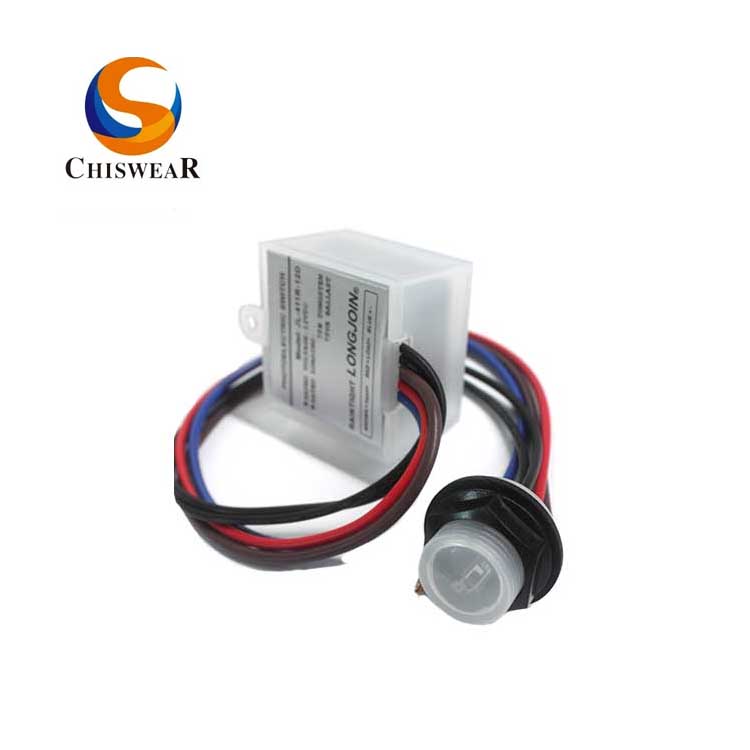

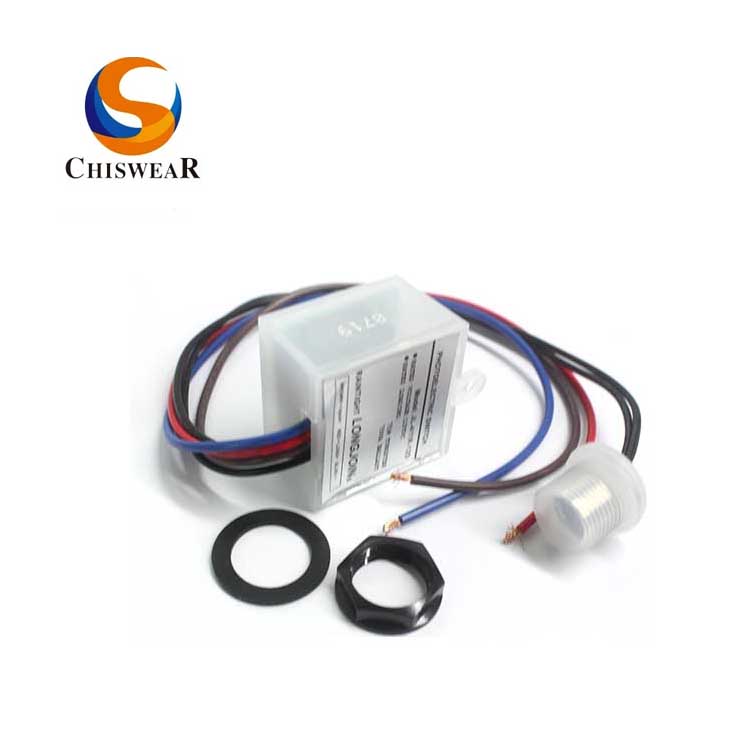

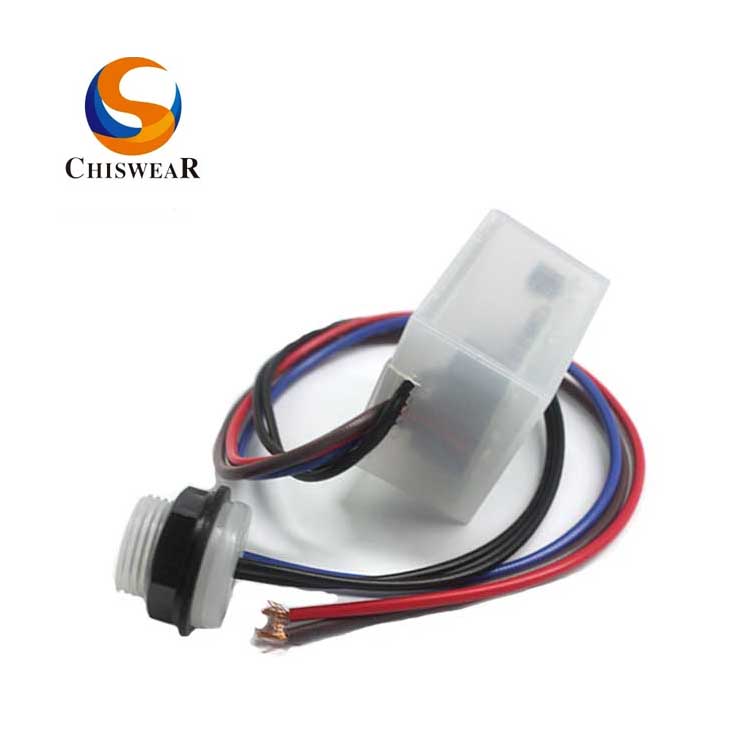

The photoelectric switch JL-411 is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.
Feature
1. 15-30s time delay
2 . wire in
3. Avoid mis-operation due to spotlight or lightning during the night time.
4. Wiring instruction
Black lines (+) input
Red lines (-) output
White (1) [input, output]
eg,wiring schematic diagram
