Product Summary

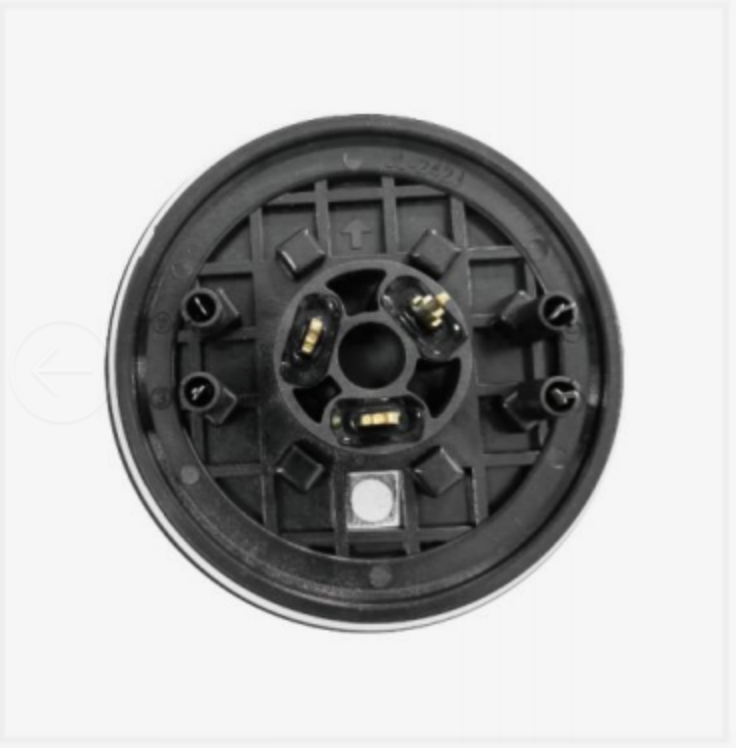

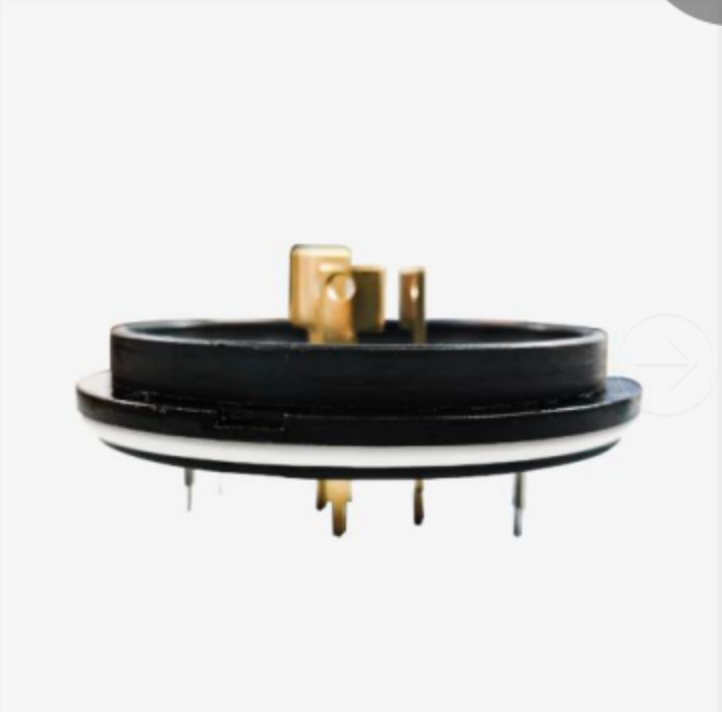

Shanghai Long-join Wireless Single Lamp Controller Housing Kit is based on 5pin and 7pin NEMA interfaces, and is mainly used for lighting energy-saving control and other built-in electronic controller products. The power connection adopts standard NEMA plugs, which are rotationally locked; The signal connection uses gold plated shrapnel to ensure stable transmission and achieve intelligent control of lighting equipment.
| Model No. | JL-242JV |
| Rated Voltage | Max 480Vac |
| Rated Frequency | 50/60Hz |
| Rated Loading | 15A |
| Signal Control | 0-30 VDC, 250 mA Max |
| IP | IP66（Reachable after assembly） |
| Material Quality | PBT |
| Ambient Temperature | -40℃~ + 70℃ |

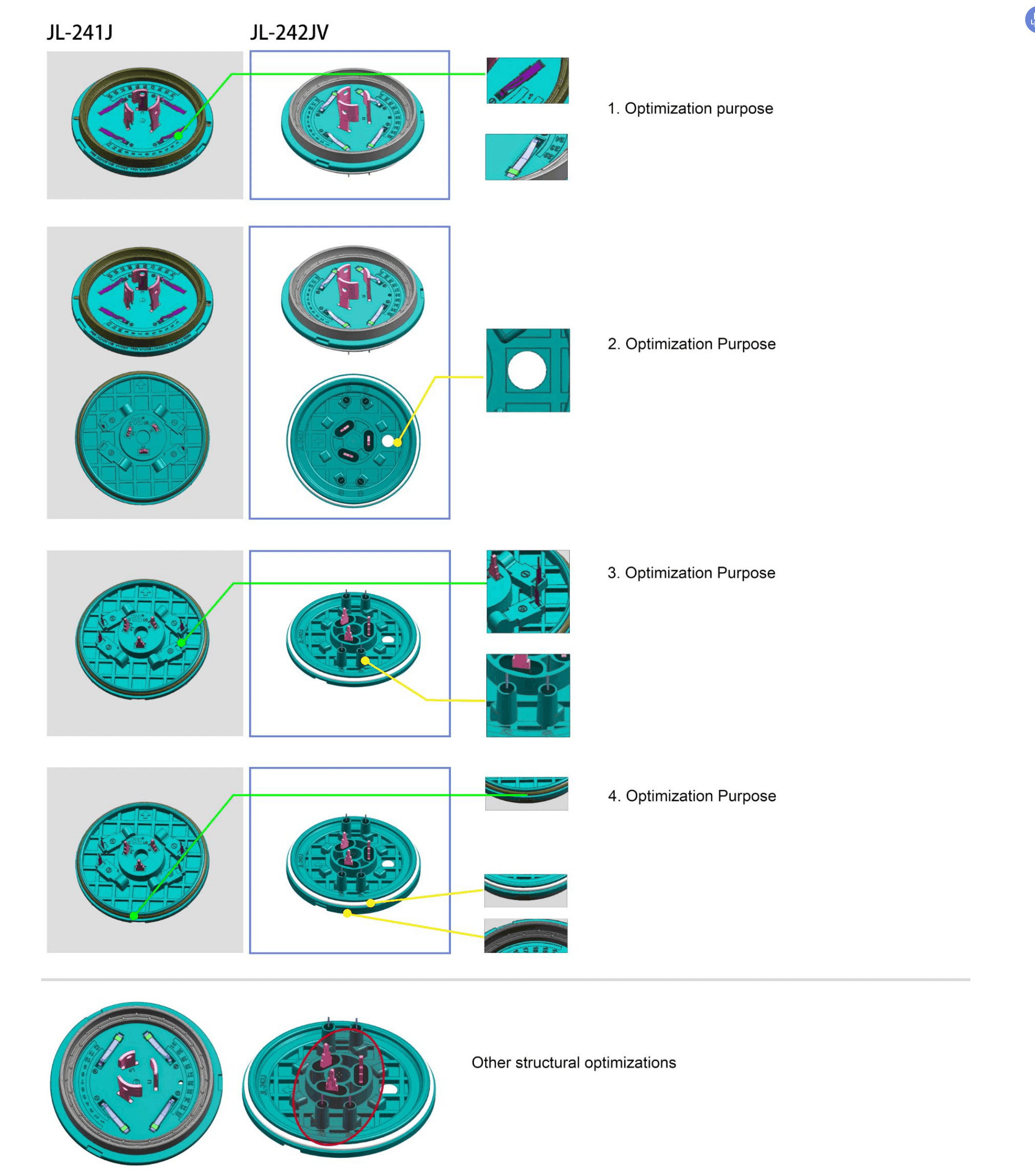

Comparison between JL-241J and JL-242JV
1. Optimization purpose
Install a card bridge to avoid shrapnel distortion
2. Optimization Purpose

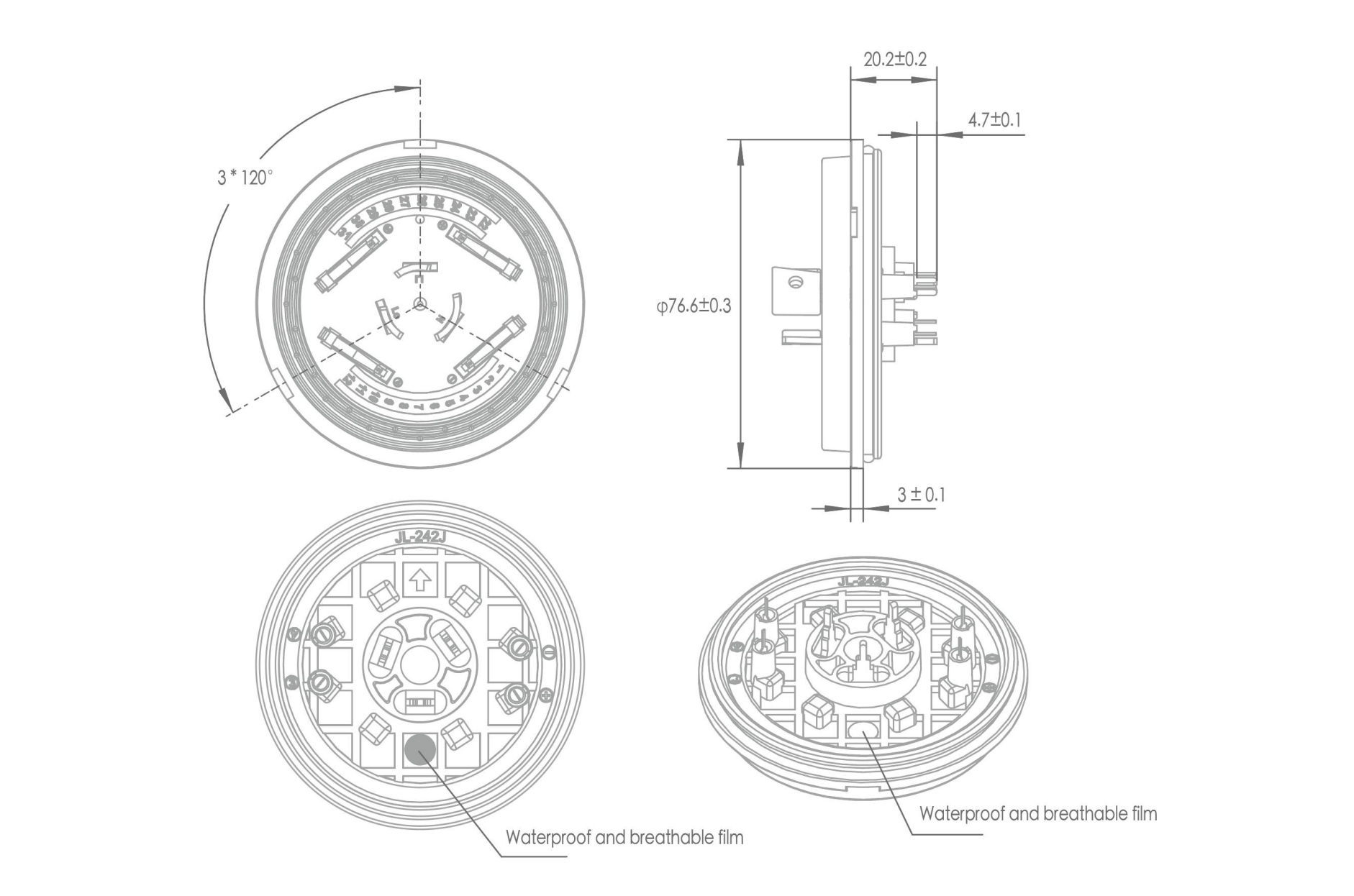

Add waterproof and breathable film, balance thepressure difference between the interior andexterior of the light controller. and reduceThe product may have water ingress.
3. Optimization Purpose
The cylindrical structure can protect the pins anoavoid pin deformation, and the height of the
cylinder Flush with the upper shoulder of the leadout end to support the circuit board and ensurethe circuit
The board is flat. All pin ends are treated with glue
4.Optimization Purpose
The waterproof ring material has been changedto silicone rubber, which has good resistance and can. To extend the service life of the gasket.Replacethebottom gasket material with silicone rubber.
Other structural optimizations
Other subtle differences in structure are due to mold optimization considerations and process processing considerations.
