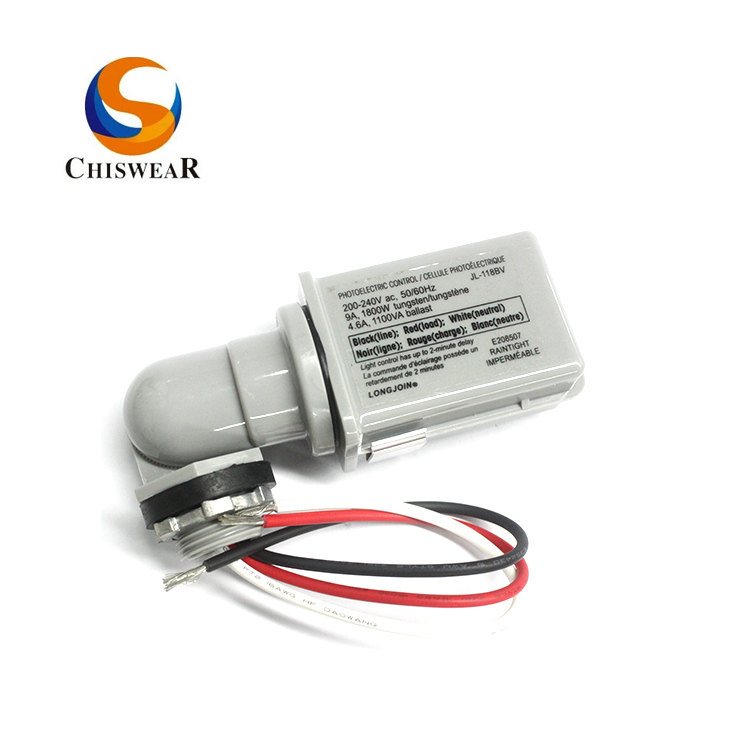

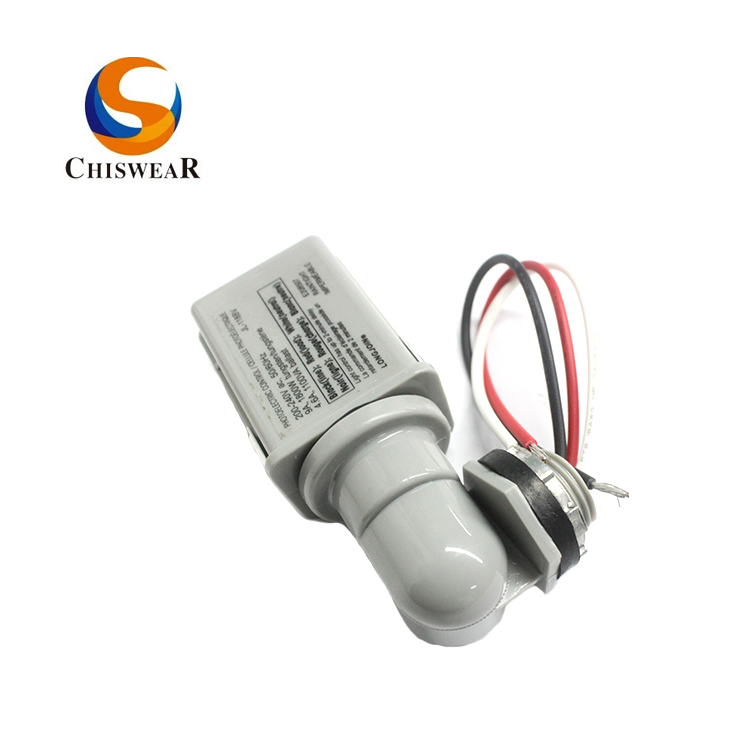

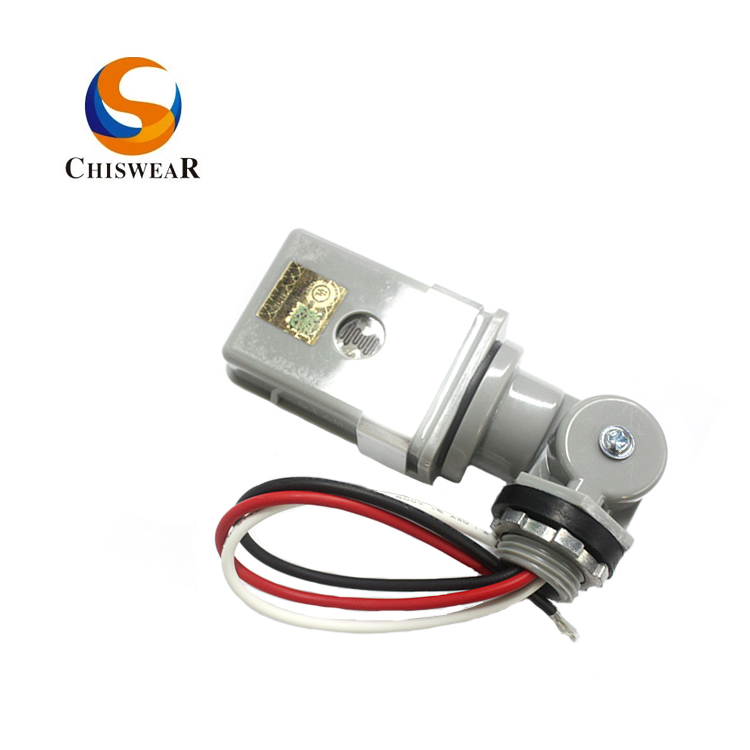

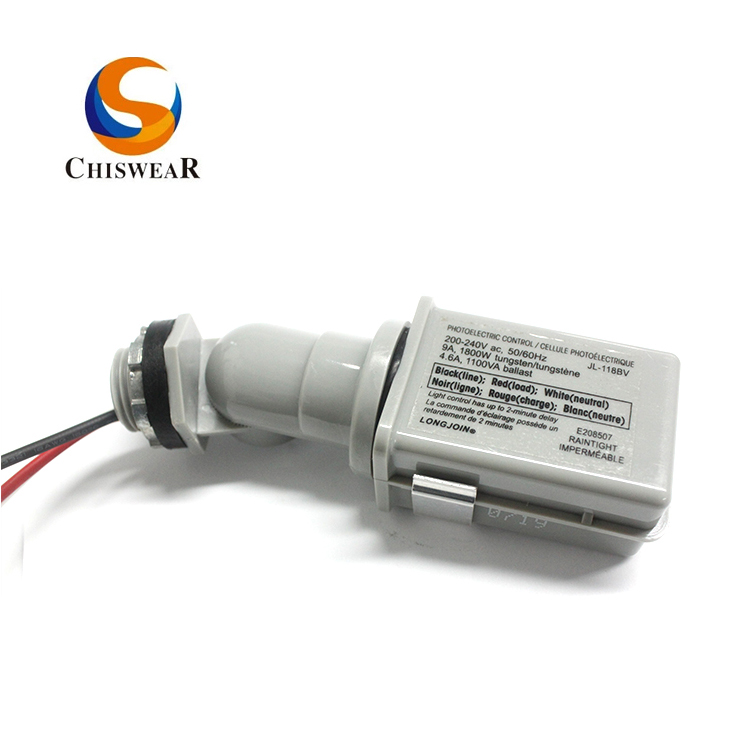

The photoelectric switch JL-118 Series is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.
Feature
1. Designed with bimetal thermal Structure work theory
2. 30 seconds Time Delay for easy-to-test and Avoid sudden accidents(spotlight or lightning) affecting normal lighting at night .
3.Wide voltage range for customer applications under almost power supplies.
| Product Model | JL-118A | JL-118BV |
| Rated Voltage | 100-120VAC | 200-240VAC |
| Rated Frequency |
50/60Hz |
|
| Rated Loading |
1000W Tungsten, 1800VA |
|
| Power consumption | 1.5 VA | |
| Operate Level |
10-20Lx On 30-60Lx Off |
|
| Ambient Temperature |
-30℃ ~ +70℃ |
|
| Leads Length | 150mm or Customer request (AWG#18) | |
| Sensor Type | Bimetal thermal controller | |
| Approx. Weight | 55g (Body) | |
