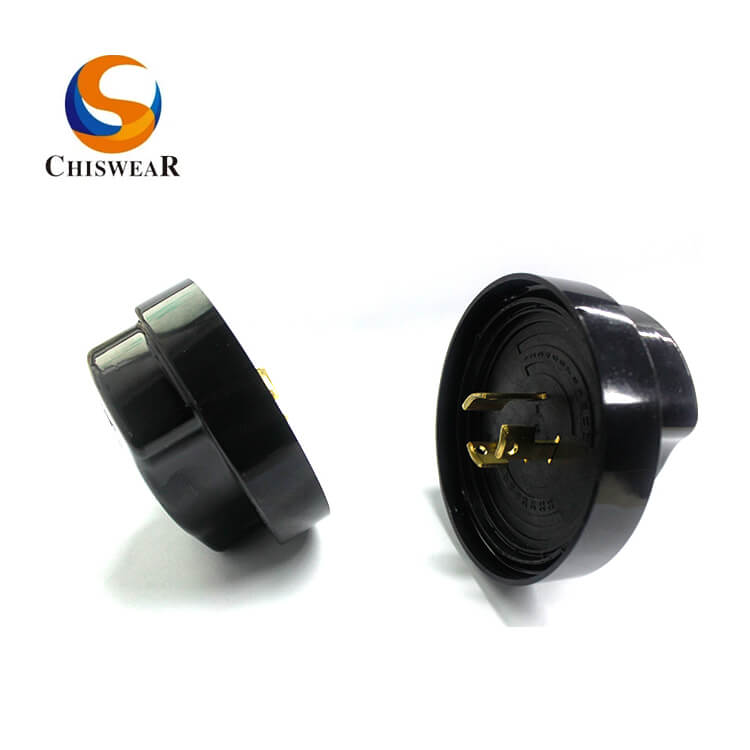

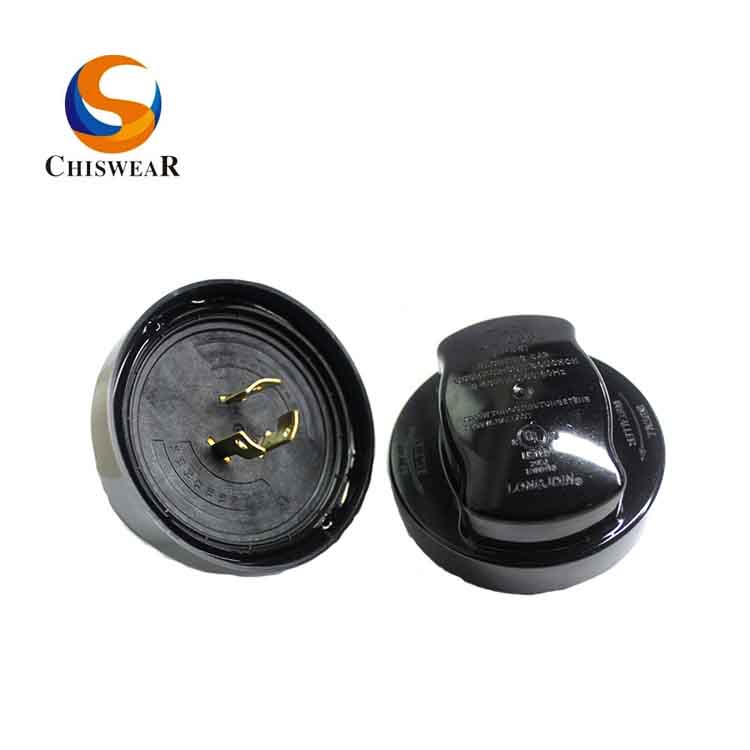

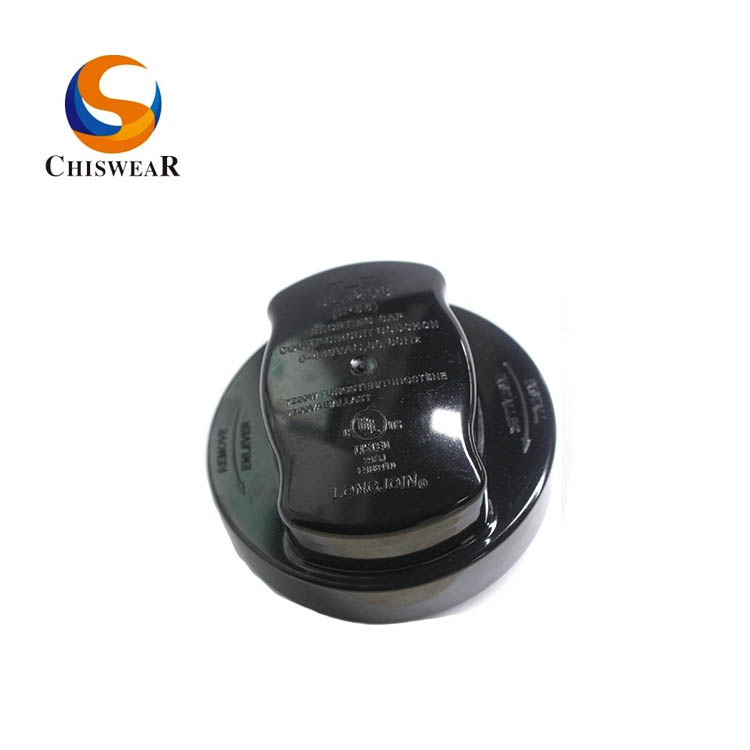

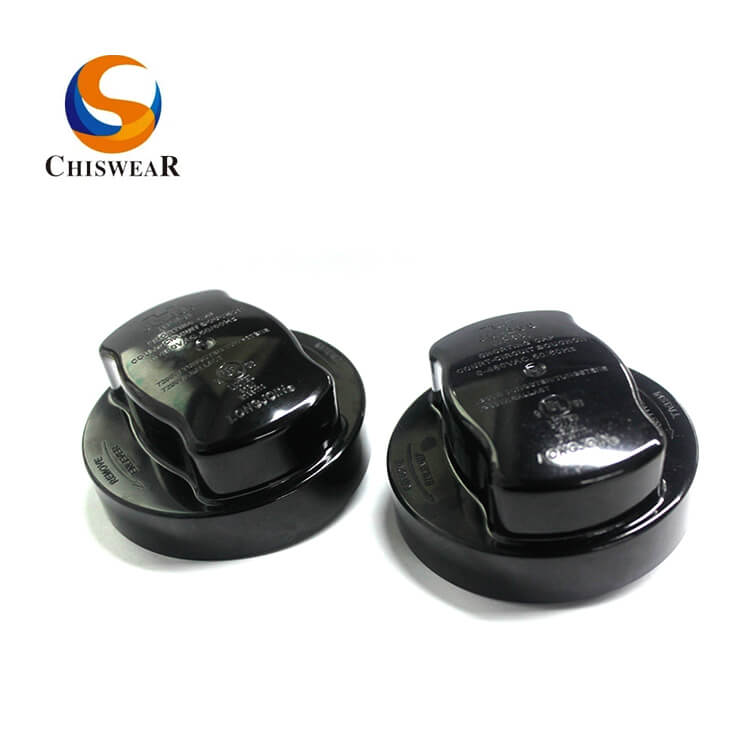

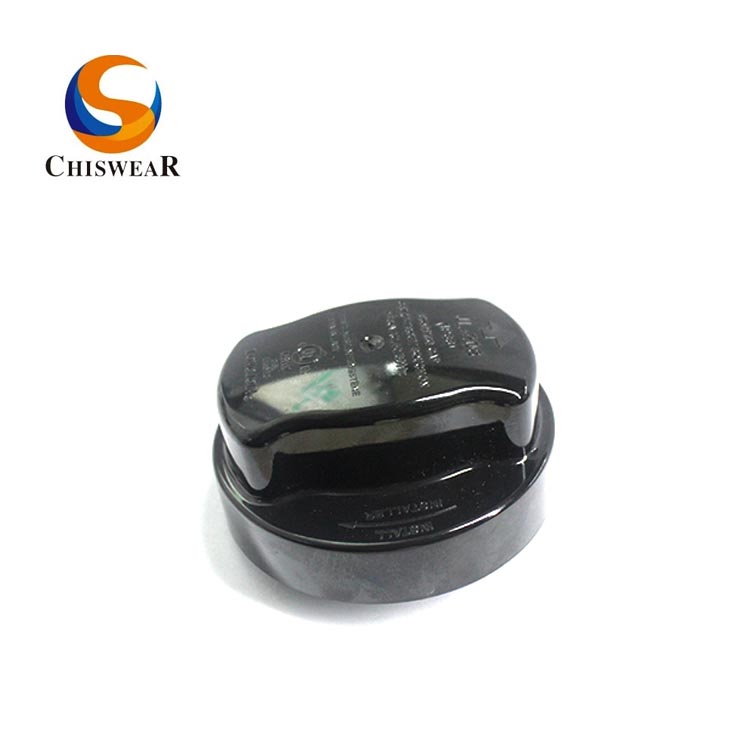

IP66 Waterproof Shorting Cap JL208

Short Description:

1. Product Model: JL-208
2. Rated Voltage: 0-480VAC
3. Surge Protection: JL-208-15; JL-208-23
4. IP Rating: IP66
5. Compliant Standard: CE, ROHS, UL

Send email to us Download as PDF

Product Detail

Product Specification

Get Detailed Prices

video

Product Tags

Feature
1. Intend to short a twist-lock photocell.
receptacle while under maintain.
2. Easy-to-maintain Twist-lock(ANSI C136.10) .
3. IP54/IP66 protection while installed.
4. Surge Protection Available (JL-208 Only).
5. UV stabilized Polycarbonate Enclosure .
6. UV stabilized Polybutylene Base.

Previous: 110 Voltage Bimetallic Structure Photocell JL-202A

Next: ODM/OEM Design Tranparent Photocell Shorting Cap for Street Light

The Model JL-208 Shorting cap work for protecting to ensure the normal operation of the Photocell sensor.

Product Model	JL-208
Color	Black, Clear, Customized
Rated Load	7200W Tungsten ;7200VA Ballast
Surge Protection	235J / 5000A(JL-208-15) ;460J / 10000A(JL-208-23)
IP Grade	IP66
