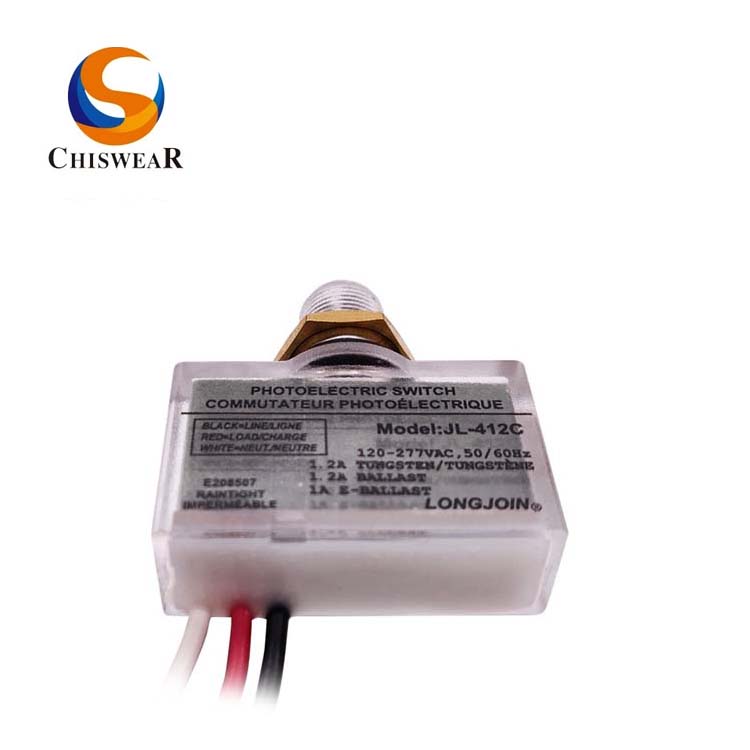

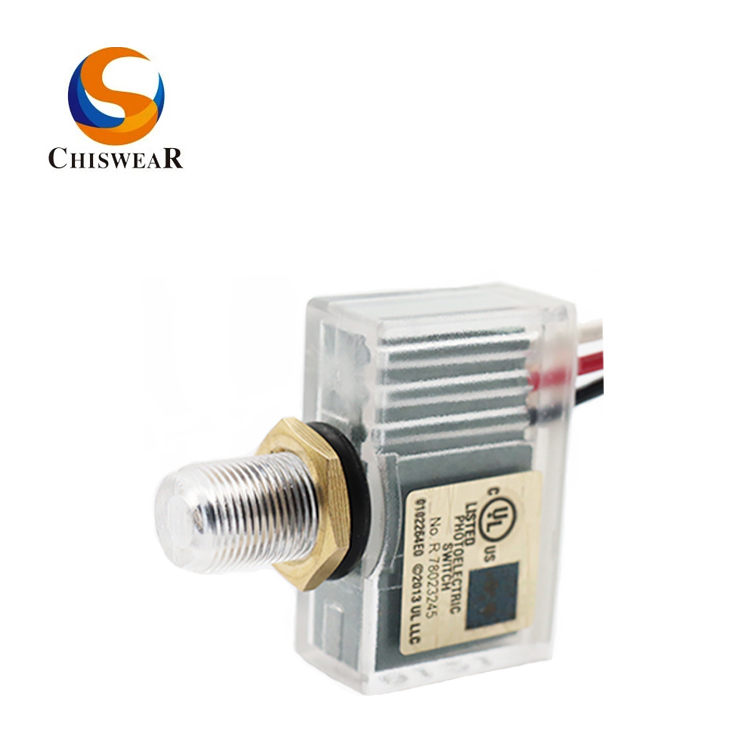

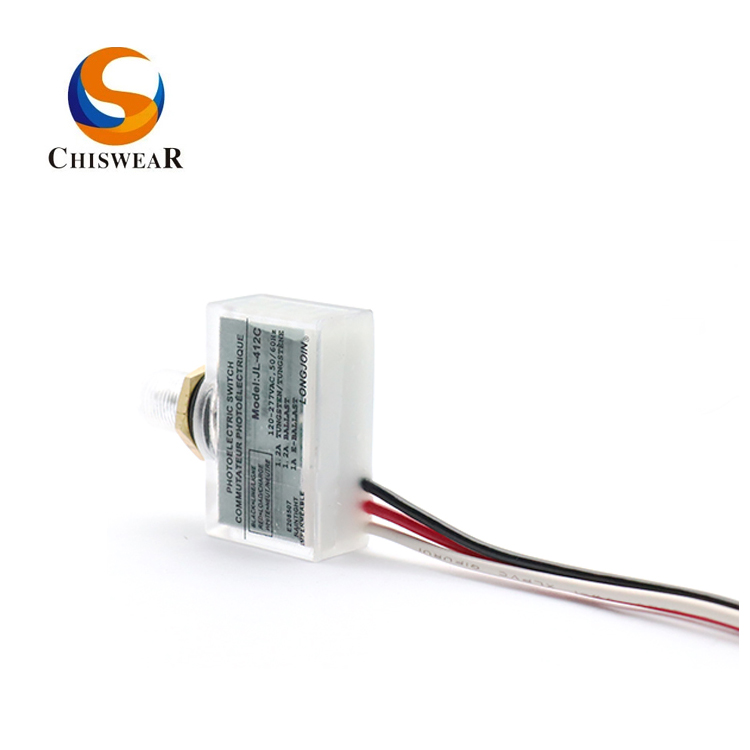

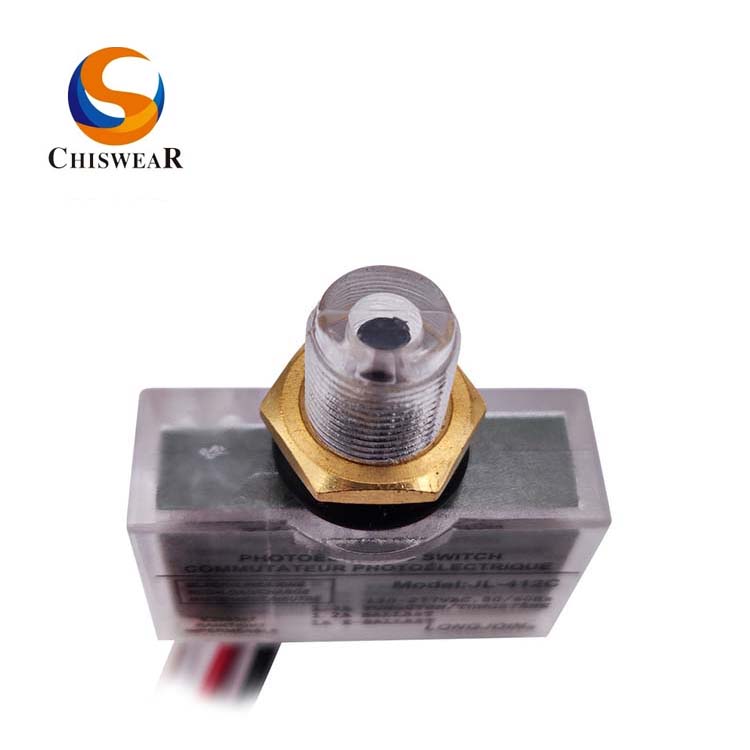

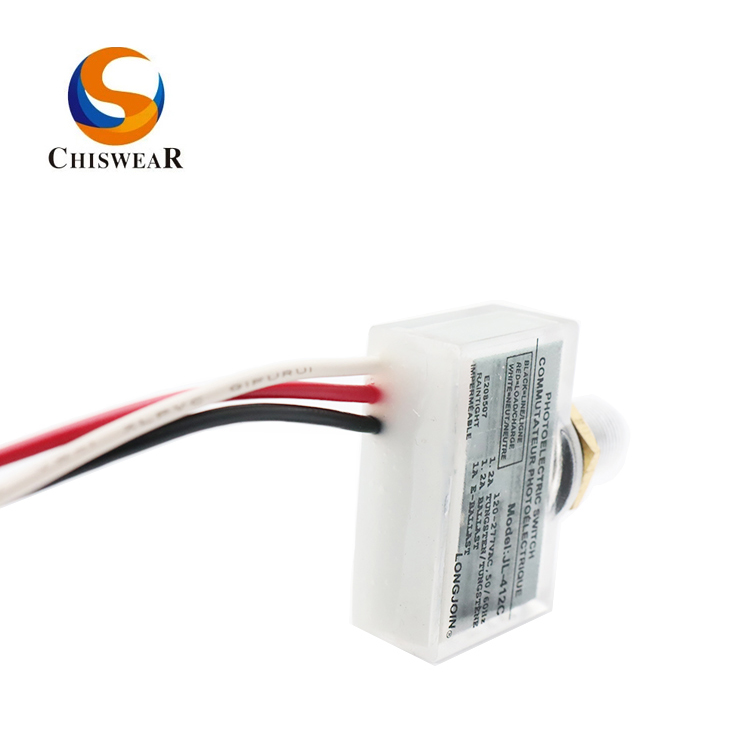

IP54 IP65 Waterproof Series Mini Button Photocontrol 120-277VAC from Shanghai Chiswear

Short Description:

1. Product Model : JL-412C

2. Rated Voltage : 120-277 VAC

3. On / OFF Lux Level : 10-30 Lx on  30-60 Lx off

4. IP Rating: IP54 / IP65

5. Compliant Standard: CE,ROHS,UL


Product Detail

Product Specification

Get Detailed Prices

Product Tags

2021 years promote new product list on market for sale, and the photoelectric switch JL-412C is applicable to control the street lighting, garden lighting, passage lighting and barn lighting automatically in accordance with the ambient natural lighting level.

Feature
1. Convenient and easy to install.
2. Standard Accessories: aluminum wall plated, waterproof cap(Optional )
3. Wire gauge Classifications: AWG#18, but your need to available customize.
4. We have more 103 series products is belong to IP54, but 412C photoelectric switch more than IP rating(IP65).


  • Previous:
  • Next:

  • >

    Product Model

    JL-412C

    Rated Voltage

    120-277VAC

    Rated Frequency

    50-60Hz

    Related Humidity

    -40℃-70℃

    Rated Loading

    1.2A Tungsten / Ballast / E-Ballast

    IP rating

    IP54 / IP65

    Power Consumption

    1W Max

    Operate level

    10~30Lx   Turn-On / 30~60Lx   Turn-Off

    Overall dimensions(mm)

    35.5(L) x 12.6(W) x 22(H)mm, Nipple Height 16mm

    Leads lengths

    180mm or customer request(AWG#18)
