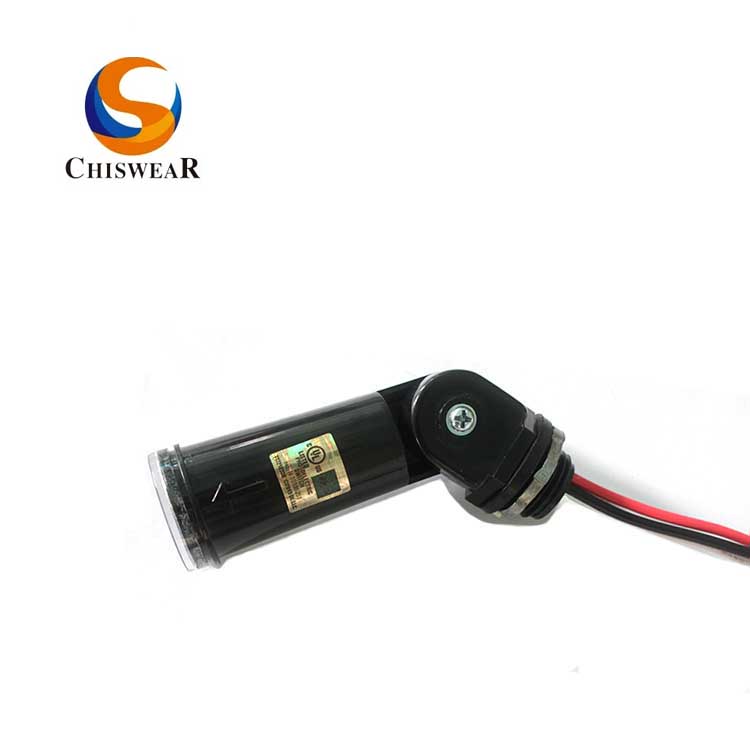

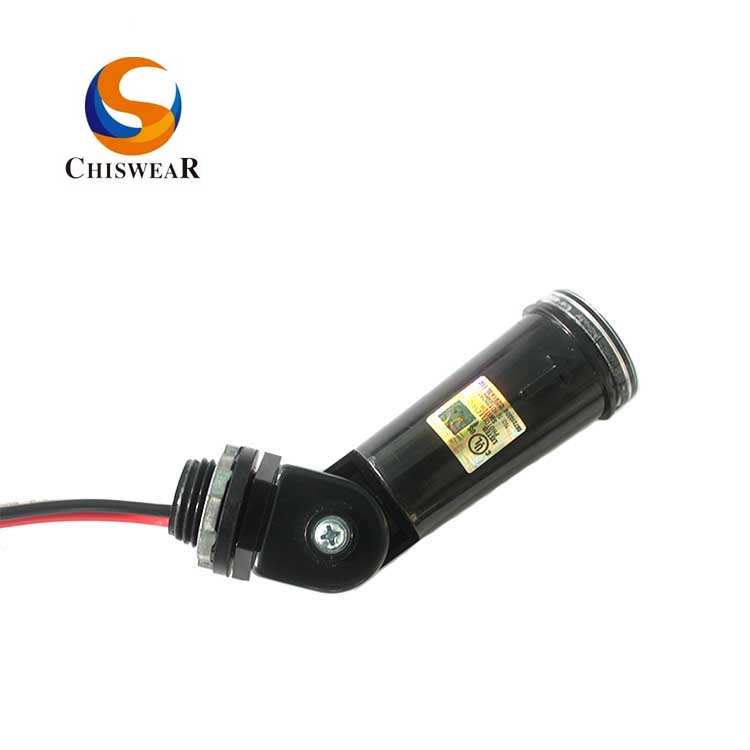

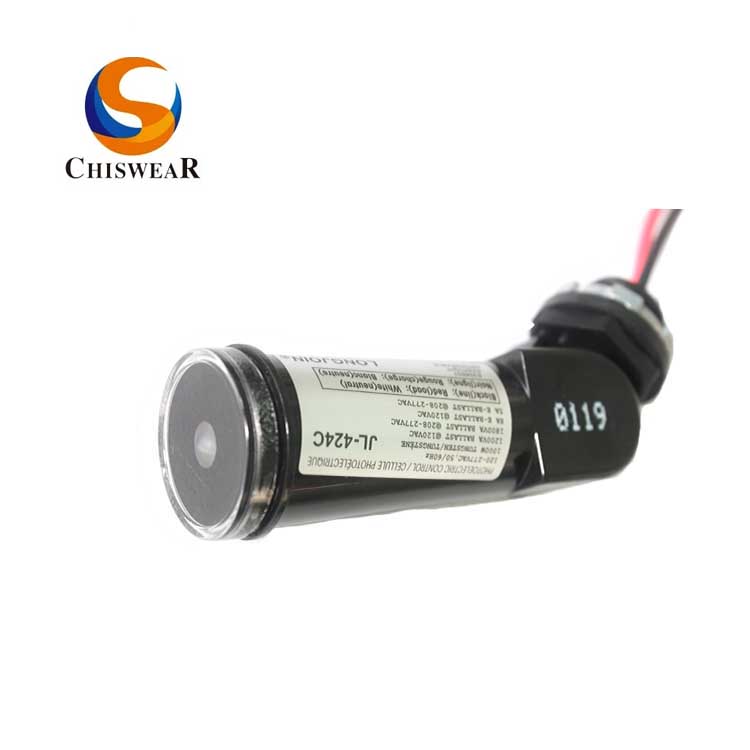

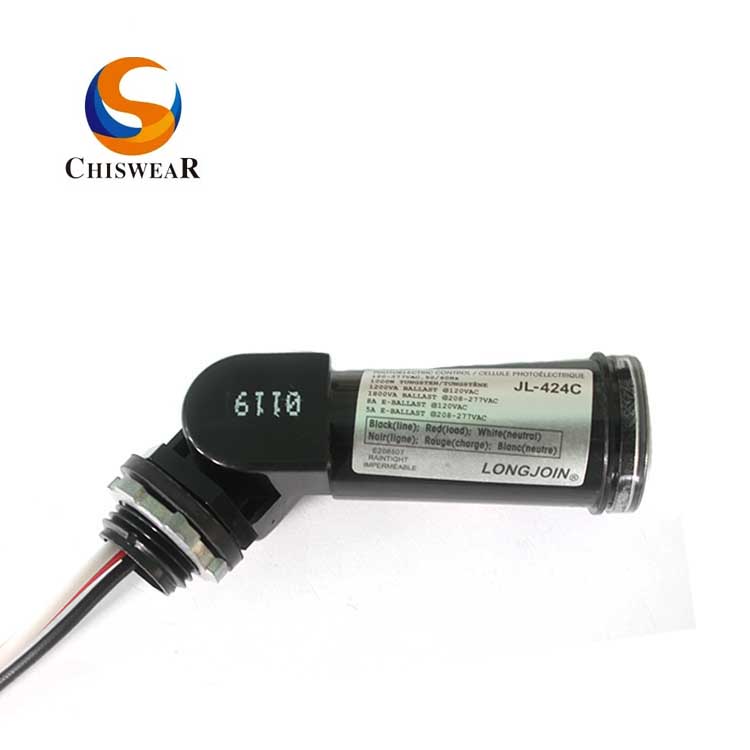

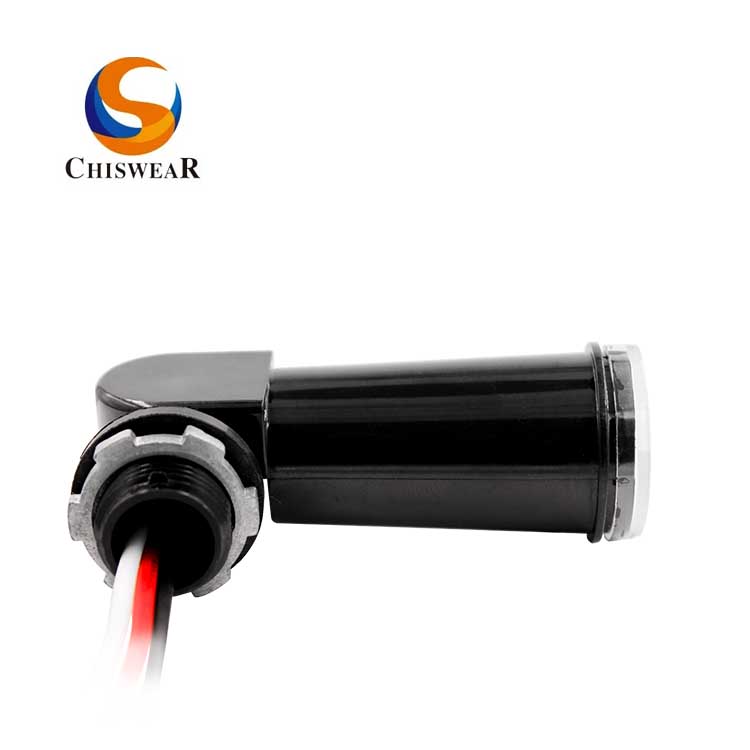

The photoelectric switch JL-424C is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.
Feature
1. Designed with electronic circuits with MCU incorporated. 2.5 seconds Time delay offers easy-to-test feature while avoiding mis-operation due to spotlight or lightening during night time.
2 .Model JL-424C provides a wide voltage range for customer applications under almost power supplies.
|
Product Model |
JL-424C |
|
Rated Voltage |
120-277VAC |
|
Rated Frequency |
50/60Hz |
| Rated Loading |
1000W Tungsten, 1200VA Ballast@120VAC/1800VA Ballast@208-277VAC 8A e-Ballast@120VAC / 5A e-Ballast@208~277V |
|
Power consumption |
0.4W max |
|
Operate Level |
16Lx On ;24Lx Off |
|
Ambient Temperature |
-30℃ ~ +70℃ |
|
IP Grade |
IP65 |
|
Overall Dimensions |
Body: 88(L)x 32(Dia.)mm; Stem:27(Ext.)mm; 180° |
|
Leads Length |
180mm or Customer request (AWG#18) |
|
Fail Mode |
Fail-On |
|
Sensor Type |
IR-Filtered Phototransistor |
|
Midnight Schedule |
Available per client’s request |
|
Approx. Weight |
58g (Body); 22g (Swivel) |
