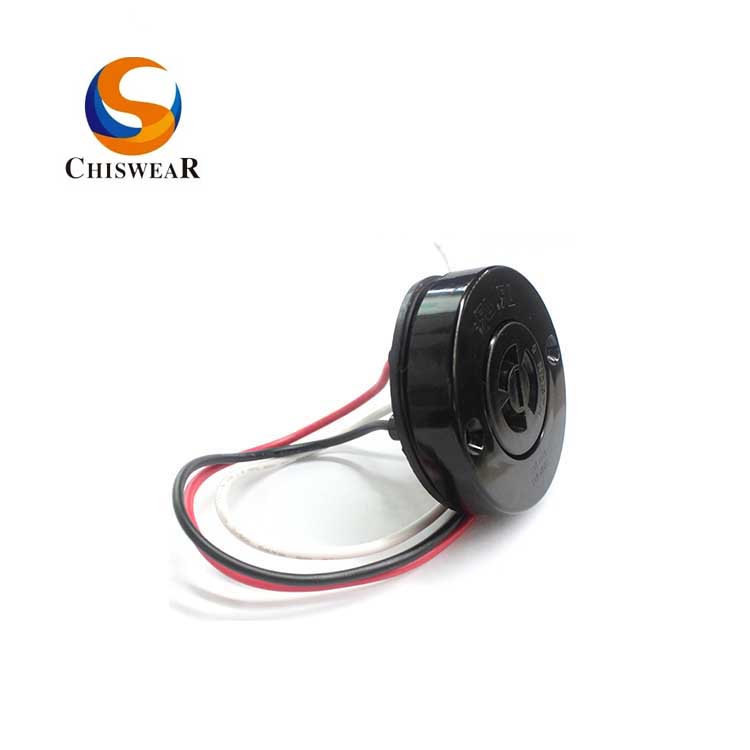

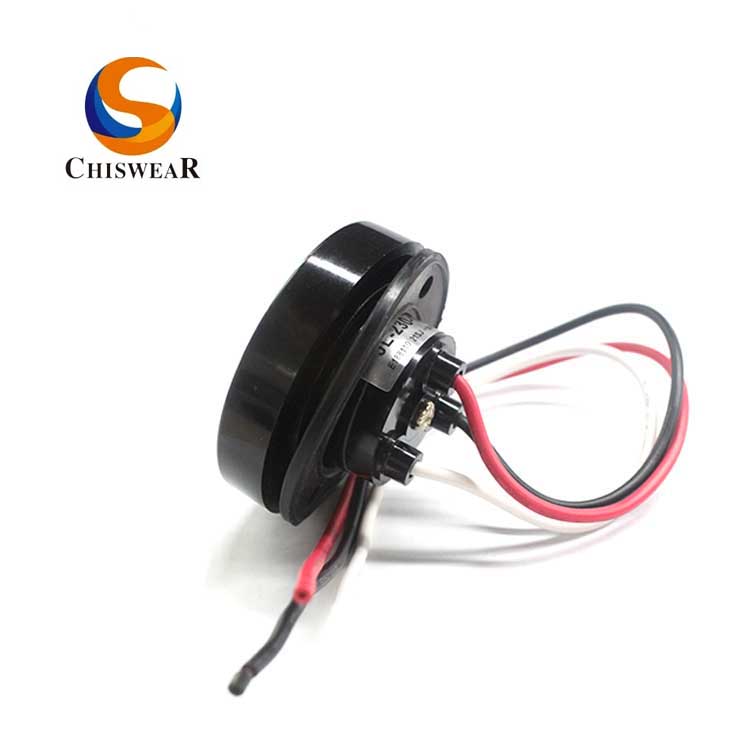

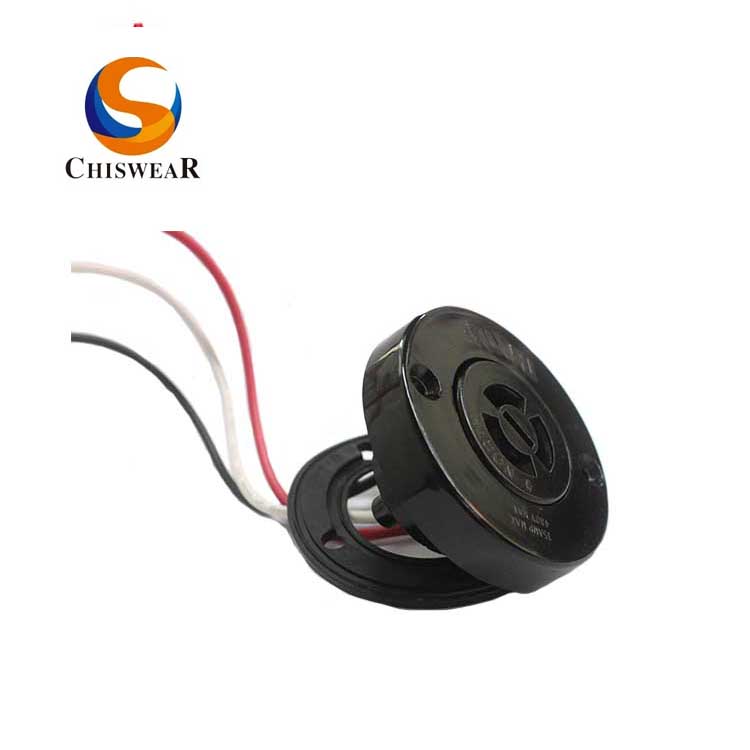

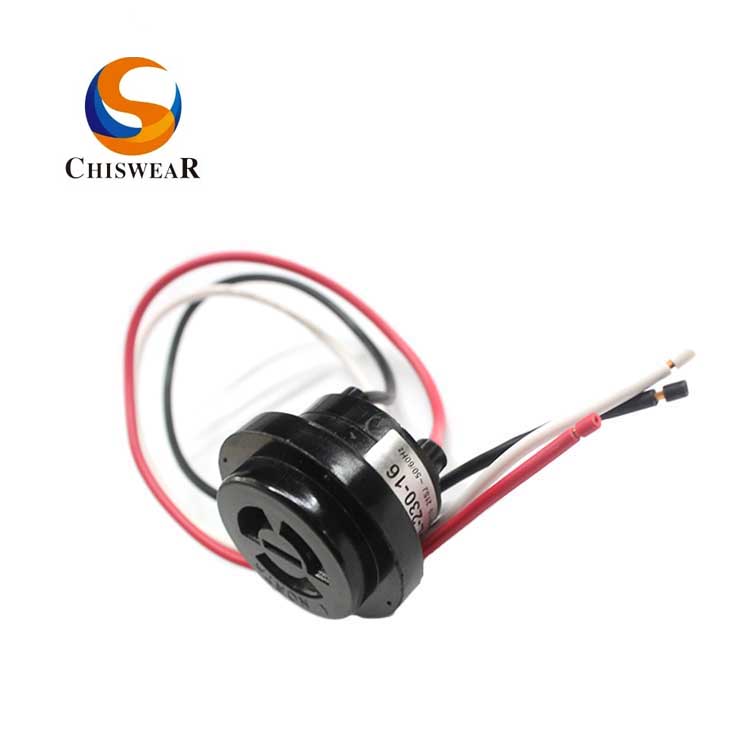

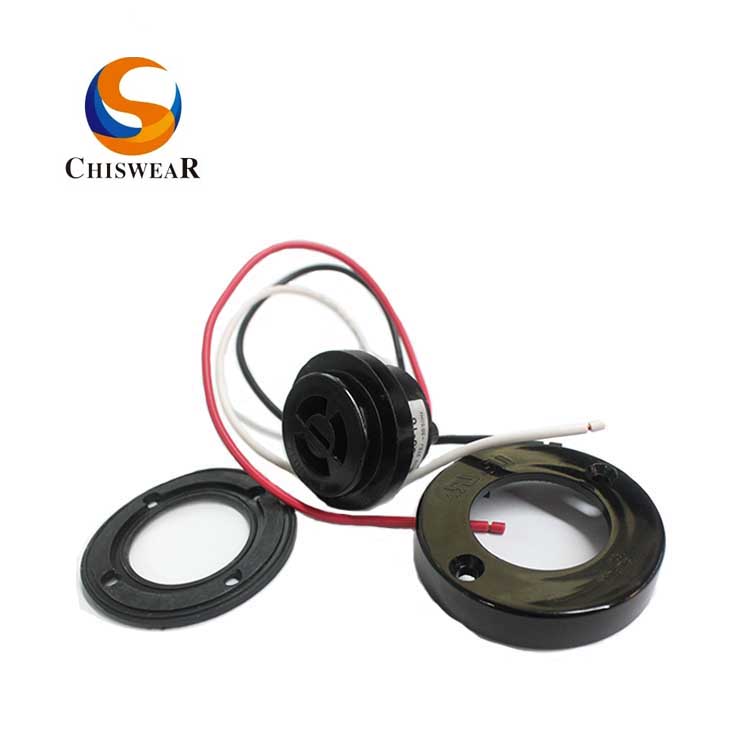

Exterior Light Luminaires Rotate Twist Lock 3 PIN Photocell Receptacle JL-230

Short Description:

1. Product Model: JL-230
2. Rated Voltage: 0-480VAC
3. Material Socket: Phenolic Socket
4. Wire Gauge: #14, #16
5. Compliant Standard: CE, ROHS, UL

Send email to us Download as PDF

Product Detail

Product Specification

Get Detailed Prices

video

Product Tags

Feature
1. All the JL-230 series receptacles are intended to be pre-install onto those lanterns designed to fit an ANSI C136.10-1996 twist-lock photocell sensor.
2. Both JL-230-16 and JL-230-14 have been recognized by UL to applicable US and Canadian safety standards, under their file E188110, Vol.2.

Previous: Twist lock 3 PIN Photocontrol Receptacle JL-200X

Next: ANSIC 136.41 5 PIN Photocell Receptacle JL-240XB

Product Model	JL-230X
Rated Voltage	0-480VAC Max.
Loading Capacity	15Amp Max.
Ambient Temperature	-40℃ ~ +70℃
Holding Cover	Polycarbonate
Receptacle	Phenolic (Bakelite)
Contact	Brass / Phosphor Bronze
Gasket	Silicon Rubber
Overall Dimensions (mm)	65mm (Dia.) x 30mm (H)
Leads gauge	AWG#16(JL-230-16);AWG#14(JL-230-14)
