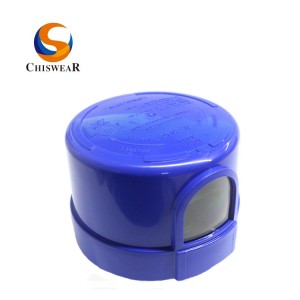

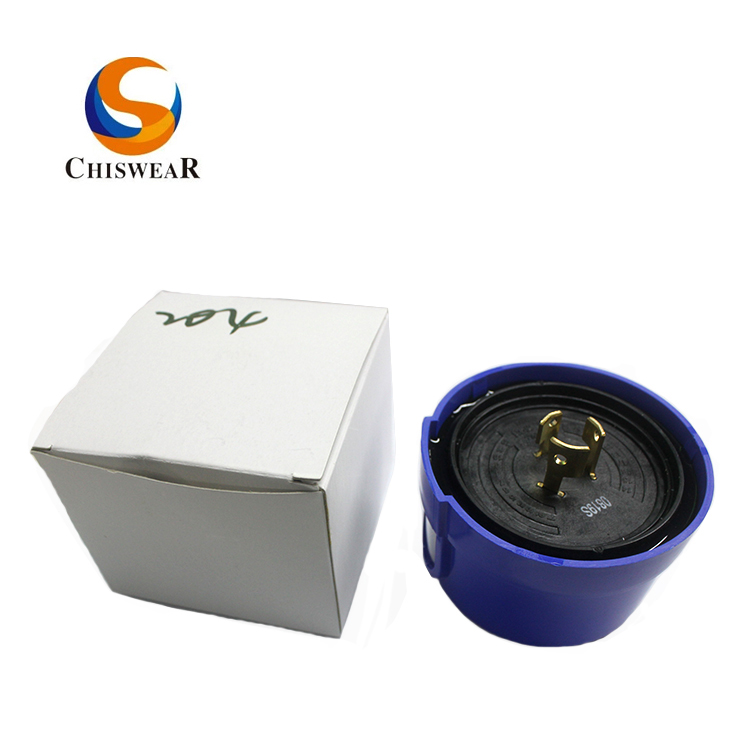

The photocontroller JL-204 series is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.
Feature

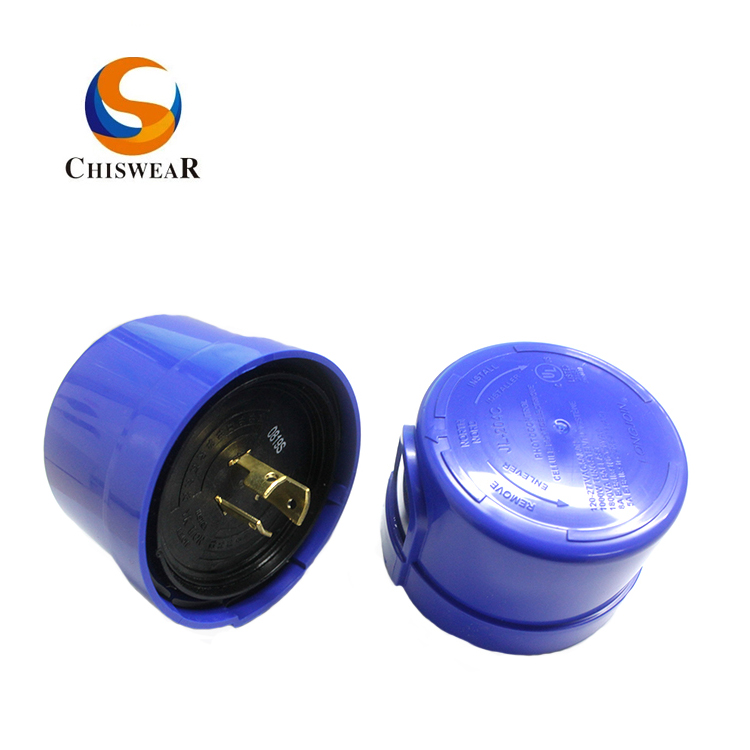

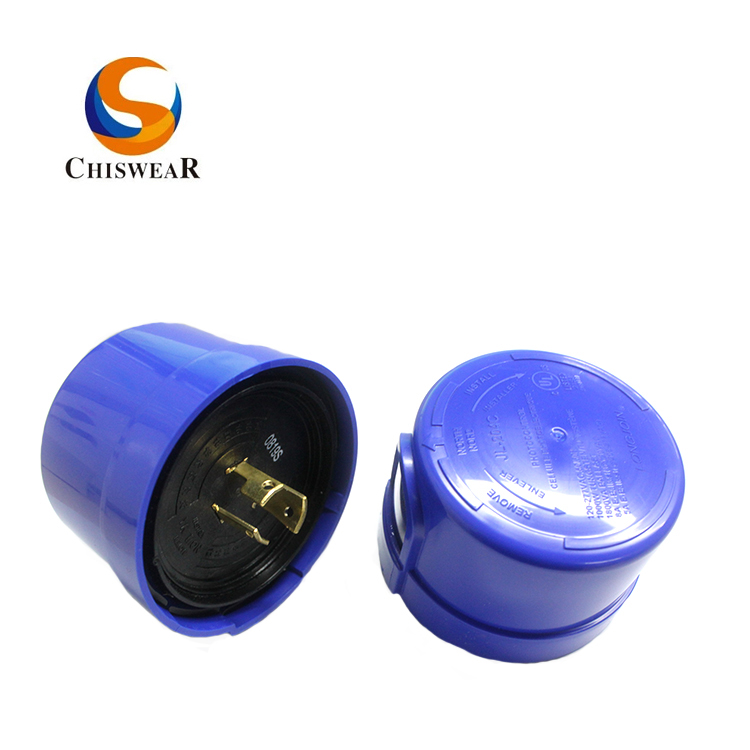

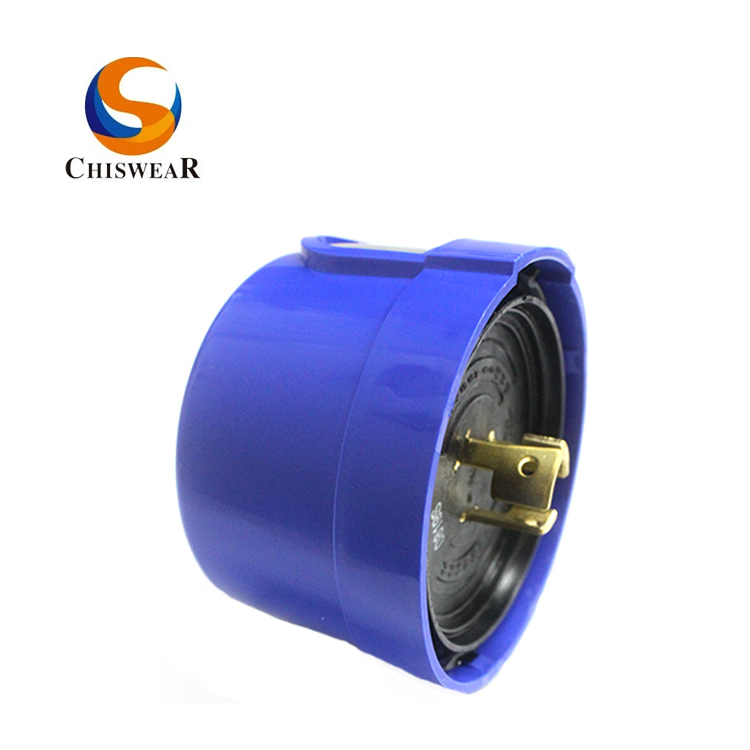

1. ANSI C136.10-1996 Twist Lock.
2. Surge Arrester Built-In.
3. Fail-Off Mode
4. IP Rating: IP54, IP65
5. Power Consumption: 1.5VA
6. Preset test: Time delay of 5-20 seconds offers abnormal or normal feature to give your judgement.
| Model | JL-204A | JL-204B | JL-204C |
| Rated Voltage | 110-120VAC | 220-240VAC | 110-277VAC |
| Applicable Voltage Range | 100-140VAC | 200-260VAC | 105-305VAC |
| Rated Frequency | 50/60Hz | ||
| Rated loading | 1000W Tungsten, 1800VA Ballast | ||
| Power consumption | 1.5VA | ||
| On/off level | 6Lx On, 50Lx Off | ||
| Ambient temperature | -40℃-70℃ | ||
| Related humidity | 99% | ||
| Overall size | 84（Dia.）*66mm | ||
| Weight Approx | 75grs | ||
**MOV Number
12=110 Jole/3500Amp;
15=235 Jole/5000Amp;
23=460Jole/7500Amp
