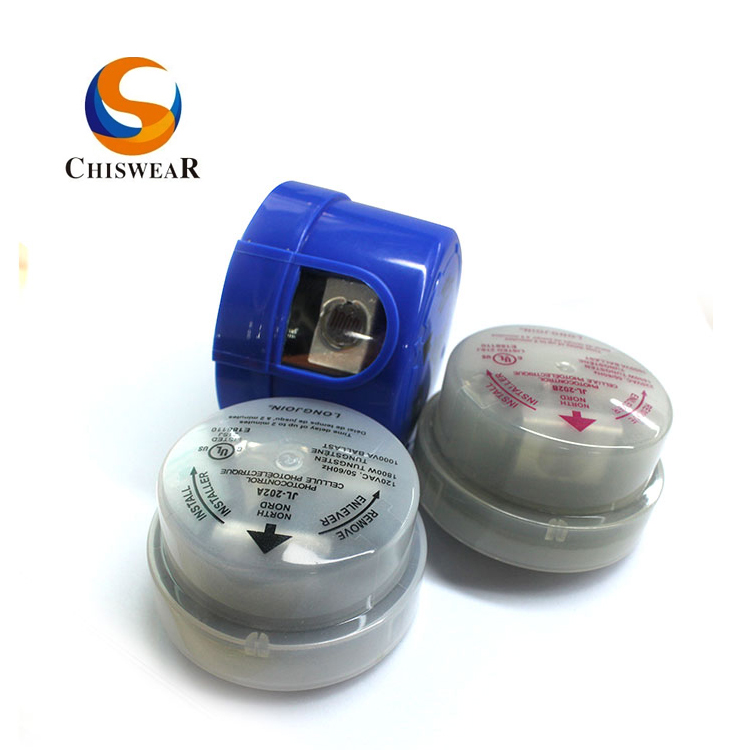

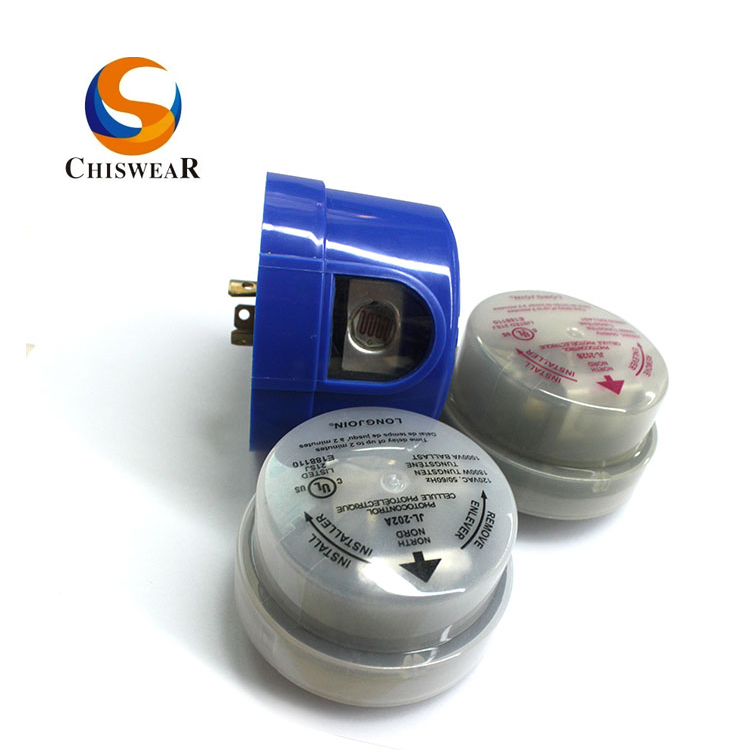

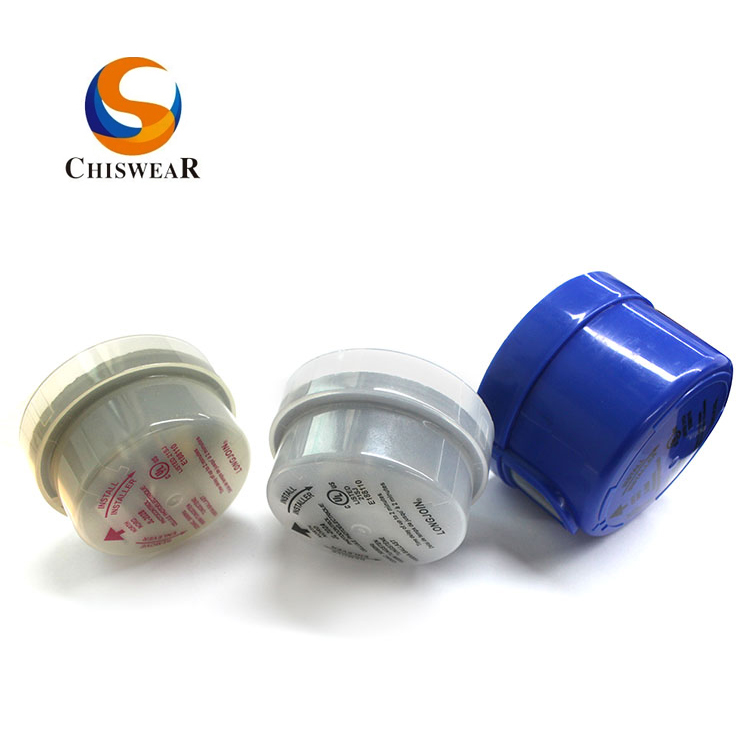

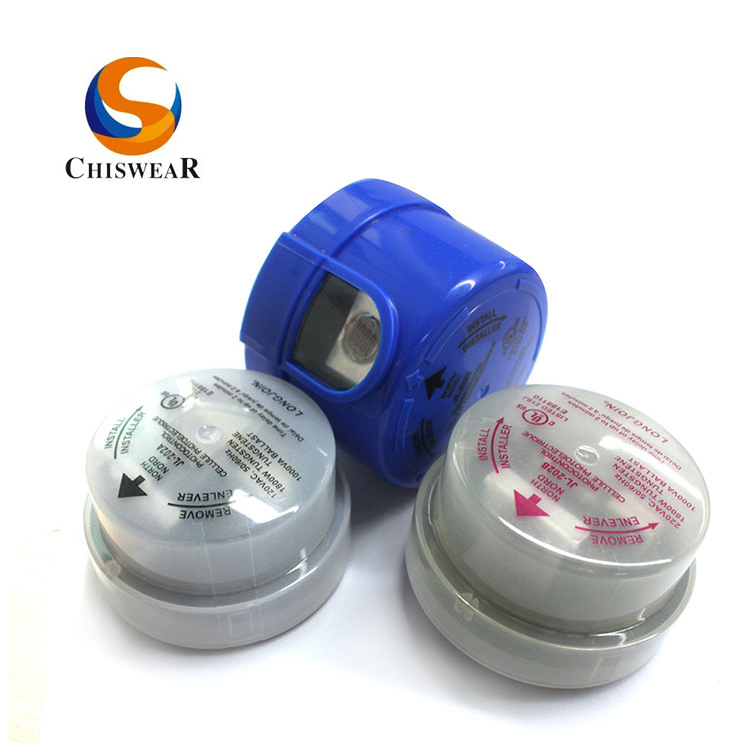

The photocontroller JL-202 series is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.
Feature
1. ANSI C136.10-1996 Twist Lock.
2. Surge Arrester Built-In.
3. Fail-Off Mode
4. IP Rating: IP54, IP65
5. Power Consumption: 1.5VA
| Mode | JL-202A | JL-202B | JL-202C | JL-202D |
| Rated Voltage | 110-120VAC | 220-240VAC | 208VAC | 277VAC |
| Applicable Voltage Range | Nominal +/-10% | |||
| Rated Frequency | 50/60Hz | |||
| Rated loading | 1000W Tungsten, 1800VA Ballast | |||
| Photocell Size | 0.5’’ with heat sink (Standard) / 1’’ (Deluxe) | |||
| Power Consumption | 1.5VA Average | |||
| On/off level | 10-20Lx On, 30-50Lx Off | |||
| Enclosure Color | gray,maroon,blue,and available customize your requirement | |||
| Ambient Temperature | -40℃-70℃ | |||
| Related Humidity | 99% | |||
| Overall Size(mm) | Null:74 Dia *50(Clear), M:74 Dia *60 / 84 dia*65 | |||
| Weight Approx | 62-90grs | |||
