Chiswear Photocell Sensor

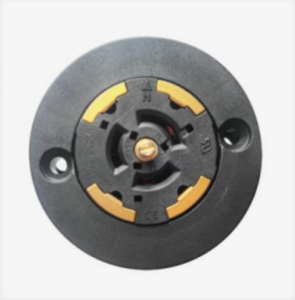

JL-250G NEMA 8 Pin Rotatable Interface Twist-lock Light Control Socket

Model No. ：JL-250G

Rated Voltage ：0~480VAC

Rated Frequency ：50/60Hz

Rated Loading ：15A

Signal Control ：0-30 VDC, 1500 mA Max

Wire specifications ：16AWG/14AWG 6″ shortest”

Ambient Temperature： -40°C ~ +70°C

Working humidity ：96%

Certification ：ANSI C136.41-2013

inquiry detail

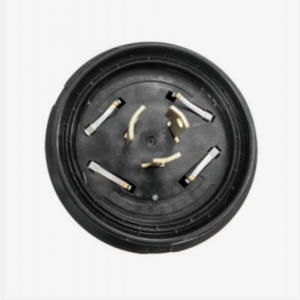

JL-242JV 5 pin 7 pin NEMA Base with Waterproof and Breathable Membrane

Model No. ：JL-242JV

Rated Voltage ：Max 480Vac

Rated Frequency ：50/60Hz

Rated Loading ：15A

Signal Control ：0-30 VDC, 250 mA Max

IP ：IP66（Reachable after assembly）

Material Quality ：PBT

Ambient Temperature ：-40℃~ + 70℃

inquiry detail
ANSI C136.41/NEMA 7 PIN Surge Protection Devices, Fast Plugin Surge Module from LONG-JOIN Brand

1. Max Surge Protective Current:5KA, 10KA
2. 5kA or 10kA In Nominal Discharge Current
4. Rated Working Voltage:120-277VAC
5. 7 PIN Receptacle with Center Ground Hole Design (optional)
6. High strength PC material
7. This SPD type product is a defined voltage clamping (voltage limiter) interface module
8. Built-in temperature fuse, over-temperature protection
9. Certificate: ANSI C136.41, UL773, RoHS,CE,CE,UKCA

inquiry detail
Black Photocontrol Enclosure and NEMA 7 PIN JL-241J Base Kits for 0-10V and DALI Controller

1. Product Model : YS800076-8

2. Material: PC/PP （Customer Requirement）

3. Color：grey/gray

inquiry detail
All in One-stop Customize Twist Lock Photoconrol and IP54,IP65,IP66 and Voltage Above 480V

1.Rated Voltage: Customize
2. On / OFF Lux Level: Customize
3. IP Rating: IP54, IP65, IP67
4. Compliant Standard: CE, ROHS, UL
5. Enclosure Color: black, gray, blue etc.

inquiry detail
LUMAWISE Endurance Z10 Key A Version Receptacle Connector for American type 0-10V Dimming Controller

JL-770 Z10 Key A version Receptacle Connector can provide 0-10V mating combinations that bring flexibility and differentiation to the designer. It is perfect to use Advanced Controller Module, including compatible 0-10V Dimming, and a sensing to collect environment information or IoT communication connector between the luminaire and network as a medium of typical data transmissions.

Model: JL-770 Pollution Degree:2
Rated Impulse Voltage:0.8KV High impact protection – IK09 rating
IP66 sealing Craft design (option) Wires: Optionable

inquiry detail
