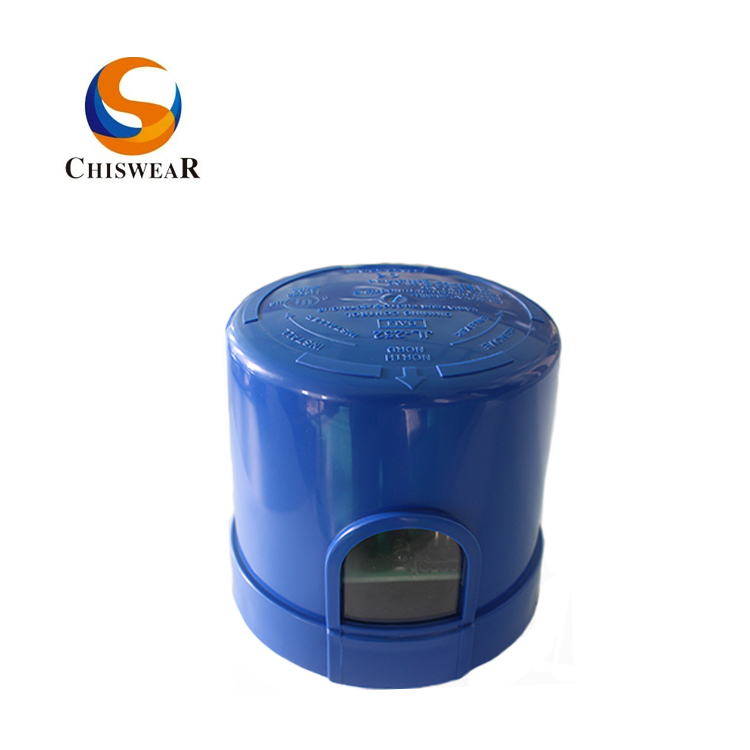

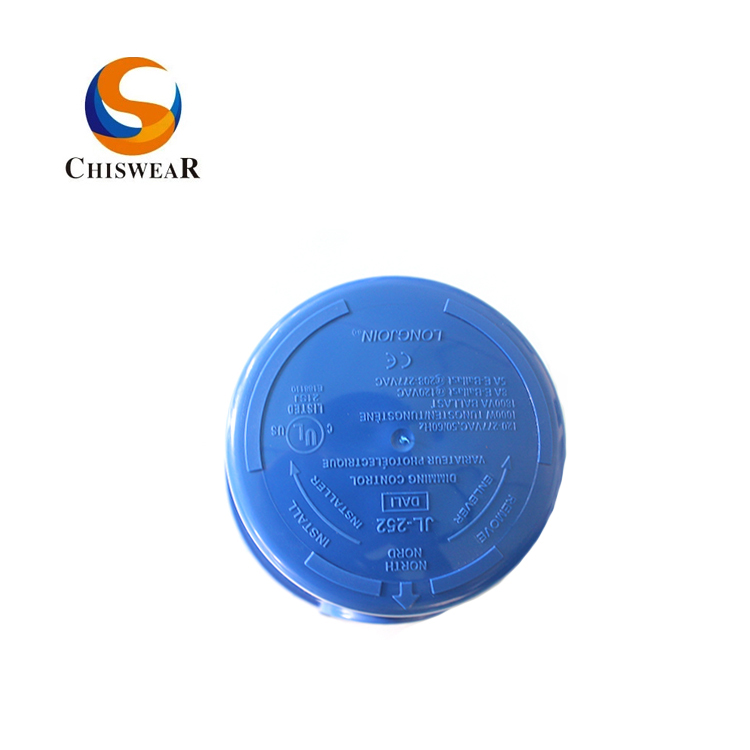

ANSI C136.41-2013 Twist-lock Photocontrol Switch, DALI Dimming and NEMA 7 PIN Contacts

Short Description:

1. Product Model: JL-252C
2. Rated Voltage: 110-277 VAC
3. On / OFF Lux Level: 50 Lx
4.  Time-delay: 5 seconds
5. IP Rating: IP65, IP67
6. Compliant Standard: CE, ROHS, UL


Product Detail

Video

Product Specification

Get Detailed Prices

Product Tags

The photocontroller JL-24 series is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.

Feature
1. ANSI C136.10-1996 Twist Lock
2. Applicable Voltage Range: 90-305VAC
3. Time Delay of 10 seconds
4. Surge Arrester Built-In
5. Fail-On Mode
6. Midnight Dimming


  • Previous:
  • Next:

  • Product Model

    JL-242C

    Rated Voltage

    110-277VAC

    Applicable Voltage Range

    90-305VAC

    Rated Frequency

     50/60Hz

    Rated Loading

    1000W Tungsten, 1800VA Ballast, 5A e-Ballast

    Power Consumption

    1.2W Average

    On/Off Level

    50 Lx

    Midnight Dimming

    Yes

    Time Delay

    10 seconds

    Surge Protection

    640 Jolue/4000 Amp

    Ambient Temp.

    -40℃ ~ +70℃

    Related Humidity

    99%

    Overall Size

    84(Dia.) x 66mm

    Weight Approx.

    200 grs

    IP Protection

    IP65
