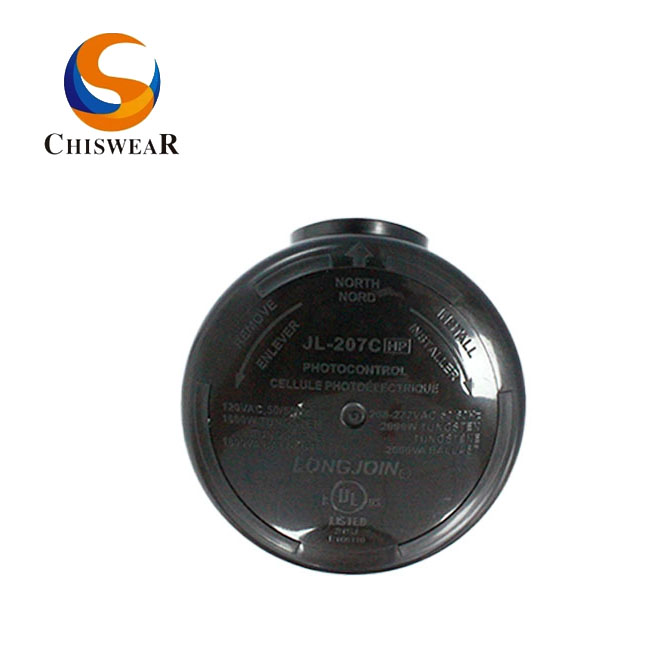

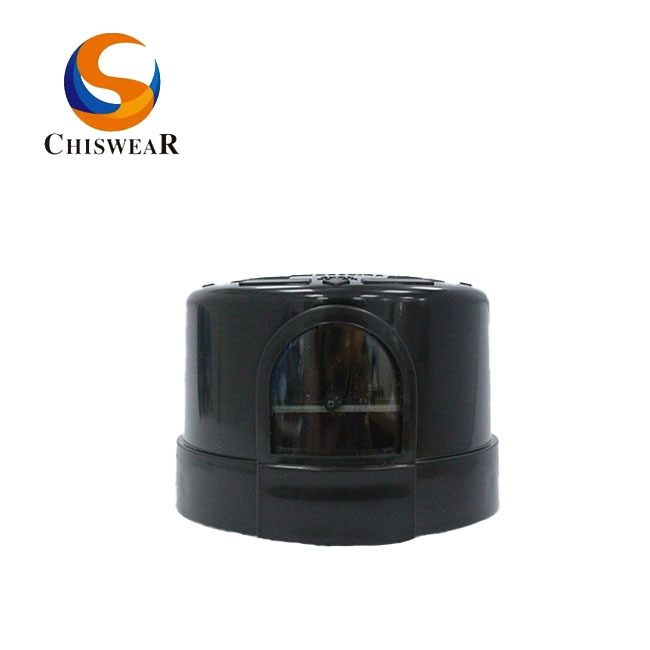

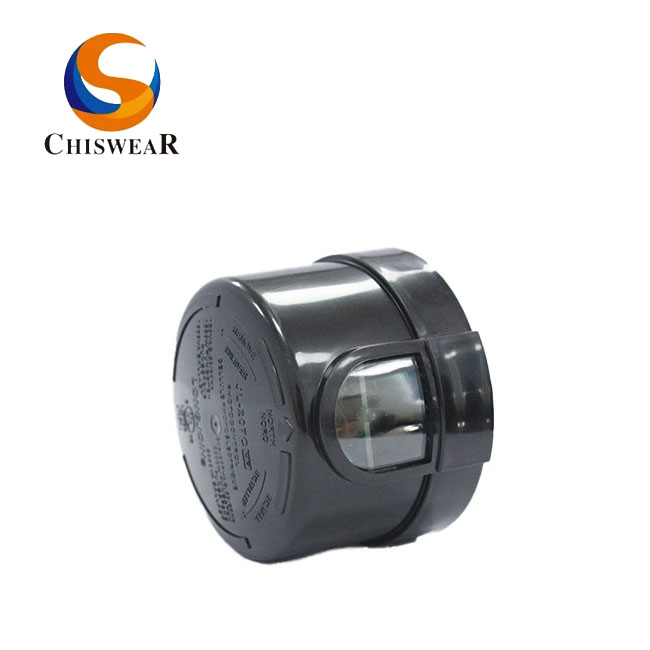

The model custom series photocontrol sensor is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.
Customize Parameter
1. Designed with electronic circuits with sensor of photodiode and a surge arrester (MOV)
2. 3-5 seconds time delay response for easy-to-test and Avoid sudden accidents(spotlight or lightning) affecting normal lighting at night.
3. Wide voltage range(105-305VAC) for customer applications under almost power supplies.

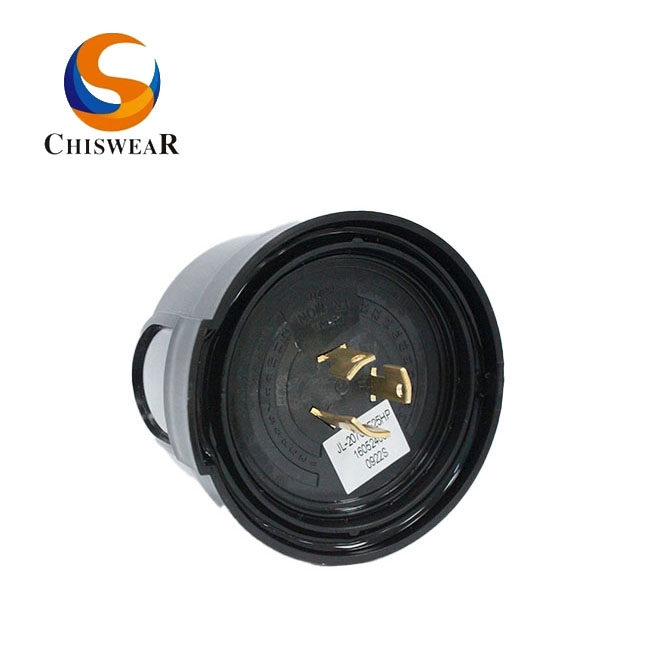

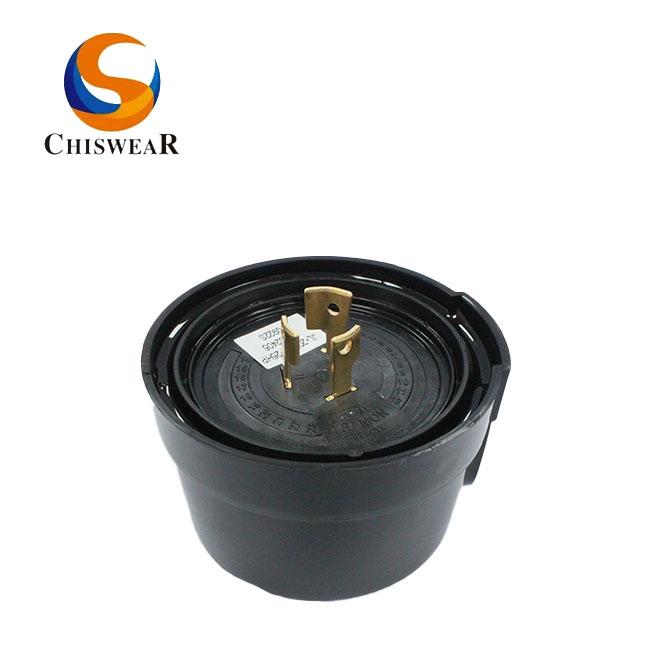

4. Twist lock terminals meeting the requirements of ANSI C136.10-1996 Standard for Plug-In, Locking Type Photocontrols for UL733 Certificated.
5. Relay options for available current flow range: 10Amp, 20Amp;
6. if you should need more sensitively LDR resistance value to automatic on / off control light fixture to control turn on at dusk and turn off at dawn. then we can customized according to your requirement about lux level.
7. Enclosure color: blue, gray, green,black etc
| Product Model | available your requirement by customize |
| Rated Voltage | Customize |
| Applicable Voltage Range | customize |
| Rated Frequency | 50/60Hz |
| Rated Loading | 1000W Tungsten;1800VA Ballast |
| Power Consumption | factory default |
| On/Off Level | your requirement by customized |
| Ambient Temp | -40℃ ~ +70℃ |
| Related Humidity | 99% |
| Overall Size | 84(Dia.) x 66mm |
| Enclosure Color | blue, gray, black, green etc |
| Relay Options | 10Amp, 20Amp |
| Sensor type | 1.Cadmium Sulfide Photocell2.IR Filtered Phototransistor3. Unfiltered Phototransistor |
| MOV Options | 12-110Joule / 3500Amp15-235Joule / 5000Amp23-460Joule / 10000Amp25-546Joule / 13000Amp |
| IP Rating | IP54,IP65,IP66 |
