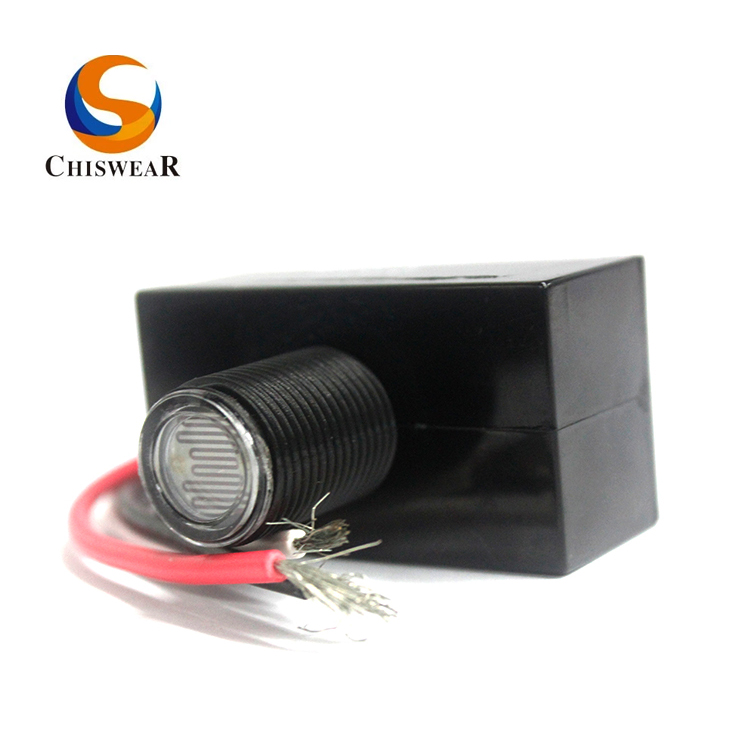

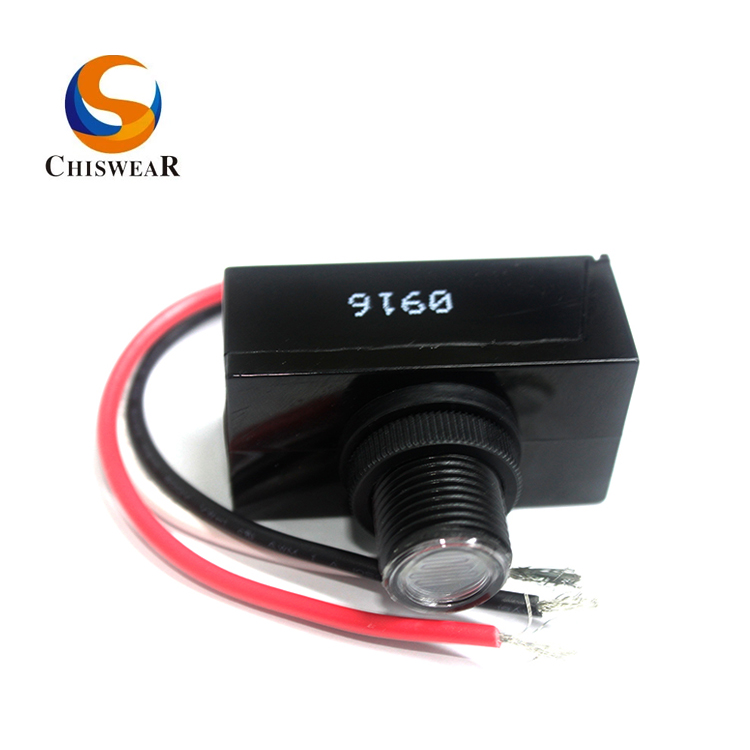

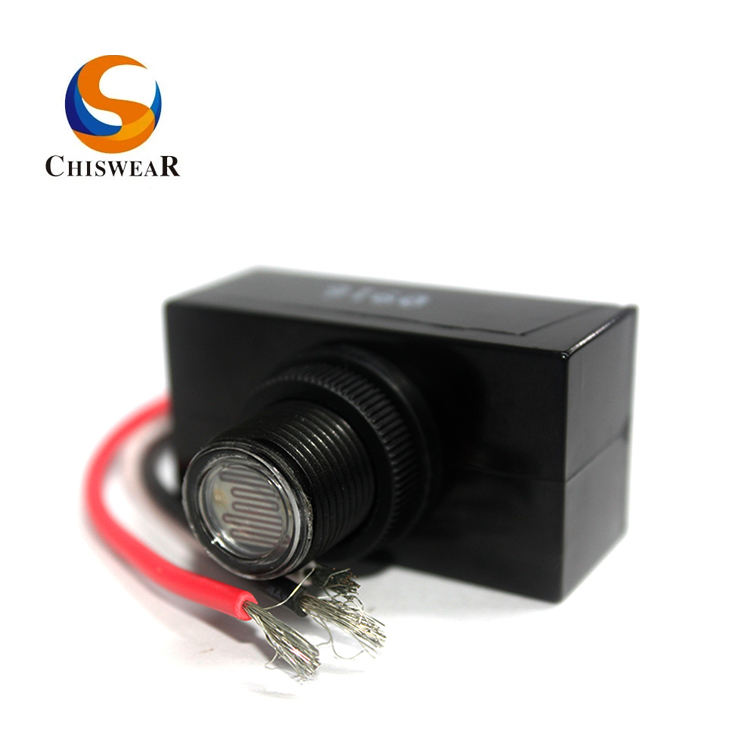

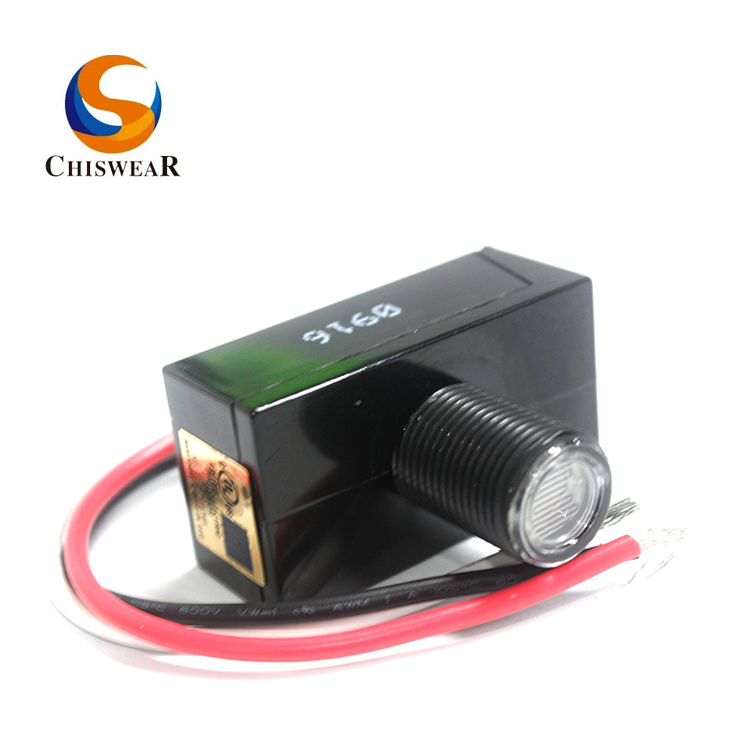

120VAC Photo Cell Sensor Control JL-103A

Short Description:

1. Product Model: JL-103A
2. Rated Voltage: 120 VAC
3. On / OFF Lux Level: 10-20 Lx on; 30-60 Lx off
4. IP Rating: IP54
5. Compliant Standard: CE, ROHS, UL

Send email to us Download as PDF

Product Detail

Product Specification

Available Fitting

Get Detailed Prices

Product Tags

The photoelectric switch JL-103Series is applicable to control the street lighting, garden lighting, passage lighting and barn lighting automatically in accordance with the ambient natural lighting level.

Feature
1. Convenient and easy to install.

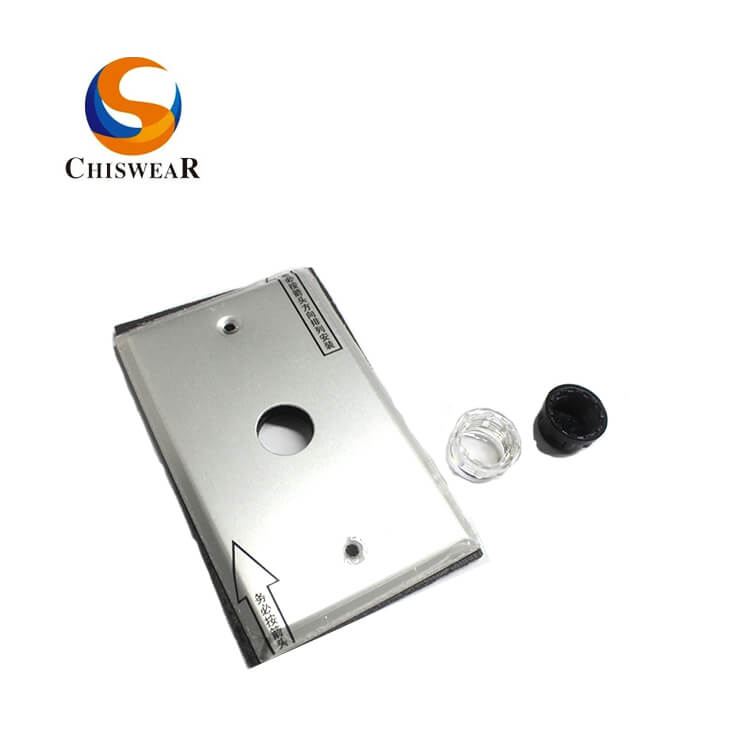

2. Standard Accessories: aluminum wall plated, waterproof cap(Optional )
3. Wire gauge Classifications:
1) standard wire: 105℃.
2) High temperature wire : 150℃.

Previous: Screw In E26/E27 Lamp Holder With Photo Controller JL-303A

Next: JL-205C Photocell Sensor Accessories Heat Dissipation Shell Enclosure

Product Model	JL-103A
Rated Voltage	120VAC
Rated Frequency	50-60Hz
Related Humidity	-40℃-70℃
Power Consumption	1.2VA
Operate level	10-20Lx on, 30-60Lx off
Body Meas（mm）	52.5(L)29.5(W)42(H)
Lead lengths	180mm or Customer request;
