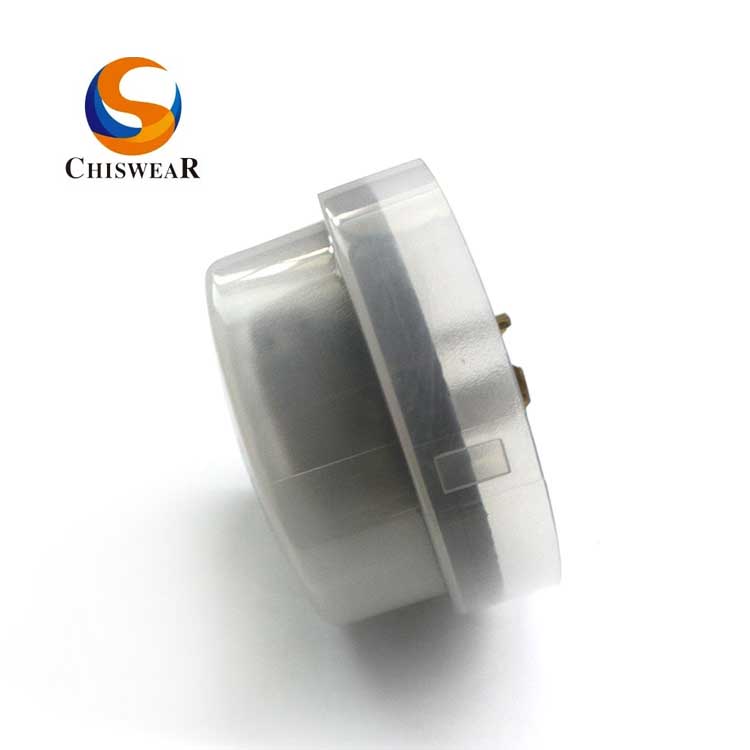

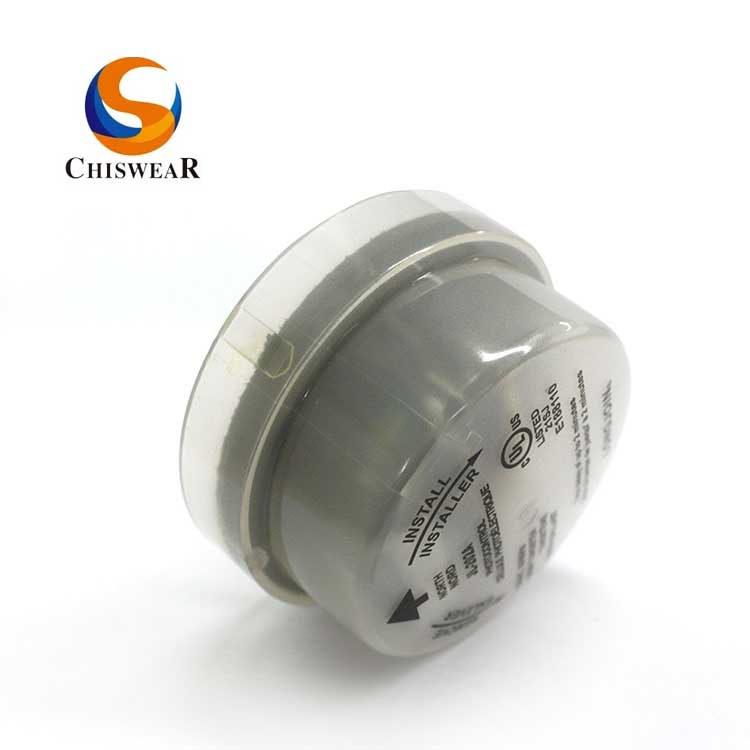

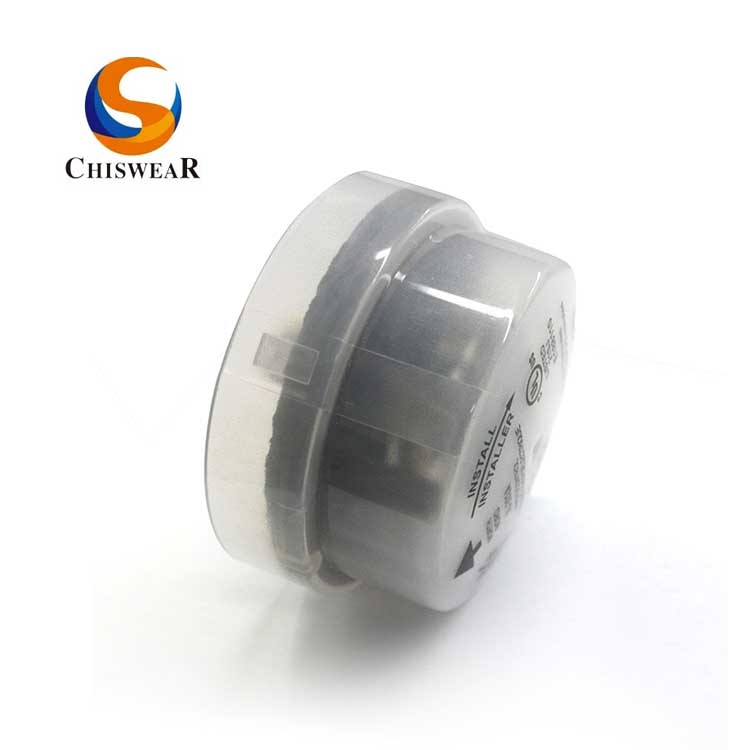

The photocontroller JL-202 series is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.
Feature
1. Thermal – bimetallic structure.
2. Time delay over 30 seconds to avoid mis-operation due to spotlight or lightning during the night time.

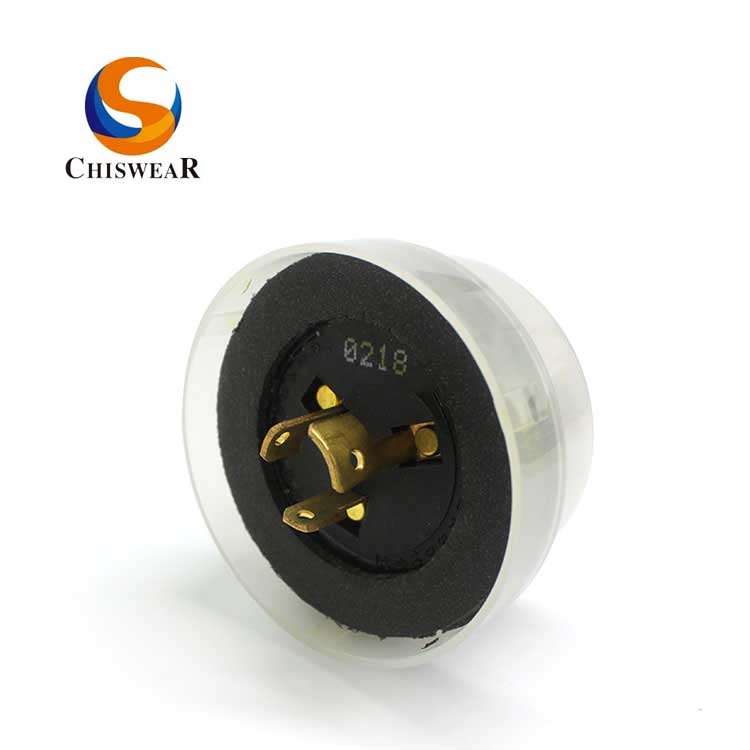

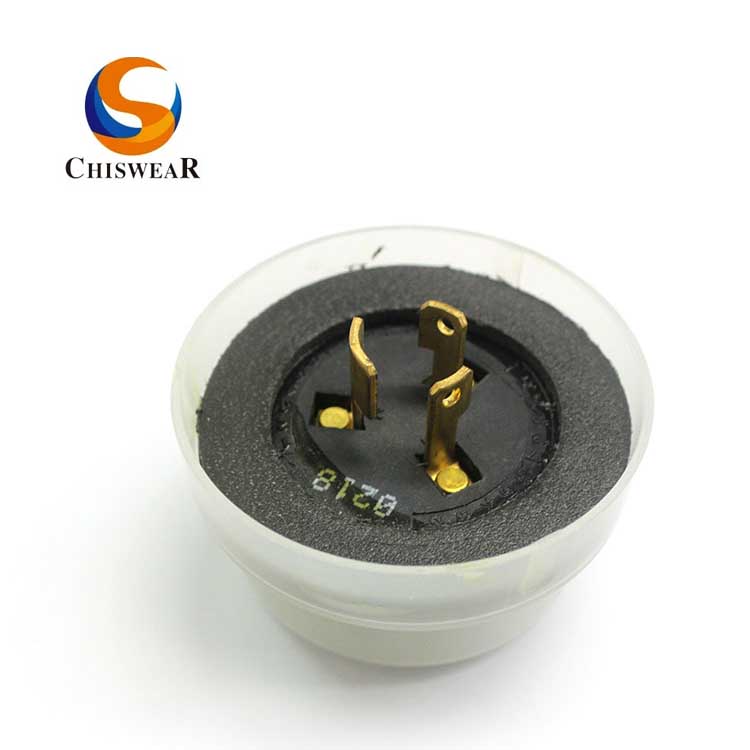

3. This product provides three twist-lock terminals meeting the requirements of ANSI C136.10-1996 and the Standard for Plug-In, Locking Type Photocontrols for Use with Area Lighting UL773.
|
Product Model |
JL-202A |
|
Rated Voltage |
110-120VAC |
|
Rated Frequency |
50-60Hz |
|
Related Humidity |
-40℃-70℃ |
|
Rated Loading |
1800W tungsten 1000W Ballast |
|
Power Consumption |
1.5W |
|
Operate level |
10-20Lx on, 30-60Lx off |
|
Overall dimensions(mm) |
Null: 74dia.x 50 (Clear) / M: 74dia.x 60 / H: 84dia.x 65 |
|
Swivel Meas |
85(L) x 36(Dia. Max.)mm; 200 |
